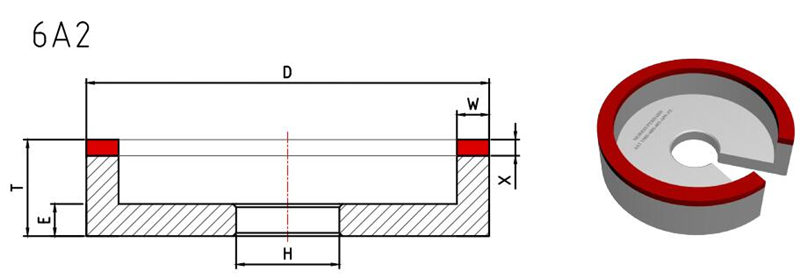

6A2 Diamond Grinding Wheel
Application of 6A2 diamond grinding wheel: grinding PCD and PCBN tools, glass, ceramics, quarts, semi-conductors, and other non-metallic materials.
|
Model |
D (mm) |
T (mm) |
H (mm) |
W (mm) |
X (mm) |
|
6A2 |
100 |
40 |
32, 40 |
3, 5, 10, 15, 20 |
10 |
|
125 |
40 |
32, 40 |
5, 10, 15, 20 |
10 |
|
|
150 |
40 |
32, 40 |
5, 10, 15, 20 |
10 |
|
|
Other size can be made according to customers requirement. Email: [email protected] |
|||||
