6A2 Diamond Wheel for PCD Saw Blades6A2 Diamond Wheel for PCD Saw Blades6A2 Diamond Wheel for PCD Saw Blades
6A2 Diamond Wheel for PCD Saw Blades6A2 Diamond Wheel for PCD Saw Blades6A2 Diamond Wheel for PCD Saw Blades

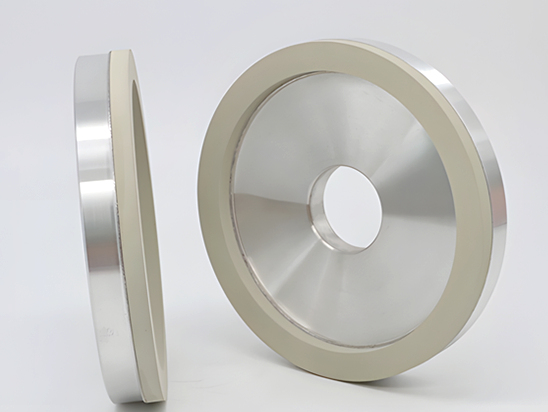

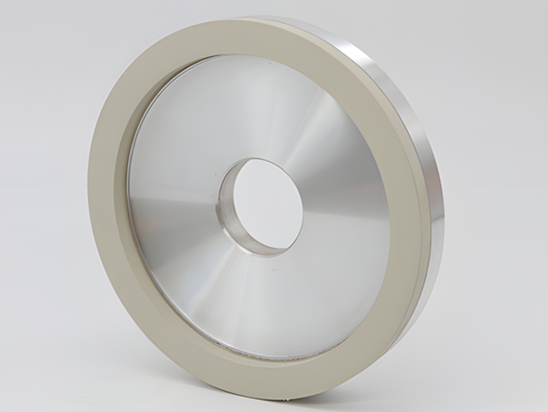

6A2 Diamond Wheel for PCD Saw Blades

Application: used for grinding PCD saw blades on VOLLMER grinder

Excellent performance ratio

High material removal rates

Reduced grinding forces

Product Details



Description:
We supply Diamond and CBN grinding wheels to the saw blade industry. Widely used for face grinding, top grinding, flank grinding, hollow tooth grinding and re-sharpening for tungsten carbide tipped saw blades and one-piece HSS saws.

Advantages:
1.Excellent performance ratio
2.High material removal rates
3.Reduced grinding forces

Drawing&Specification

Shape

D (mm)

W (mm)

H (mm)

X (mm)

More Super Hard Products Co., Ltd

4A2  Face Grinding

100

5

25

2

125

6

20

4

More Super Hard Products Co., Ltd

12V2  Face Grinding

125

4

32

2

200

4

32

2

Shape

D (mm)

X (mm)

H (mm)

U (mm)

More Super Hard Products Co., Ltd

12V9  Face Grinding

100

2,3

25

4

125

2,3

25,32

4

150

2,3

32

4

200

2,3

32

4

Shape

D (mm)

W (mm)

H (mm)

X (mm)

More Super Hard Products Co., Ltd

6VV5 Top Grinding

100

5

25

10

125

5

32

10

Shape

D (mm)

X (mm)

H (mm)

U (mm)

More Super Hard Products Co., Ltd

14M1 Top Grinding

150

5

32

8

200

5

32

8

Shape

D (mm)

W (mm)

H (mm)

X (mm)

More Super Hard Products Co., Ltd

4A9 Flank grinding

80

5

32

4

86

5

32

4

100

4,5

32

4

Shape

D (mm)

T

(mm)

X

(mm)

Y

(mm)

L

(mm)

More Super Hard Products Co., Ltd

1A1W Hallow Tooth Grinding

6.5

3

1.75

6

42

7

3

2

6

42

Shape

D (mm)

U

(mm)

X

(mm)

R

(mm)

H

(mm)

T

(mm)

J

(mm)

More Super Hard Products Co., Ltd

14F1 Initial Profiling and Re-sharpening

200

1.3

6.5

0.65

32

8

169

1.6

7

0.8

32

8

164

2

8

1

32

8

164

2.5

8

1.25

32

8

159

3

10

1.5

32

8

160

4

12.5

2

32

8

157

     * other size can be customized
