Rotary Diamond Dresser
Rotary Diamond Dresser
Rotary Diamond Dresser

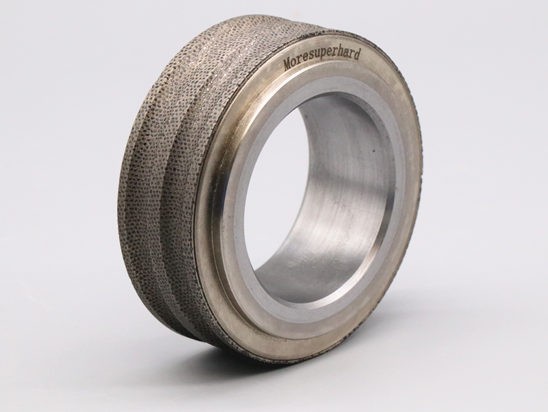

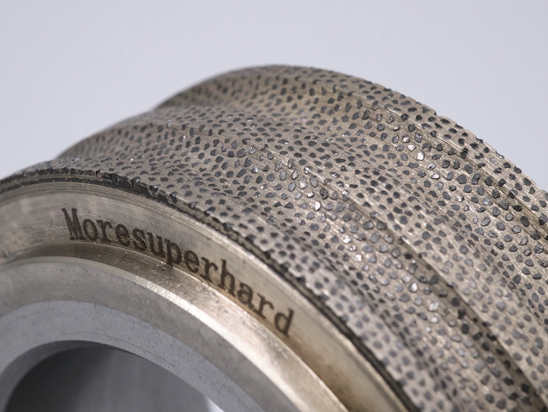

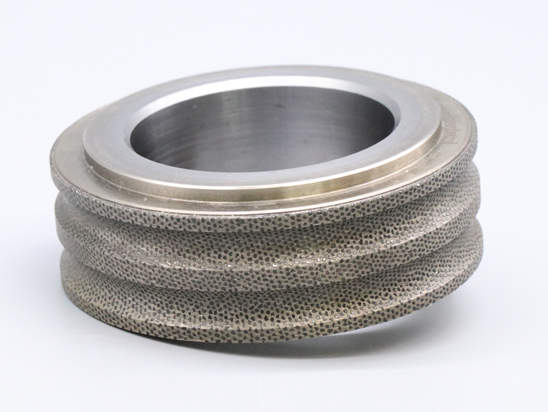

Rotary Diamond Dresser for Ceramic Wheel Dressing

High production efficiency, long service life and low cost of dressing of individual parts.

It can maintain the stability of parts precision and the high qualified rate of products for a long time.

For some parts whose complex surface or other imitation dressing is difficult to meet the requirements, the Rotary dresser can obtain satisfactory results.

Easy to operate.

High utilization of CNC machine , easy to achieve automation and mass production.


Product Details

Description of Rotary Diamond Dresser
The Rotary dressers is an advanced forming wheel and honing wheel dressing tool with high correction efficiency and can trim complex shaped grinding wheels that cannot be completed by other dressing methods.
Due to the high precision and long life of the roller, the quality of the ground workpiece is stable and consistent, and the best economic benefits can be obtained in mass production.

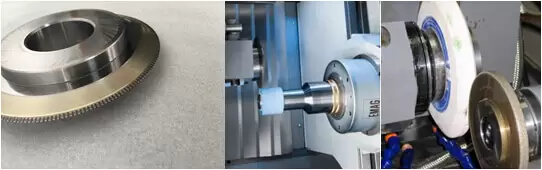

Application of Diamond Dressing Roller
For dressing grinding wheels used for Automobile engine, machinery industry, robot parts, flute dresser, turbine blade, automobile valves, crankshafts, sewing industry, turbine blade – fir tree root form, cam Grinding, bearing industry, ball joints, needle injectors.

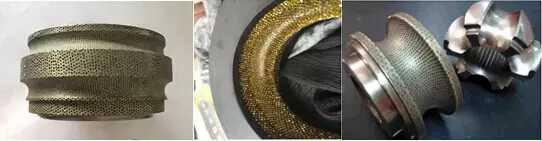

Types of Diamond Rotary Roll
Contrail CVD sintered dressers:
CVD sintered dressers
The basic principle is to change the original single point of the original diamond dresser into rotary dresser trimming, which is divided into swing type and fixed type according to the dressing tool dressing method.
Most of the common ones are fixed, and they are moved and trimmed according to a certain trajectory to repair the partial surface.
Application: Automobile engine,Machinery industry,Robot parts ,Vitrified CBN wheel,Flute dresser

Hand setting dressers:
Hand setting dressers
Here selected diamonds are applied to the negative profile by hand using an adhesive and in accordance with a defined pattern.
By varying the distances between the diamond grits, it is possible to achieve the optimum arrangement of diamonds needed to ensure the required surface finish later in the workpiece.
Application: Turbine Blade,Automobile Valves,Crankshafts,Sewing industry.

Reverse Plated Dressers:
Reverse Plated Dressers:
The diamond grit size, selected to correspond to the smallest convex profile radius, subsequently determines the surface finish of the workpiece to be ground so that small radii and relative coarse surface qualities do not correlate.
Here the diamonds are packed next to each other as densely as possible in a stochastic distribution.
This is beneficial for the tool life of the roll but also leads toincreased dressing forces.
Application: Turbine Blade – Fir Tree Root Form,Cam Grinding,Bearing Industry,Ball Joints,Needle Injectors.

Commonly Suitable CNC machine:
Holfer, Gleason-Pfauter, Kapp-Niles, Reishauer, Meccanodora, Samputensili, Cinetic Landis, Toyoda

Drawing&Specification

Performance Characteristics Of Rotary Diamond Dresser

Runout (mm) Linearity

(mm)

Cylindricity

(mm)

Plainness flatness evenness

(mm)

Profile tolerance

(mm)

Dimension tolerance of length and step difference Dimension tolerance of radius Angular tolerance
0.004-0.002 0.005-0.002 # 0.005-0.002 0.005-0.002 0.005-0.002 L ± 0.004-0.002mm R ± 0.004-0.002mm A ± 2

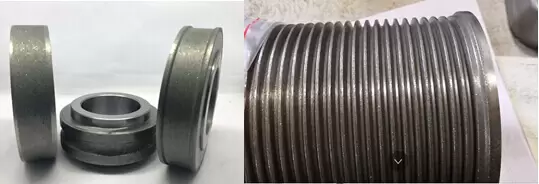

Rotary Diamond Dressers Are Divided Into Profile And Form Rolls
depending on the type of abrasive layer profiling

Diamond Profile Dressing Rolls Diamond Profile Dressing Rolls

* Profiling of the grinding wheel along the desired contour by moving the diamond dressing roller

* The profile of the grinding wheel is created by a CNC controlled process that moves the rotating form roll along the target contour

* Form rolls are not restricted to a specific workpiece but can be used flexibly

Diamond Form Dressing Rolls Diamond Form Dressing Rolls

* Profiling of the grinding wheel in only one operation using the plunge-cut dressing method

* Usually the profile of the roll corresponds precisely to that of the workpiece

* Extreme accuracy, even with highly complex profile contours
