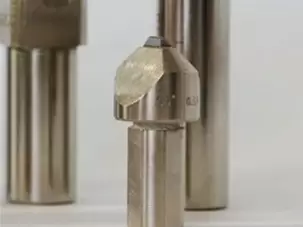

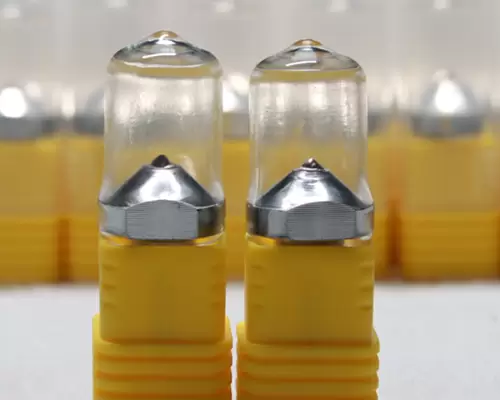

Single Point Diamond Dresser, Diamond Dressing Tools for Grinding Wheel
Turning and dressing straight type conventional abrasive wheels

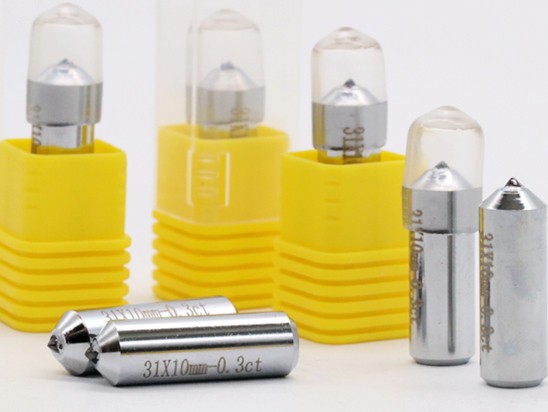

Diamond size: 0.1 ct, 0.5 ct, 1 ct, 1.5 ct, 2 ct, 2.5 ct, 3.0 ct, etc

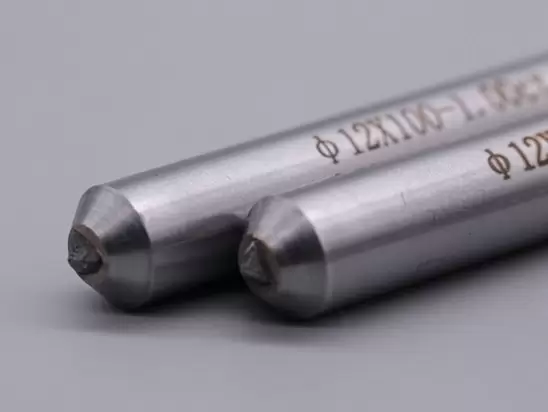

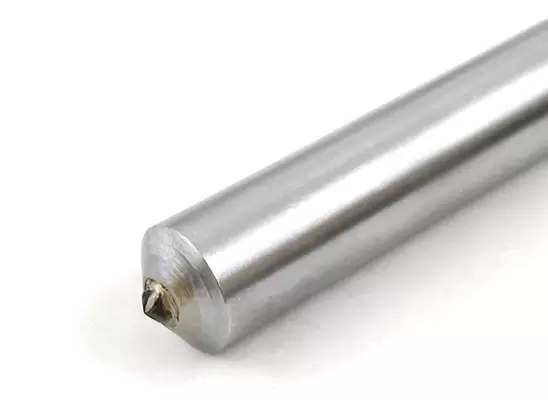

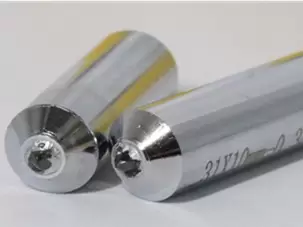

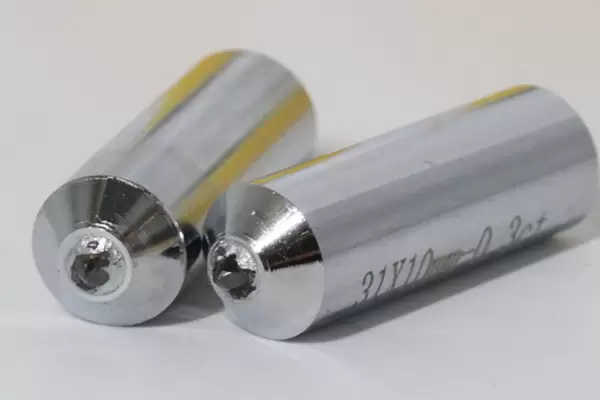

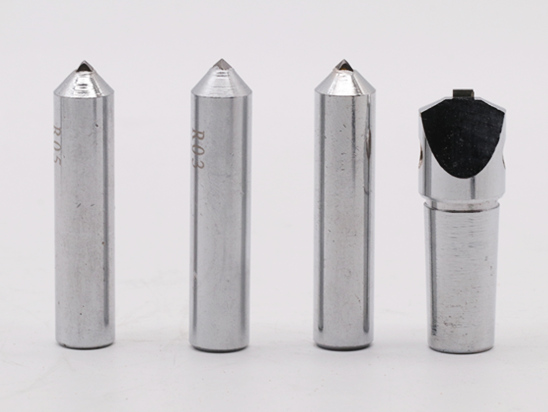

Single Point Diamond Dresser is made with natural diamond and synthetic materials like CVD, PCD and MCD, in various shapes shank for straight or form dressing.

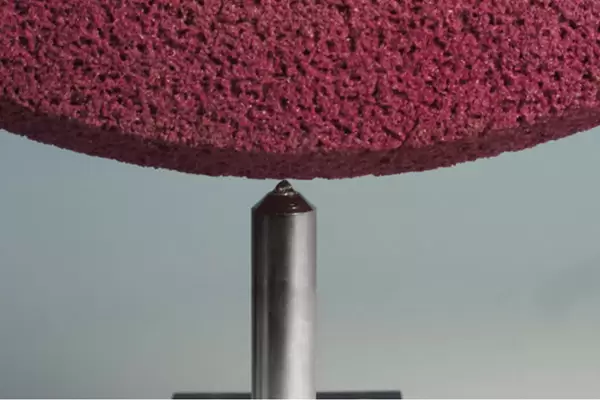

Single point diamond dresser is used for dressing and turning straight type conventional abrasive wheels (dressing ceramic abrasive SG grinding wheels, simple profiles, thread and gear grinding). The widely used in gear grinding, bearings, auto parts, textile machinery, aerospace and other fields.

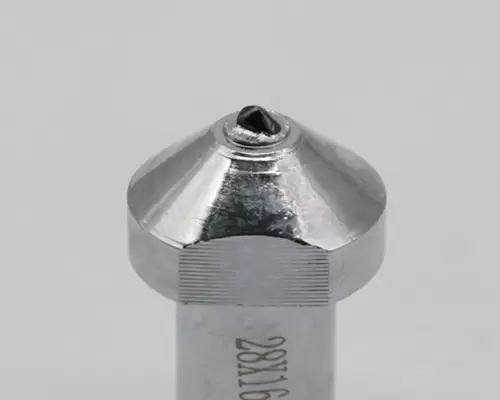

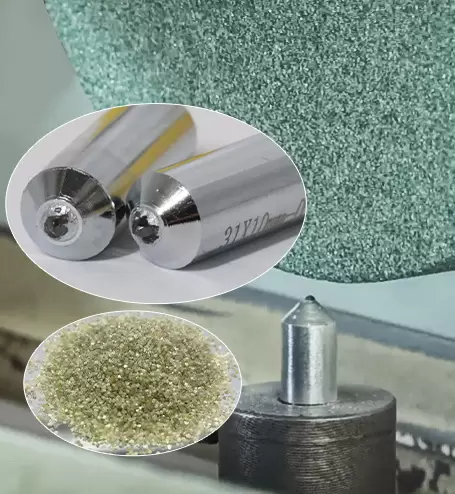

Indexable single point diamond dresser
Indexable tools are specifically designed to alleviate any misalignment issues and are the choice for CNC grinders. Indexable single point dresser has a two-part construction with the head and shank as separate pieces. After the initial installation, when the tool shank remains secure (and aligned) in the tool holder, operators only need simply turn the indexable head with a wrench.
Features of indexable single point diamond dresser:
* Easily turned without removing tool from the holder
* Long life, less downtime and increased productivity
* Excellent choice for regulating wheels
Guideline of using single point dresser :
Be careful when installing diamond dressers in position, the dresser must be clamped rigidly in place to avoid vibration once start dressing.
Adequate coolant should be provided at the diamond point before dressing begins, as the sudden application of coolant to the diamond once diamond has heated up will cause it to shatter.
The diamond holder should not be set directly on the center of the grinding wheel, but at an angle of 5-15 to the direction of rotation of the wheel.
Adjust cutting depth of dresser in time(The cross feed rate is dependent upon grit and can have influence on the quality of the grinding wheel surface finish):
-The maximum depth of cut achieved per dressing pass is 0.03 mm
-On fine grit wheels, approximately 0.005-0.01 mm
The lower the feed rate, the finer the surface finish.

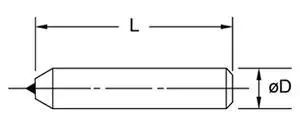

φD | L |
6 | 25 30 |
8 | 25 30 40 50 100 |
10 | 40 50 100 |
11 | 35 40 50 60 100 |
12 | 40 50 100 |
Other size diamond dresser can be design according to customers’ drawing |
