Forming diamond dresser
Forming diamond dresser
Forming diamond dresser

Forming diamond dresser

Dressing specific forms into conventional abrasive wheels

Two types of forming diamond dressers: chisel type and cone type

Diamond Angle: 40-75 °

Diamond radian: R0.05-R0.5

Applicable grinding machine: CNC cylindrical grinding machine, centerless grinding machine,etc…

Grinding accuracy: fine grinding within Ra0.4

Diamond avaliable: MCD, CVD, PCD

Product Details

Moresuperhard selects natural diamond and processes diamond into suitable angles and radians through professional cutting, grinding and grinding processes. Moresuperhard is widely used in shaping and dressing of grinding wheels of various CNC cylindrical grinding machines and centerless grinding machines.

Forming diamond dresser is to dress form grinding wheel of grinding machines for angular grinding, diamond form grinding,stepping cylindrical grinding, thread grinding and etc. Can match different CNC grinding machine, centerless grinding machine, gear grinding machine, and can customize according to your requirements.

Forming diamond dresserForming diamond dresser

Application of forming diamond dresser
* Dressing specific forms conventional abrasive wheels(formingarc, angle, groove radius and other complex profiles) .
* For precision grinding machine(angle, curvature, cylindrical, groove, stepping, thread grinding).
* Precision forming for aviation, bearings, crankshafts, piston rings, electronics, instruments
* Trimming of high-precision grinding wheels such as watches.

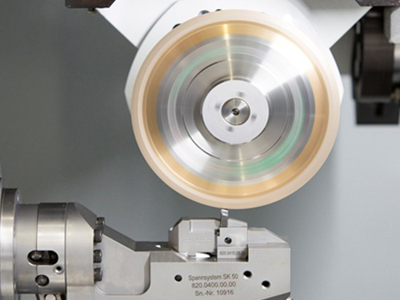

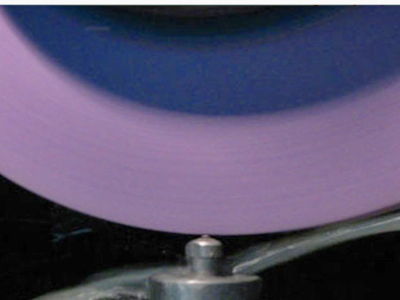

Match grinding machine
Forming diamond dresser mainly used for dressing different shaped grinding wheels of various ordinary CNC cylindrical end face grinding machines, crankshaft grinding machines and gear grinding machines.

Forming diamond dresser Forming diamond dresser

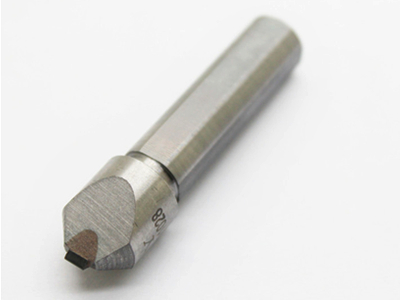

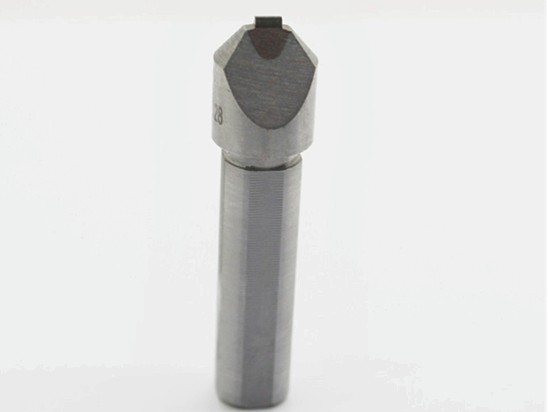

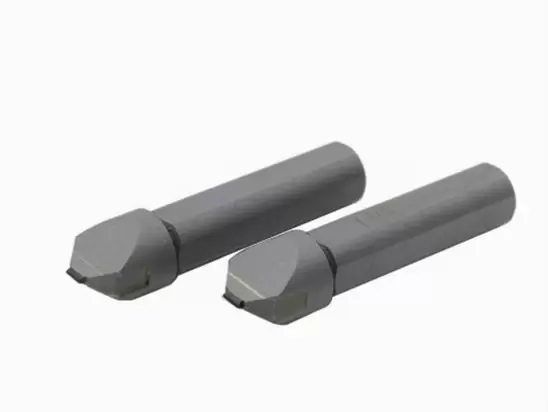

Features of wedge-shaped diamond dresser:
1. Dressing all kinds of forming grinding wheel arc surface, avoid diamond dressing grinding wheel arc surface edge, wedge diamond Angle has V (40 degrees, 55 degrees, 60 degrees, 70 degrees, etc.). The top width of the diamond is A (about 1.5 to 3.5mm).
2. High-quality natural diamond forming dressers(tip angle and radius are ground with high precision grinding after fix crystal direction ).
3. The diamond angle is sharp and wear-resistant, ensuring that the surface roughness of the workpiece processed by the grinding wheel is within Ra0.4.
4. Wedge-shaped diamond sharpening surface can be refurbished after 1mm2 wear, so as to reduce the cost and be economical.
5. Wedge-shaped diamond is treated with negative Angle to strengthen the edge strength of diamond.


Working points Top Angle and two edges
Outside diameter range of dressing grinding wheel 500mm
Thickness range of dressing wheel 150mm
Suitable grinding wheel size grit 60#-180#
Suitable for grinding wheel Corundum/ silicon carbide grinding wheel
Suitable grinder End face /cylindrical grinder, CNC crankshaft grinder, gear grinding machine
Single dressing feed 0.002mm
Single dressing feed Ra0.8-0.1 μm
Suitable grinding mode Fine grinding
Grinding wheel linear velocity 35m /s-75m/s
Applicable industry Auto parts processing, mold manufacturing, gear manufacturing processing

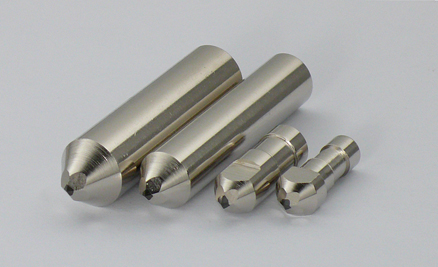

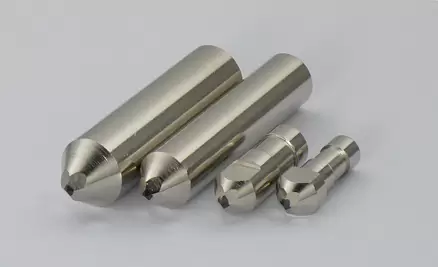

Cone type forming diamond dresser

Width of diamond 1.5—3.5mm
Height of diamond(B) 1.0—2.0mm
 Angle of diamond(V) 40—70°
Radius of diamond(R) R0.05—1.0
