1A1R Diamond Cutting Wheel
Diamond cutting wheel also called Ultra thin diamond cutting wheel
Application: cutting carbide, glass, ceramic, optical glass, semi - conductor, quartz, QFN, ultra hard steel and metals, etc
Diameter : 5" (125mm), 6" (150mm), 7" (180mm), 8" (200mm), 10" (250mm), 12" (300mm), 14" (350mm), 16" (400mm).
Thickness : 0.3mm - 2.0mm
Tolerance: +-0.005mm

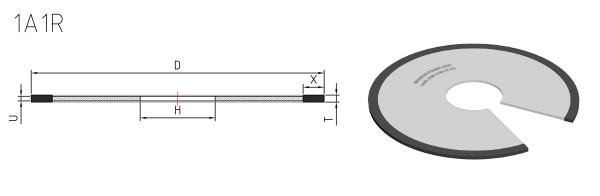

Diamond cut off wheels (1A1R)
* For cutting carbide, glass, ceramic, sillicon, quartz, glass fiber plastics (GRP), graphite, QFN and ultra hard steel, etc
CBN cut off wheels
* For cutting hardened steel, cast iron, HSS, magnetic materials, bearing steel and mould steel, etc
|
D(mm) |
T(mm) |
U(mm) |
H(mm) |
X(mm) |
|
4” /100 |
1 |
0.8 |
31.75 |
10 |
|
5”/ 125 |
1 |
0.8 |
31.75 |
10 |
|
6”/ 150 |
0.8 / 1 |
0.6 / 0.8 |
31.75 |
10 |
|
8”/ 200 |
1 |
0.8 |
31.75 |
10 |
|
12”/ 300 |
1 / 1.5 |
1.3 |
31.75 |
10 |
|
16”/ 400 |
2 |
1.8 |
31.75 |
10 |
