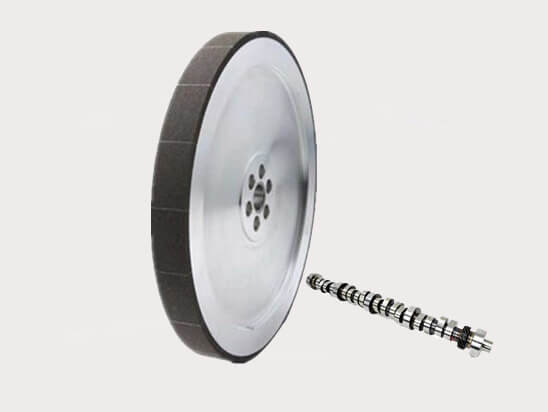

Vitrified CBN Wheel for finishing grinding cam lobes Camshaft
Model: 120 * 15 * 66 *（21+17)
Workpiece: finish grinding cam lobes of camshaft
Grinding Machine: Toyota (JKT)
High precision and good surface quality
High adhesion strength
Excellent performance
Reduced grinding forces
Easy dressing
Product Details

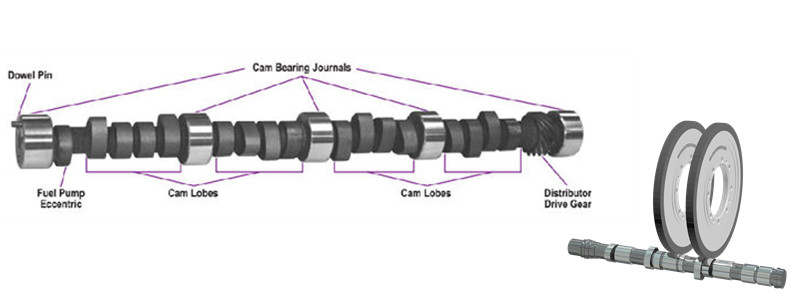

Vitrified CBN grinding wheel is mainly used for grinding cam lobes of camshafts ( automobilemotorcycle, diesel, gasoline etc). Material includes cast iron, carbon steel, alloy steel, bearing steel etc. Suit for grinder like Japan Toyota, German Junker and Schaudt etc
Drawing&Specification

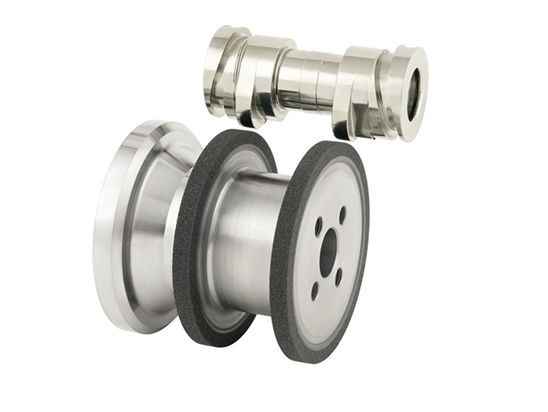

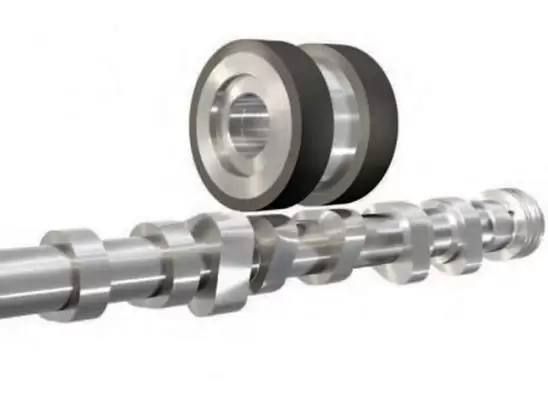

The case of double ends vitrified cbn wheel for grinding cam lobes of camshaft
| Model/ Size | 120*15*66*（21+17) Double ends vitrified bond CBN grinding wheel | |
| Grinding Machine | Applicable Grinding Machine | Toyoda (JKT） |
| Workpiece | Workpiece | Cam lobes of camshaft |
| Workpiece Material | GCr15 | |
| Hardness of grinding layer | HRC58-62 | |
| Grinding allowance | Diameter: 1.2mm Rough grinding (Φ0.99mm, speed 0.08mm/r) Semi-finishing( Φ0.11mm, speed 0.03mm/ r) Fine grinding (Φ0.02mm, speed 0.01mm/r) |
|
| Grinding Parameter | Wheel speed (m/s) | 72m/s |
| Roughness after grinding | Ra≤0.64 | |
| Grinding time | 66″ | |
| Dressing Parameter | Dressing Tool | Sintering diamond roller |
| Cooling Liquid
|
oil cooling | |
| Grinding Wheel Life | grind about 8750 pieces | |
