Diamond/CBN Double Disc Grinding Wheel for roughing and finishingDiamond/CBN Double Disc Grinding Wheel for roughing and finishingDiamond/CBN Double Disc Grinding Wheel for roughing and finishing
Diamond/CBN Double Disc Grinding Wheel for roughing and finishingDiamond/CBN Double Disc Grinding Wheel for roughing and finishingDiamond/CBN Double Disc Grinding Wheel for roughing and finishing

Diamond/CBN Double Disc Grinding Wheel for roughing and finishing

Application: carbide, tungsten steel, ceramic , optical glass, sapphire glass, high speed steel, bearing steel, tool steel, stainless steel and cast iron, etc

Bond: vitrified bond & resin bond

Diameter: 300- 1500mm

Advantages: Reduced cutting forces, Increased removal rates,  Increased precision,  Reduced disposal costs, Reduced machine downtime

Diamond & cbn shapes: cylindrical, hexagonal, square, segmented

Grinding machines: Wendt WBM, Viotoo, AMT, Stahli, Peter Wolters, Diskus, Agathon T&B, Fujisanki, Supfina, Melchiorre, Koyo, Lam Plan, Speedfam, Kemet, Gardner and other brands.

Product Details

Description of  Double Disc Grinding Wheel:

More SuperHard company offers a full line of diamond and CBN grinding wheels and dressing stones for fine grinding machines and single and double side lapping systems. Our vitrified diamond and CBN grinding discs have high grinding efficiency, high wear resistance and abrasive consumption, good surface quality and flatness of the workpiece.

As a company deeply ploughed in grinding, we can provide you suitable grinding solutions and suggestions according to your grinding application. Wish we can help you achieve real cost savings and increase productivity.



Advantages of Top and Bottom Grinding Wheels:

1.High grinding efficiency,Long service life and Good shape retention.

2. High strength synthetic diamond for high removal rates while excellent finish.

3. Sharp shape synthetic diamond for long dressing intervals.

4. Free cutting design for low cutting energy.

5. Better cutting edge with smaller chipping.

6. Good uniformity of size because the stable uniform structure and materials in abrasive layer.

7. High flatness, good finish, and parallemism.

8. Save your labor costs.



Applicable Areas of double discs:

Moresuperhard DDG Wheel - the first choice for economical and efficient batch grinding

 Moresuperhard double disc diamond grinding wheel can suitable for double face grinding of flat workpiece such as carbide inserts,CBN inserts, ceramic piece, ceramic valves, single crystal silicon, magnetic materials, precision bearing end face, piston ring, washer, caulking piece, precision measuring tool and cutting tool, compressor part, blade, rotor, stator, alloy coating brake disc, etc.

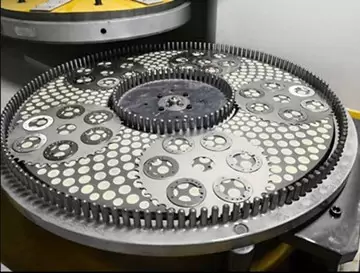

double disc grinding

♦ Hydraulic pneumatic components. vane pump, conversion valve, piston pump,fuel pump, hydraulic motor parts


♦ Compressor spare parts. air conditioner compressor vane, piston, Refrigerator compressor valve plate, cylinder block (grey cast iron or nodular cast iron), sleeve (alloy cast iron), slide (high speed steel)

♦ Engine parts. automobile fuel pump parts, booster pump parts,oil pump nozzle parts

♦ High precision shaft ,seal, watch parts, molds, carbide blade, ceramic valve core,magnetic materials,etc

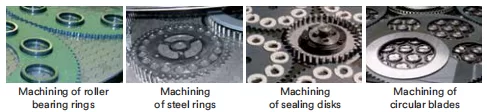

application of double disc grinding wheel


Various Layouts of double discs:
Shape of resin bond grinding segment: circular, straight segment (other shapes can be customized)
Shape of the vitrified bond grinding segment: regular hexagon, sector, square ,circular, trigonometrical, hexagonal pellets (other shapes can be customized)

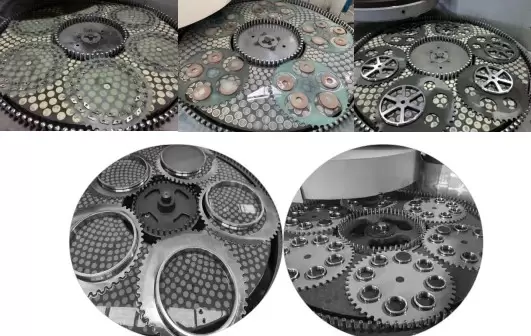

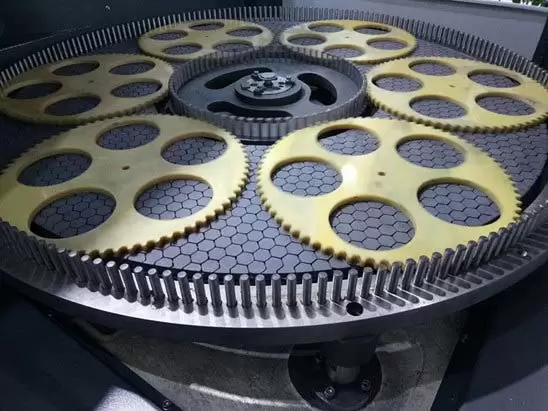

 various layouts of diamond double discs


Typical Grinding machine for double disc:
Wendt WBM, Viotoo, AMT, Stahli, Peter Wolters, Diskus, Agathon T&B, Fujisanki, Supfina, Melchiorre, Koyo, Lam Plan, Speedfam, Kemet, Gardner and other brands.

Vertical CNC precision double disc grinding machine specifications are quite a number of models, the common specifications are: 2MM84100, 2MM8470, and 2MM8463. These three models are common and often purchased by users.
Double disc grinding machine is mainly used for grinding two opposite planes of the workpiece, with high processing efficiency, high dimensional accuracy and high degree of automation, and is widely used in the automotive, hydraulic, gauging, sharpening, bearing, precision ceramic and other industries with typical processed part types.


Matching dressing grinding wheel
The dressing wheels are used for dressing diamond and CBN wheels. According to the different particle size, accuracy of the diamond and CBN grinding disc to choose the dressing wheel, making dressing easier and more time saving.

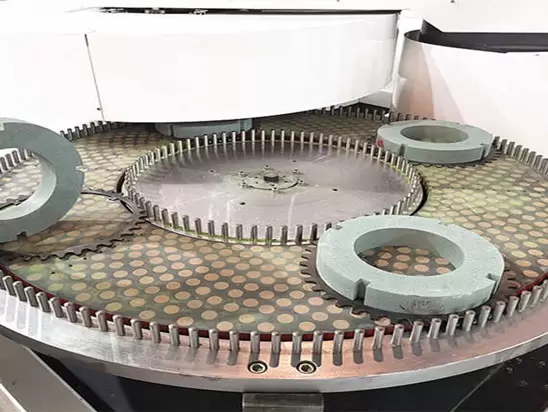

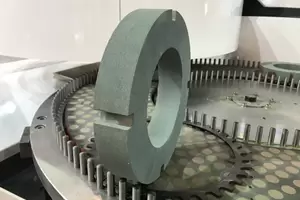

dressing grinding wheel  dressing grinding wheel

What is double disc grinding?

Double disc end face grinding technology is a must to find an efficient grinding solution to meet various requirements of the workpieces. A wide range of grinding tasks and a large variety of work, which require more precision and flexibility of grinding itself. The face grinding especially double face grinding is necessary.

 Double disc grinding(DDG), also called double face grinding, is a highly efficient method of removing equal stock from opposing faces of a part, normally symmetrical stock removal. The Double Disc Grinding process will also produce the highest level of Flatness and Parallelism on opposing surfaces.

Generally, Double Disc Grinding is used for high productivity however production rates can vary greatly from over 40,000 parts per hour to just a few parts per hour depending on the disc grinders tooling configuration, part size, material, and stock removal.

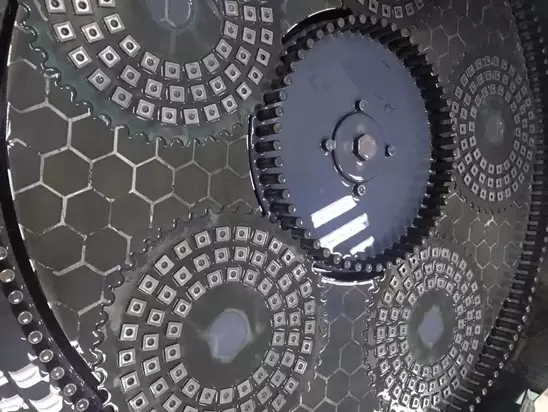

                                     double disc grinding

What brand of double sided grinding machine  have been successfully matched with  Moresuperhard double disc diamond grindinig wheel?

Moresuperhard double disc grinding wheel has been successfully matched with Peter Wolters, Speedfam, AMT, Stahli, Diskus, Agathon T&B, Fujisanki, Supfina, Melchiorre, Koyo, Lam Plan, Kemet, Gardner and other brands DDG grinding machine.

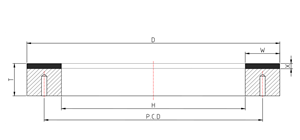

Drawing&Specification

Drawing

Specification

1A2T

    1A2T



D: 300mm - 1500mm

2A2T

2A2T

W(Abrasive layer width): 40mm - 350mm

6A2B

6A2B

X( Abrasive layer height): 3mm -10mm

Flatness:<=2μm, parallelism:≤ 2μm

Roughness: Ra0.02μm-Ra0.2μm
Durability: grinding HSS slide (25mm*25mm), the number of workpiece ≥ 1million
grinding carbide blade, the number of workpiece  ≥1million


Case 1 Connecting Rod Surface Grinding

diamond / cbn wheel



Workpiece material

nodular cast iron (45#, 40Cr, 40CrMo)

Hardness

210-280HB

grinding tolerance

Rough : 0.4 - 0.5

Fine: 0.2 - 0.4

surface finish

Ra 0.8

Size of grinding wheel

915* 85 * 304.8

Grinding wheel speed

35m/s

No burns or burrs





Case 2 Daimond Double-Disc Fine Grinding wheel for carbide seals

  Daimond Double-Disc Fine Grinding wheel


Application

Double-Disc Fine Grinding

Wheel sizes

Diamond 2A2T Ø720-30T-5X-320ID

Machine

Peter Wolters

Coolant

Oil

Wheel speed

120rpm

Work-piece speed

30rpm

Work-piece

Seals

Material

Carbide

Hardness

70HRC

Stock removal

0,1mm total

Cut rate

70µm/min

Roughness achieved

0,20 µm Ra

Flatness achieved

0,001mm

Parallelism achieved

0,001mm

Grit of diamond wheel

400 #

Cycle time

2,30 minutes



Case 3 Double disc grinding wheel for Air conditioning compressor baffle



  Double disc grinding wheel for Air conditioning compressor baffle                                   Double disc grinding wheel for Air conditioning compressor baffle

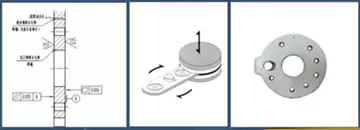

Air conditioning compressor partition drawings and work pieces                                    Double-disc grinding Machine



Grinding Results

Item



Customer

Compressor enterprise

Workpiece

Air conditioning compressor baffle

Hardness of workpiece

HRC45-50

Diameter

90mm

Grinding allowance

0.1mm

Thickness

10mm

Parallelism

0.005mm

Flatness

0.004mm

Roughness

Ra0.2

Beat

10.5s
