CBN Disc for Spring End GrindingCBN Disc for Spring End Grinding
CBN Disc for Spring End GrindingCBN Disc for Spring End Grinding

CBN Disc for Spring End Grinding

Grinding Wheel for Spring End Grinding

Workpiece of Spring: Spring steel, Stainless steel, High Carbon, Galvanized wire, Mild steel, high tensile Cr-Si

Spring grinding wheel: cbn grinding disc,  aluminum oxide and silicon carbide wheel

Product Details

Grinding is required if the spring is to stand straight, mate flush with a flat surface, exert a uniform pressure on a flat surface or maintain a more consistent length.Spring is crush fed in between two grinding wheels.

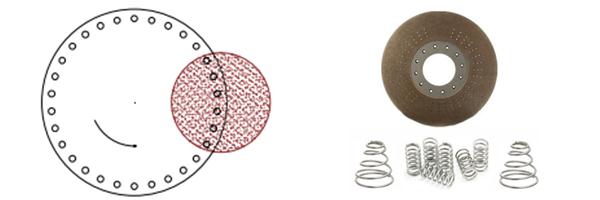

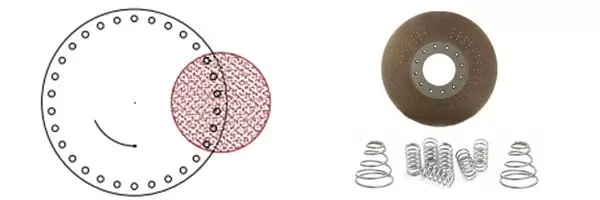

 It is important that the springs are carried across the entire face of the wheel. If the grinding wheels have a center hole, the springs should break into the center by approximately ¼ of the spring diameter. If the springs do cross the entire grinding wheel face, the wheel will not wear evenly and develop a high center. This will require frequent dressing and will cause problems keeping the springs square

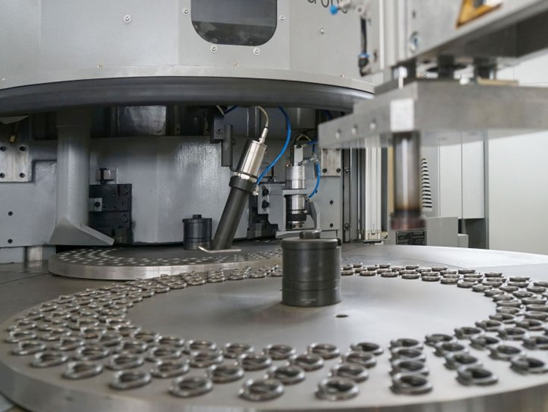

Spring grinding

Our company mainly produce Spring grinding wheels include,

* superabrasive CBN disc,

* aluminum oxide and silicon carbide, aluminum oxide grinding wheel.The commonly used grains for spring grinding are aluminum oxide and silicon carbide, aluminum oxide the common.

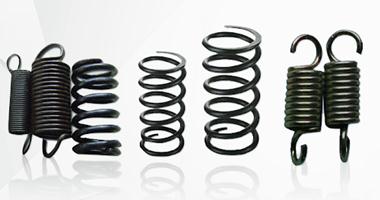

Workpiece Materials Of Spring

Spring steel, Stainless steel, High Carbon, Galvanized wire, Mild steel, high tensile Cr-Si

SPRING

Applicable Spring Grinder

Moyer,OMD, Wafios, Dorn, Herckelbout, Hack, Bamatec, Kamatech and Bennet Mahler,etc.

Drawing&Specification

The grit size of the grain is typically determined by the wire diameter. Generally, the following guidelines apply

Wire Diameter

Grit Size

010” to .025”

120 grit

.025” to .040”

60 or 80 grit

040” to .080”

24 or 36 grit

080” to .120”

 24 grit

 >.120”

16 grit

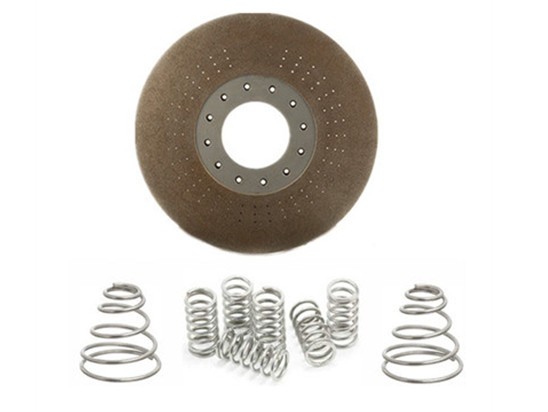

The case of cbn disc for Spring end grinding

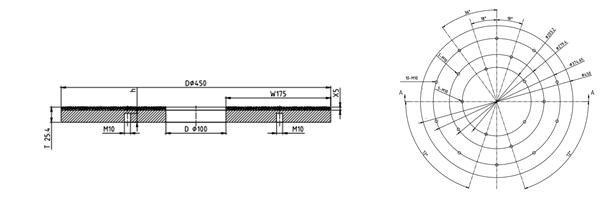

drawing of cbn disc for Spring end grinding

Bonded of wheel

Metal bond CBN Disc

Specification

16”450mm outside diameter

1”Backing plate thickness

8” Inner hole

CBN Grain Size

50 / 70

Workpiece of Spring

  high tensile Cr-Si

Wire dia

0.120-0.200”

   Rotation speed

50 m/s
