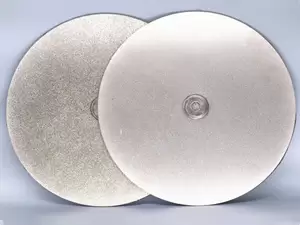

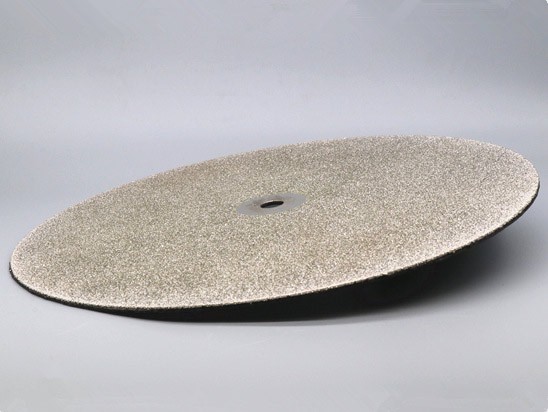

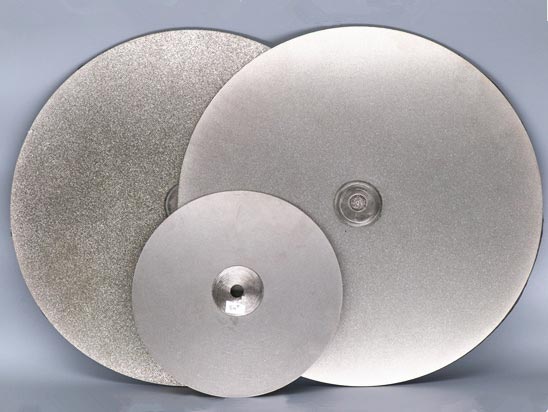

Electroplated Diamond Coated Flat Lap Disc Wheel
Electroplated Flat Lap Diamond Discs of Lapidary Tools
Lapping, Faceting Jewelry and Gemstones for Lapidary Work
Grit : 60, 80, 100, 150, 240, 320, 500, 600, 800, 1200, 1500, 3000, etc
Product Details
Diamond coated flat lap disc wheels lapidary are recommended for rough and fine grinding on faceting material. With high density diamond coating

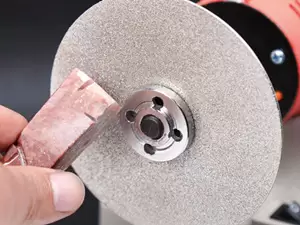

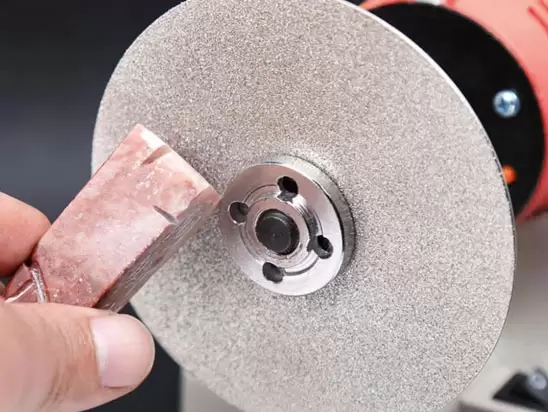

Applications of diamond coated flat lap disc
Lapping, faceting and grinding hard materials such as jewels and gemstones for lapidary work, glass, jade, tiles, ceramics, rock, crystal, agate, etc
Drawing&Specification
The specifications of diamond coated flat lap disc
| Outside Diameter (inch) | 4”, 6”, 8”, 10”, 12”, 14”, 16”, 18”, 24” |
| Arbor Hole (inch) | 1/2”, 5/8”, 1” |
| Thickness(mm) | 1 – 1.5 |
| Grit (#) | 60, 80, 100, 150, 240, 320, 500, 600, 800, 1200, 1500, 3000 |
| Maximum Speed (RPM) Rating | 2000 – 3000 RPM (6” and 8”)
1500 – 2000 RPM (12”) |
| Other sizes can be designd according to customers’ requirement | |
