#60 - #3000 Diamond Coated Flat Lap Disc Lapidary#60 - #3000 Diamond Coated Flat Lap Disc Lapidary#60 - #3000 Diamond Coated Flat Lap Disc Lapidary
#60 - #3000 Diamond Coated Flat Lap Disc Lapidary#60 - #3000 Diamond Coated Flat Lap Disc Lapidary#60 - #3000 Diamond Coated Flat Lap Disc Lapidary

#60 - #3000 Diamond Coated Flat Lap Disc Lapidary

#60 - #3000 Diamond Coated Flat Lap Disc Lapidary

Grit : 60, 80, 100, 150, 240, 320, 500, 600, 800, 1200, 1500, 3000, etc

High Quality Diamond Coating

Product Details

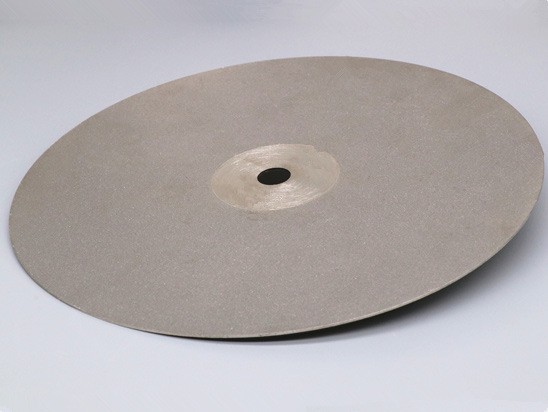

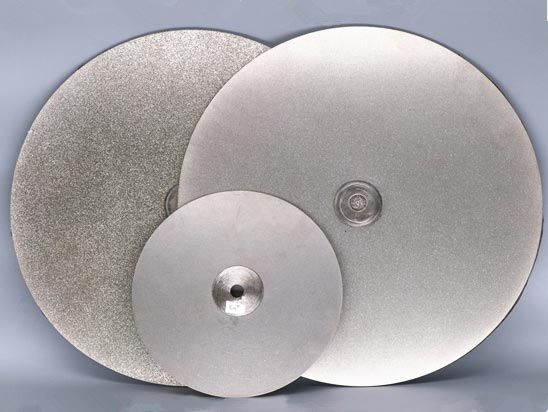

Diamond coated flat lap disc wheels lapidary are recommended for rough and fine grinding on faceting material. With high density diamond coating

Applications of diamond coated flat lap disc lapidary

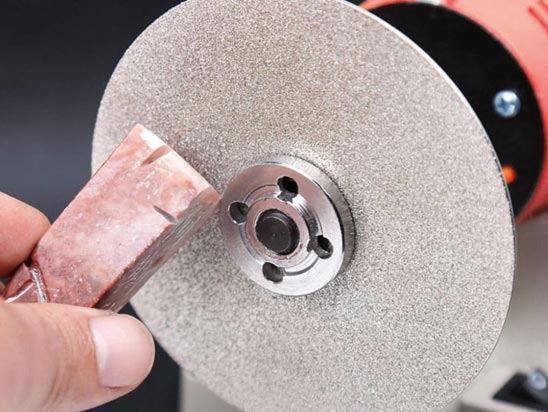

lapping, faceting and grinding hard materials such as jewels and gemstones for lapidary work, glass, jade, tiles, ceramics, rock, crystal, agate, etc

diamond coated flat lap disc lapidary diamond coated flat lap disc lapidary

Drawing&Specification

Outside Diameter (inch)

4”, 6”, 8”, 10”, 12”, 14”, 16”, 18”, 24”

Arbor Hole (inch)

1/2”, 5/8”, 1”

Thickness(mm)

1 - 1.5

Grit (#)

60, 80, 100, 150, 240, 320, 500, 600, 800, 1200, 1500, 3000

maximum speed (RPM) rating

2000 - 3000 RPM (6” and 8”)

1500 - 2000 RPM (12”)

Other sizes can be design according to customers’ requirement
