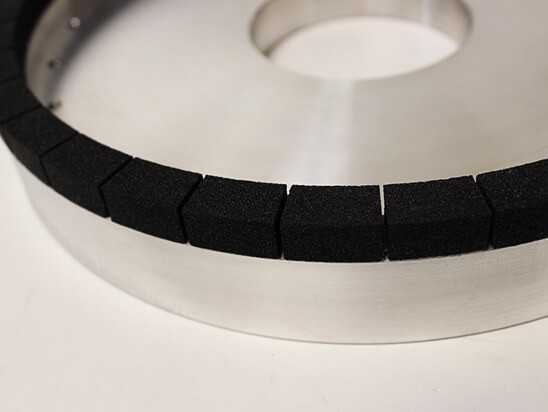

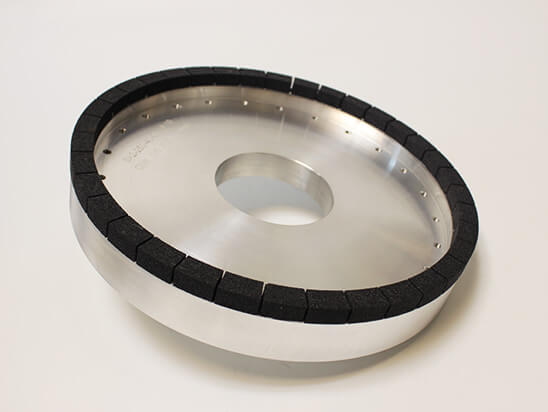

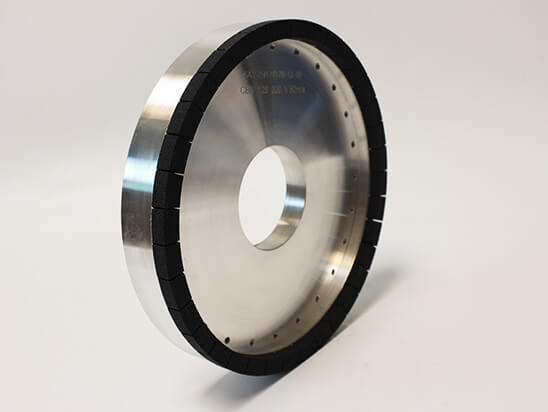

Vit CBN Grinding Wheel for steel part for automobile industry
High precision & good surface quality
High adhesion strength
Excellent performance
Reduced grinding forces
Easy dressing
Cutting Tool Industry
Diamond Jewelry Industry
Automotive Industry
Bearing Industry
Woodworking Industry
Thermal Spray Coating Industry
Glass Industry
Oil&GAS Industry
LED & Semiconductor Industry
Medical Industry
Aviation and Turbine Industry
Dressing Tools
Diamond & CBN Grinding Wheels
Honing Tools
End Surface Grinding
Description of cbn wheel for steel grinding
Vitrified cbn wheel is used for face grinding (Ra 0.2 finish ) steel part in automotive industry. The hardness of workpiece is 57HRC and stock removal is 0.06mm+- 0.015.
Materials to grind
Cast iron: Chilled cast iron, nodular cast iron, grey cast iron, alloy cast iron and etc
Steel: 20Cr, GCr15, CF53, 45# steel, 55# steel,80B high carbon steel and etc
Advantages of vitrified cbn grinding wheel
1. High precision & good surface quality
2. High adhesion strength
3. Excellent performance
4. Reduced grinding forces
5. Easy dressing
Grinding And Dressing Parameters Of Vit CBN Wheel For Grinding Steel
Workpiece Grinding |
Euro 5 Body |
F2NPI Body |
Cutting Speed (rpm) |
6110 |
3110 |
Workpiece Speed (rpm) |
4000 |
4000 |
Grinding Infeed (mm/min) |
650 |
650 |
Workpiece Hardness |
800 HV300 |
700 825 HV10 |
Spindle Max Speed (rpm) |
6000 |
6000 |
Stock removal (um) |
75 |
60 |
Dressing Parameters |
Euro 5 Body |
F2NPI Body |
No. of passes |
1 |
1 |
Depth of pass (um) |
10 |
10 |
Dressing Interval |
500 |
2000 |
Dressing Infeed (mm/min) |
2000 |
1000 |
