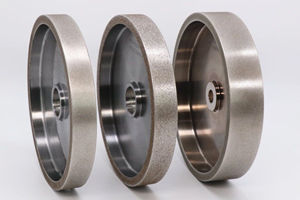

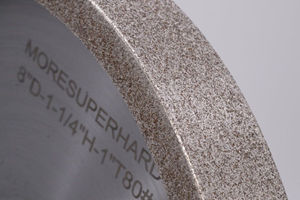

Electroplated CBN Sharpening Wheel for Woodturners

Diameter: 6 inch, 8 inch and 10 inch

Thickness :1 inch, 1.5 inch and 2 inch

Arbor hole :1/2 inch, 5/8 inch, 1-1/4 inch

Radius edge: 1/4 inch

Grain Size: 80#, 180#, 220#, 350#, 600#, 800#, 1200# etc.

Applicable grinder:  sharpening woodturning tools (high speed steel HSS) on bench grinder

Advantages: * Fast and cool cutting action without coolant

                     * No need dressing or turning

Product Details

Application:

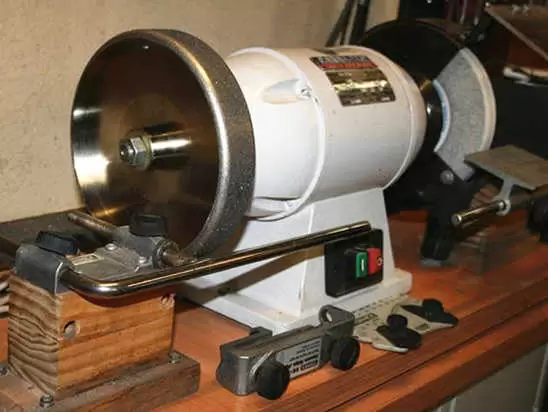

CBN (cubic boron nitride) grinding wheels are used for sharpening woodturning tools (high speed steel HSS).The cbn grinding wheels are installed on bench grinder

Advantages

* Compare with traditional grinding wheels, CBN wheels have the cutting fast and will not cause rough surface and burn problems

* Fast and cool cutting action without coolant

* Side surface for flat grinds on skews, scraper cutters and tool bits

* No need dressing or turning

* Wheel stays flat, never changes shape.The thermal conductivity of CBN can reach 10 to 100 times that of corundum grinding wheel, so the grinding heat can be quickly exported and reduce the workpiece deformed.

Drawing&Specification

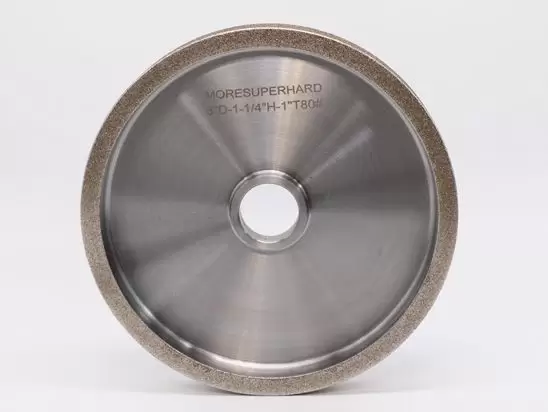

Size of Steel body and aluminum body electroplated CBN grinding wheel

Diameter (inch)

Arbor Hole (inch)

Thickness(inch)

Grit

Radius Edge

6 inch

1 / 2 inch

1 inch

80#, 100#, 180#, 220#, 240#, 300#, 350#, 400#, 600#, 800#, 1200#, 1600# etc.

1 / 4 inch

6 inch

1 / 2 inch

1.5 inch

6 inch

5 / 8 inch

1.5 inch

8 inch

5 / 8 inch

1 inch

8 inch

5 / 8 inch

1.5 inch

8 inch

1-1 / 4 inch

1 inch

8 inch

1-1 / 4 inch

1.5 inch

* Other sizes can be made according to customers' requirement. Email: info@moresuperhard.com

Size of plastic body electroplated CBN grinding wheel

Diameter

Arbor hole

Thickness

Available Grit

Radius edge

100mm

12.7mm

38.1mm



80#, 100#, 180#, 220#, 240#, 300#, 350#, 400#, 600#, 800#, 1200#, 1600# etc.







6.35mm



150mm

12.7/15.8mm

25.4mm

150mm

12.7/15.8mm

38.1mm

150mm

12.7/15.8mm

50.8mm

200mm

12.7/15.8mm

25.4mm

200mm

12.7/15.8mm

38.1mm

200mm

12.7/15.8mm

50.8mm

Other sizes are available upon request. Please contact:info@moresuperhard.com

cbn sharpening wheel for woodturners  electroplated cbn sharpening wheel

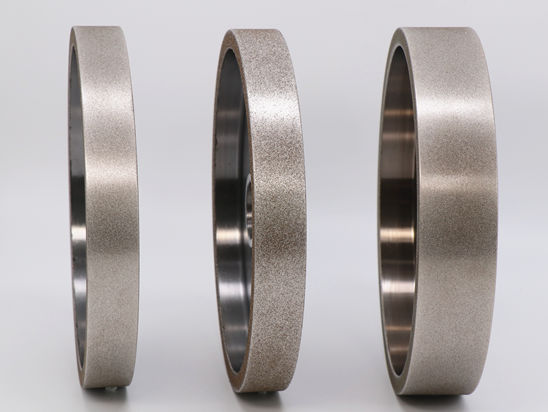

Body Type and introduction of electroplated CBN grinding wheel

Body Type

Introduction

Steel Body

More Super Hard Products Co., Ltd



1. Steel body has the best rigidity.

2. Steel has a higher melting point than aluminum and is used for dry grinding.

3. The weight is the heaviest of the three.

Aluminum Body



1. The weigh lighter than steel body.

2. Aluminum has a low melting point, so need to be grinding with water

3. Aluminum suitable for polishing.

Plastic Body

More Super Hard Products Co., Ltd

1. The weight is the lightest of the three. And the freight is relatively low.

2.The rotational speed should be faster than the steel body when use.

3. Plastic body has the advantages of light weight and low price.
