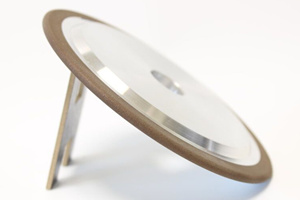

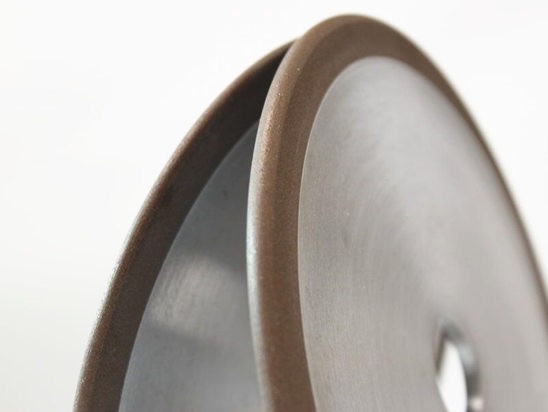

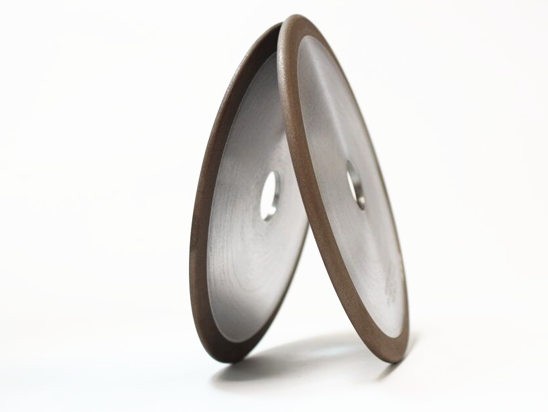

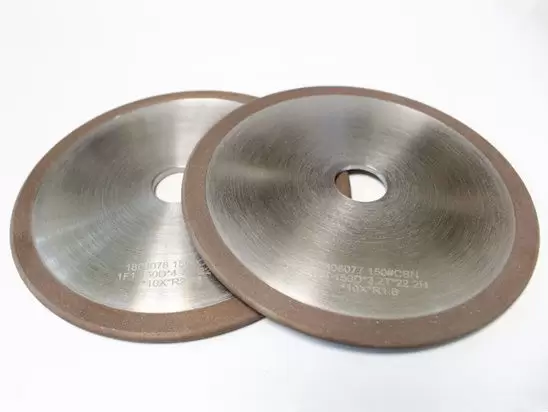

CBN Chainsaw Grinding Wheel

CBN Grinding Wheel for Chainsaw Sharpener (high speed steel grinding)

Diameter: 4" (104 mm), 5 3/4" (146 mm) and 8" (203 mm)
Inner Hole: 7/8" (22,23 mm), but every wheel comes with the reducing spacer which reduces bore size to 12 mm; For 8" (203 mm) wheels bore diameter is 1" (25,4 mm)
Pitches used for chainsaw: 1/4 inch, 0.325 inch, 3/8 inch

Product Details

Moresuperhard diamond and CBN chainsaw sharpening wheels have good surface finish, long life. The superabrasive grinding wheels are suitable for chain saw sharpening in woodworking industry.

Suitable machines of chainsaw grinding wheel

Timberline, Oregon, Granberg Bar-Mount, Timber Tuff, Blue Max, Stihl,Sportsman Earth,Husqvarna 653000035,Electric Grinder and others chainsaw sharpener

Applications of chainsaw sharpening wheel
* Diamond wheels for carbide tipped chain sharpening
* CBN wheels for steel chain sharpening

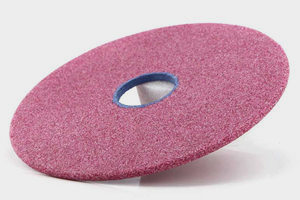

Why use diamond & cbn chainsaw wheel to replace pink grinding wheel

cbn chainsaw sharpneing wheel chainsaw grinding wheel

* Long service life compared with the pink aluminum oxide grinding wheel

* Great rough roughness

* Not burn and scratch the profile of the chain saw teeth

* Environmentally friendly and no too much dust

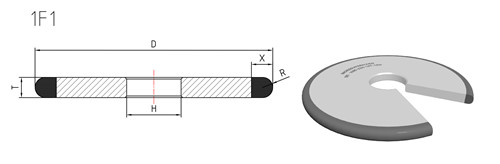

Drawing&Specification

Specifications of chainsaw sharpening wheel

1f1 cbn chainsaw sharpening wheel

Diameter (inch /mm)

Inner Hole (inch/mm)

Thickness(inc/mm)

R

Pitch saw chain

1F1

4-1/8" , 100mm

7/8", 22mm

 1/8", 3.2mm

1.6

0.325

4-1/8" , 100mm

7/8", 22mm

4/25", 4.0mm

2

0.325

4-1/8" , 100mm

7/8", 22mm

4.7mm

2.35

0.404

3F1

6”, 150mm

7/8", 22mm

4.5mm

2.25

0.404

Special size can be produce according to pitch saw chain.
