Diamond Cylindrical Grinding Wheel for HVOF Carbide Coatings
Grinding Wheel for HVOF Carbide Coatings
Diamond Cylindrical Grinding Wheel

Resin Diamond Cylindrical Grinding Wheel for HVOF Carbide Coatings

More Superhard provides a full range of thermal spray coating grinding solution and service, which includes

► OD cylindrical grinding wheel (1A1 shape)
► Diamond sanding belts
► Diamond internal grinding wheel
► Diamond honing stone

Model: 1A1 diamond wheel (diameter up to 1100mm)

External Cylindrical grinding, Internal grinding


Product Details

Applications of External diamond cylindrical grinding wheel
For grinding and finishing of thermal spray coatings ( including tungsten carbide , chrome carbide and chrome oxide ), ceramics, carbides, chilled iron composites and other hard-to-grind materials.

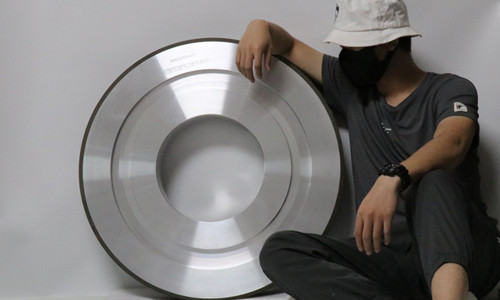

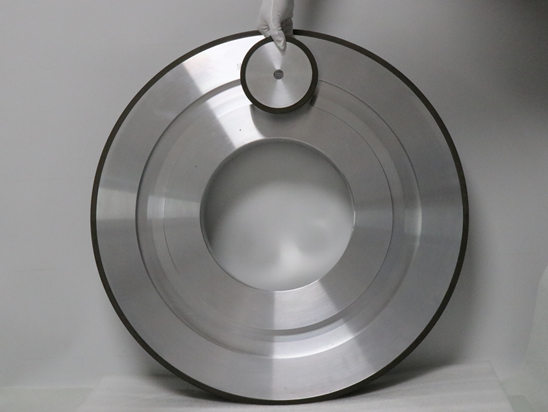

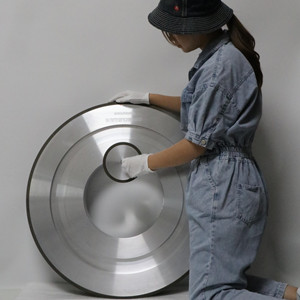

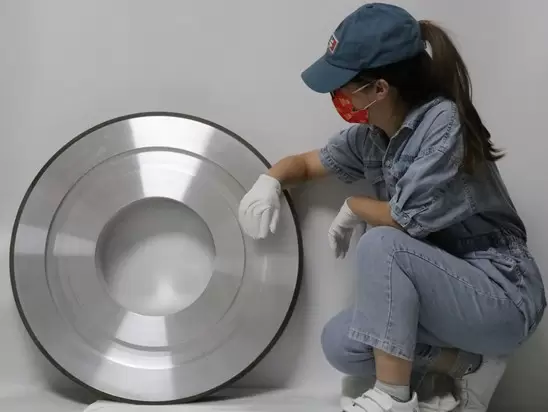

Grinding Wheel for HVOF Carbide Coatings OD big diamond grinding wheel

Grinding Wheel for HVOF Carbide Coatings

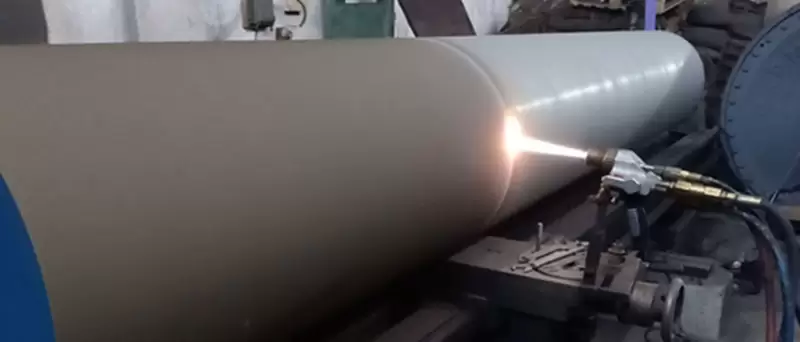

Thermal Spray Coating Process

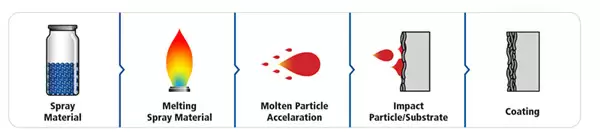

Thermal Spray technologies includ Flame wire spray, Arc spray, Plasma spray, HVOF or HVAF , Detonation Spray, Cold spray, Laser cladding. Thermal spraying technology is widely used in aerospace, aviation, machinery, metallurgy, chemical, petroleum, coal, railway, textile and many other departments .

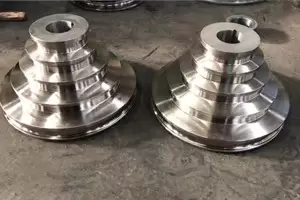

thermal spray coating

Application fields of HVOF carbide coatings
* Engineering machinery wearing parts
* Wire and cable industry wearing parts
* Metal products industry wearing parts
* Power plant equipment wearing parts
* Petrochemical equipment Customization and repair of wearing parts

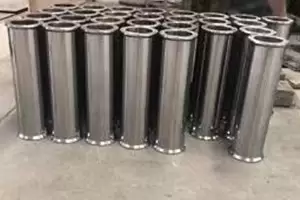

thermal spray coating thermal spray coating

Drawing&Specification

Specifications of resin diamond cylindrical wheels

1a1 diamond grinding wheel

Type Diameter(inches) D(mm) H(mm) X(mm) T(mm) U(mm)
1A1 4”



100 20 6 12
1A1 100 20 10 10
1A1 100 20 10 12
1A1 100 25.4 10 20
1A1 8” 200 76.2 10 25
1A1 12”



300 76.2 10 25
1A1 300 127 10 25,30,40
1A1 300 127 25 50
14A1 300 127 6,10 40 10
14A1 300 127 10 40 15
1A1 16”



400 127 10,25 25
1A1 400 127 10 30,40,50
1A1 20”



500 203 10 15,20
1A1 500 254 38 25,50
1A1 24”



600 254 25 25
1A1 600 304.8 5 40
1A1 600 203 25 50
1A1 600 304.8 10 50
1A1 30” 750 304.8 10 40,50
1A1 35.4” 900 304.8,305 10 50,75
1A1 36” 914.4 304.8,305 10 50.8
1A1 43” 1100 304.8 10 50
We can also customized according to your requirements.

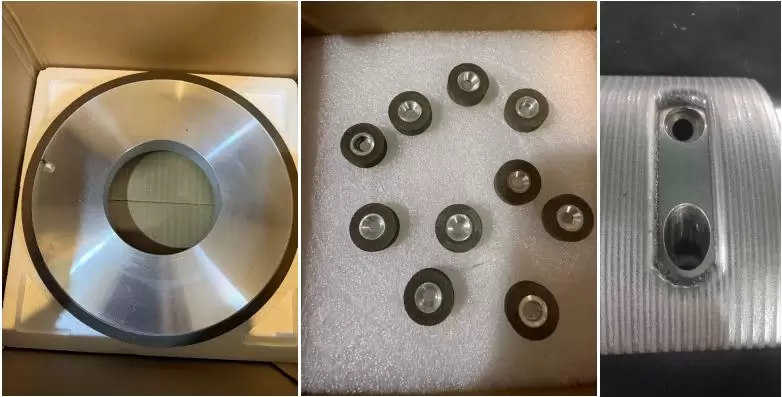

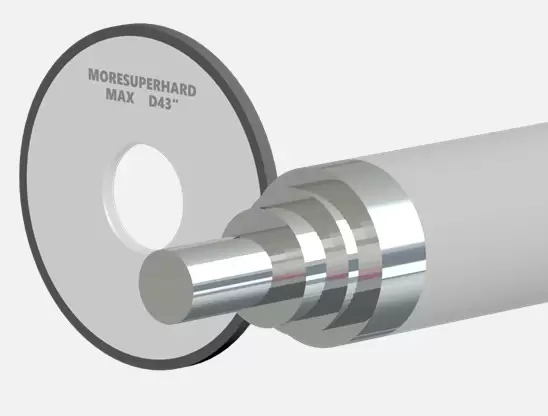

Application Case : Diamond grinding wheel for tungsten carbide coating Roller

Operation External grinding
Workpiece Roll Diameter 120—1000 mm, Length 1.5—10 mm
Material HVOF spraying tungsten carbide or ceramic coating on a steel body
Dressing white aluminum oxide 240#
Machine External grinding machine
Coolant Emulsion, Pressure: >/= 3 Bar
Diamond wheel specification 1A1 D750*T50*H304.8*X10 mm D126 N100 Aluminum wheel body
Parameters Wheel speed: 18—24 m/s,
Depth of cut:0.01 –0.03 mm
Feed: 300—800 mm/min
Roll speed: 15—20 m/s
