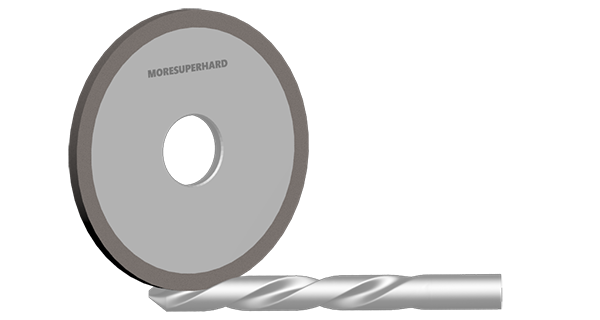

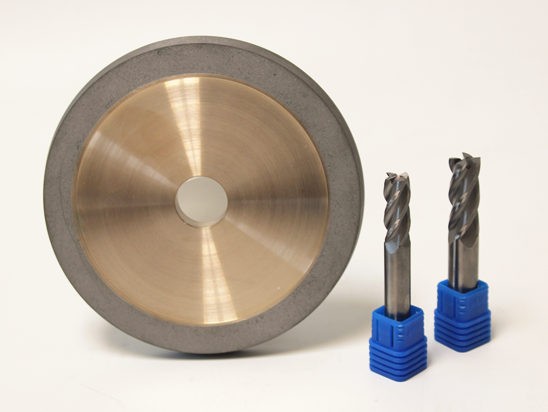

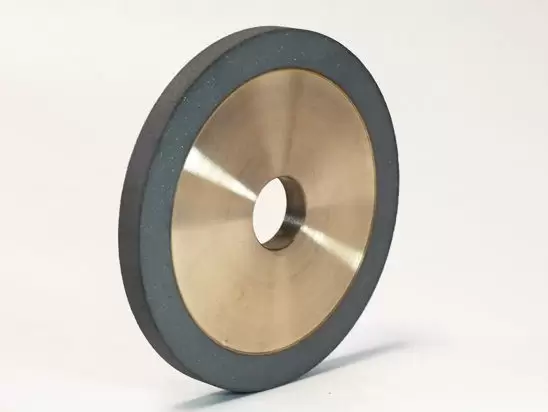

Diamond Flute Grinding Wheel for Carbide Tools
Model: 1A1, 1V1, 14A1, 3A1
Application: fluting end mill, drill, carbide cutter
Advantages of flute wheel
Online truing & dressing capability lower tooling cost
Better edge quality
Applicable CNC Grinder: Anca, Makino, Rollomatic, Star, Walter, etc
Product Details

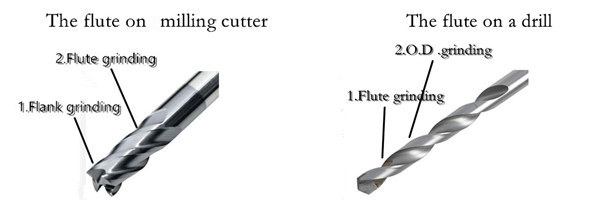

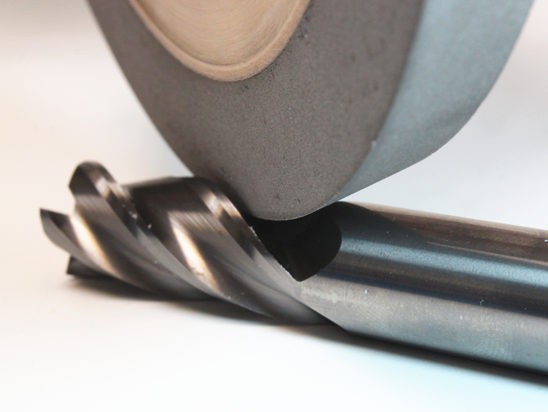

The Diamond flute grinding wheels are used for fluting milling cutter, drill. Flute grinding is a most demanding and time-consuming operation, owing to the high stock removal. Used for fluting end mill, drill, cutter, etc. More Superhard offers the optimal product solution for every combination of machines and materials as well as for every grinding requirement.
Drawing&Specification
| Model | D (inch/mm) | T (inch / mm) | X (inch / mm) | H (inch /mm) | ||||
| 1A1 | 4″ | 100 | 1/4″ | 6 | 1/4″ | 6 | 1-1/4″ | 31.75 |
| 1A1 | 4″ | 100 | 3/8″ | 10 | 3/8″ | 10 | 1-1/4″ | 31.75 |
| 1A1 | 4″ | 100 | 1/2″ | 12 | 3/8″ | 10 | 1-1/4″ | 31.75 |
| 1A1 | 4″ | 100 | 5/8″ | 15 | 3/8″ | 10 | 1-1/4″ | 31.75 |
| 1A1 | 5″ | 125 | 1/4″ | 6 | 1/4″ | 6 | 1-1/4″ | 31.75 |
| 1A1 | 5″ | 125 | 3/8″ | 10 | 3/8″ | 10 | 1-1/4″ | 31.75 |
| 1A1 | 5″ | 125 | 1/2″ | 12 | 3/8″ | 10 | 1-1/4″ | 31.75 |
| 1A1 | 5″ | 125 | 5/8″ | 15 | 3/8″ | 10 | 1-1/4″ | 31.75 |
| 1A1 | 6″ | 150 | 1/4″ | 6 | 1/4″ | 6 | 1-1/4″ | 31.75 |
| 1A1 | 6″ | 150 | 3/8″ | 10 | 3/8″ | 10 | 1-1/4″ | 31.75 |
| 1A1 | 6″ | 150 | 1/2″ | 12 | 3/8″ | 10 | 1-1/4″ | 31.75 |
| 1A1 | 6″ | 150 | 5/8″ | 15 | 3/8″ | 10 | 1-1/4″ | 31.75 |
