External Diamond Grinding Wheel for HVOF Carbide Coating
External grinding wheel for grinding and finishing of HVOF thermal spray coatings
Excellent surface finish
Long lifespan
High wear resistance
Product Details

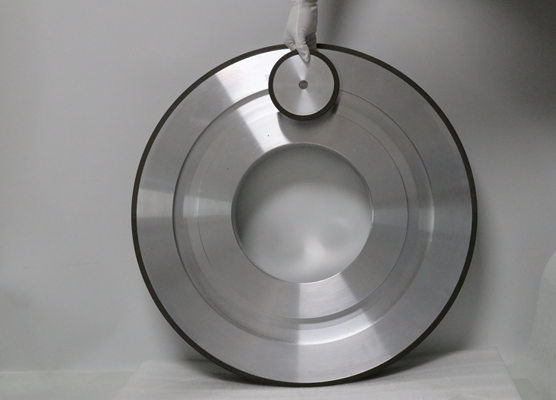

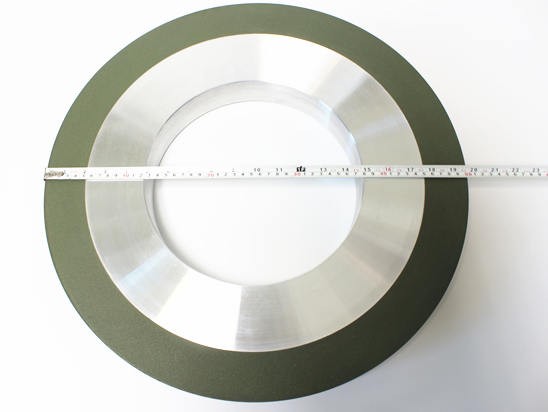

Description of resin bond diamond cylindrical grinding wheel
Resin diamond Grinding Wheels are designed for fast and cool cutting;perform well in both wet and dry grinding application.
Application of resin bond diamond grinding wheel for carbide
For grinding and finishing of thermal spray coatings ( including tungsten carbide , chrome carbide and chrome oxide ), ceramics, carbides, chilled iron composites and other hard-to-grind materials

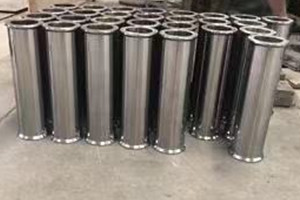

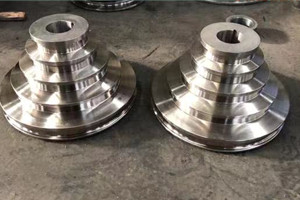

Application fields of HVOF carbide coatings
* Engineering machinery wearing parts
*Wire and cable industry wearing parts
*Metal products industry wearing parts
*Power plant equipment wearing parts
*Petrochemical equipment Customization and repair of wearing parts
Drawing&Specification
| Type | Diameter | D(mm) | H(mm) | X(mm) | T(mm) | U(mm) |
| 1A1 | 4’’
|
100 | 20 | 6 | 12 | |
| 1A1 | 100 | 20 | 10 | 10 | ||
| 1A1 | 100 | 20 | 10 | 12 | ||
| 1A1 | 100 | 25.4 | 10 | 20 | ||
| 1A1 | 8’’ | 200 | 76.2 | 10 | 25 | |
| 1A1 | 12’’
|
300 | 76.2 | 10 | 25 | |
| 1A1 | 300 | 127 | 10 | 25,30,40 | ||
| 1A1 | 300 | 127 | 25 | 50 | ||
| 14A1 | 300 | 127 | 6,10 | 40 | 10 | |
| 14A1 | 300 | 127 | 10 | 40 | 15 | |
| 1A1 | 16’’
|
400 | 127 | 10,25 | 25 | |
| 1A1 | 400 | 127 | 10 | 30,40,50 | ||
| 1A1 | 20’’
|
500 | 203 | 10 | 15,20 | |
| 1A1 | 500 | 254 | 38 | 25,50 | ||
| 1A1 | 24’’
|
600 | 254 | 25 | 25 | |
| 1A1 | 600 | 304.8 | 5 | 40 | ||
| 1A1 | 600 | 203 | 25 | 50 | ||
| 1A1 | 600 | 304.8 | 10 | 50 | ||
| 1A1 | 30’’ | 750 | 304.8 | 10 | 40,50 | |
| 1A1 | 35.4’’ | 900 | 304.8,305 | 10 | 50,75 | |
| 1A1 | 36’’ | 914.4 | 304.8,305 | 10 | 50.8 | |
| 1A1 | 43’’ | 1100 | 304.8 | 10 | 50 | |
| We can also customized according to your requirements. | ||||||
