Cylindrical Diamond Grinding Wheel
Cylindrical Diamond Grinding Wheel
Cylindrical Diamond Grinding Wheel

Cylindrical Diamond Grinding Wheel for PDC

* “Good news the third trial wheel performed successfully we completed four blocks with 2.5mm removal of Diamond cutters, eight grinding passes in total, the operator was more than happy with the quality of the finish”. —–from UK client

* ” It was very similar to 3M’s grinding wheel but our price is a little better so it makes better sense”. —–from UK client

Resin bond & Vitrified bond diamond cylindrical wheel for pcd drill bits / pdc cutter


Product Details

Application of cylindrical diamond wheel

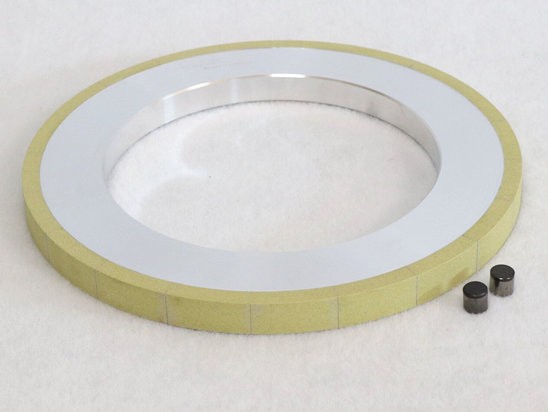

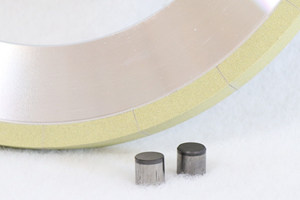

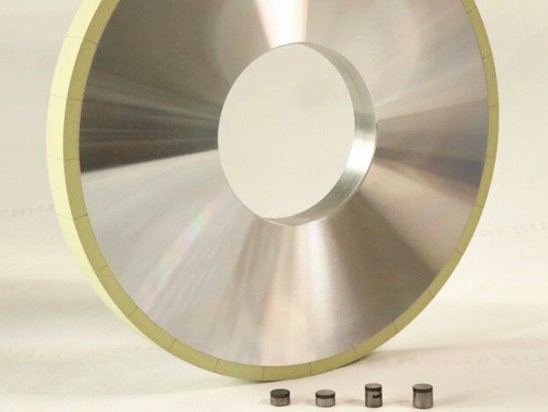

Diamond cylindrical grinding wheel for rough grinding the cylinder of Polycrystalline Diamond Compacts (PDC cutter). Compared with resin diamond grinding wheel, our wheels lead to 35% grinding cost reduced, 40% grinding time of each PDC saved, and the size precision of PDC improved.

Cylindrical diamond grinding wheels are used for cylindrical grinding in manufacturing and repair PDC drill bits. In the practical applications, choose resin bond or vitrified bond cylindrical diamond grinding wheels according to the conditions. If the base of PDC bits contains iron-based elements, need to consider whether to choose hybrid abrasive (diamond and CBN) grinding wheels.

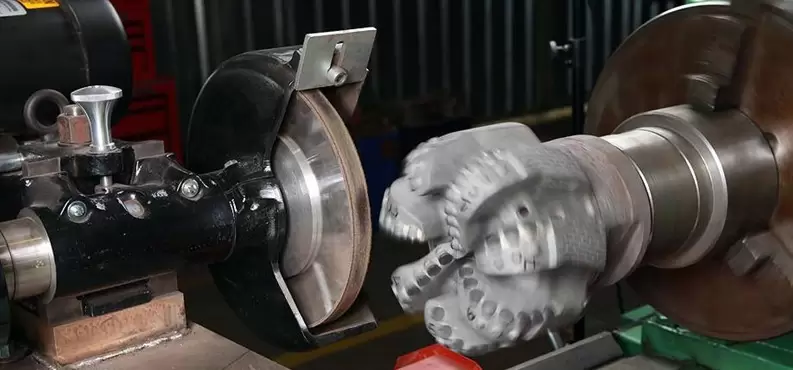

Cylindrical Grinding PCD Drill Bits

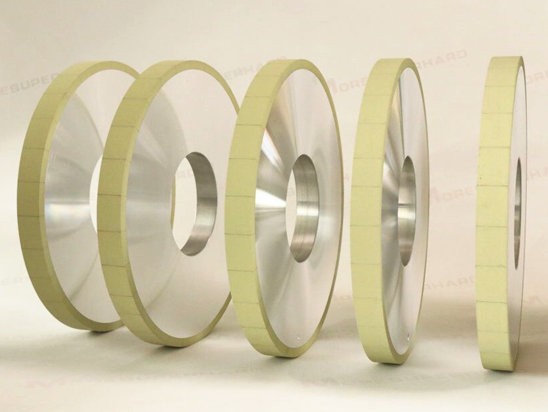

Resin Diamond Cylindrical Wheel for PDC Cutter, Drill Bits

Resin bond cylindrical grinding wheel has good self-sharpness, and good surface finish, customer usually  use larger size resin grinding wheel. 1A1 wheels are used for cylindrical grinding in manufacturing and dressing PDC drill bits, and most resin diamond grinding wheel for PDC cutter with diameter size above 350mm.

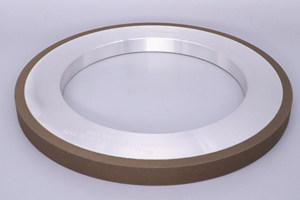

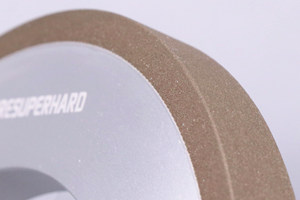

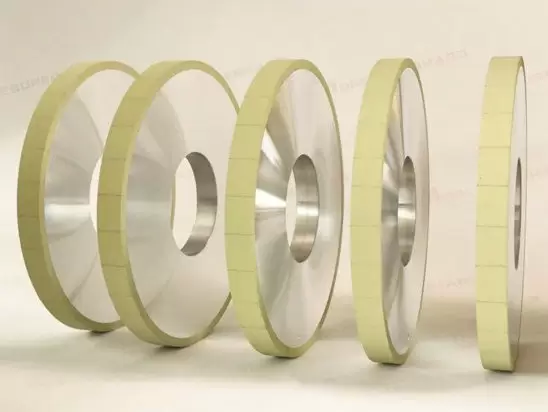

resin diamond grinding wheel resin diamond grinding wheel

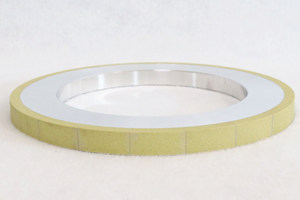

Vitrified Diamond Wheel for Cylindrical Grinding PCD Drill Bits

1A1 vitrified diamond cylindrical grinding wheel have good self-sharpening with pores and little damage to the spindle of the grinding machine, sharp and the grinding efficiency is high. When grinding, the cutter is not back-off and the size of PDC is a good consistency.

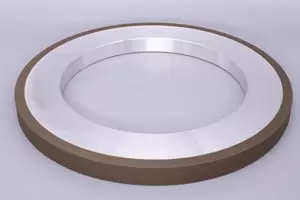

vitrified diamond grinding wheel

Drawing&Specification
Model D (mm) T (mm) H (mm) X (mm)
1a1 grinding wheel

1A1

350 40 127 10
400 40 50 203 10
400 40 50 305 10
