Grinding Mode

External Cylindrical Grinding Wheels / Diamond Cylindrical WheelExternal Cylindrical Grinding Wheels / Diamond Cylindrical WheelExternal Cylindrical Grinding Wheels / Diamond Cylindrical Wheel
External Cylindrical Grinding Wheels / Diamond Cylindrical WheelExternal Cylindrical Grinding Wheels / Diamond Cylindrical WheelExternal Cylindrical Grinding Wheels / Diamond Cylindrical Wheel

External Cylindrical Grinding Wheels / Diamond Cylindrical Wheel

* Cylindrical grinding (also called center -type grinding)

 * Five different types of cylindrical grinding

1. outside diameter (OD) grinding

2. inside diameter (ID) grinding

3. plunge grinding

4. creep feed grinding

5. centerless grinding

* Diamond & cbn cylindrical wheel / Abrasive cylindrical grinding wheel

Product Details
What is Cylindrical Grinding
Cylindrical grinding (also called center -type grinding) is used to grind the cylindrical surface and shoulders of the workpiece.
There are five different types of cylindrical grinding (various grinding methods include straight cylindrical, taper, end face, and total shape grinding) :
* Outside diameter (OD) grinding
* Inside diameter (ID) grinding
* Plunge grinding
* Creep feed grinding
* Centerless grinding

Diamond & CBN Cylindrical Grinding Wheels

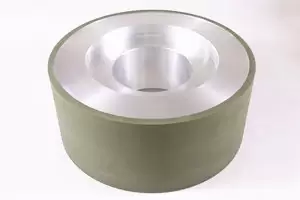

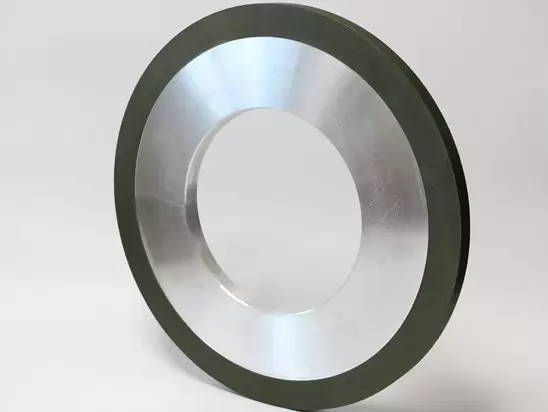

diamond cylindrical grinding wheel for thermal spray coating                                               Centerless diamond grinding wheel

Diamond cylindrical grinding wheel for thermal spray coating                        Centerless diamond grinding wheel

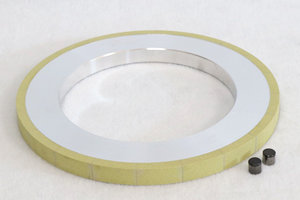

cylindrical diamond wheel for pdc cutter

Cylindrical diamond wheel for pdc cutter



Abrasive Cylindrical Grinding Wheels

Most applications, predominantly use aluminium oxide grinding wheels in a vitrified bond with particle sizes ranging between 54 and 180, and hardness grades between H and L (depending on requirements). This enables an optimum balance between abrasion and surface finish. However, if extremely fine surface finish levels are required (e.g. Rz < 3 µm), we recommend the use of resin-bonded grinding wheels with grit sizes finer than 150.

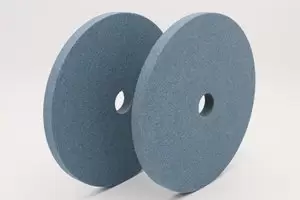

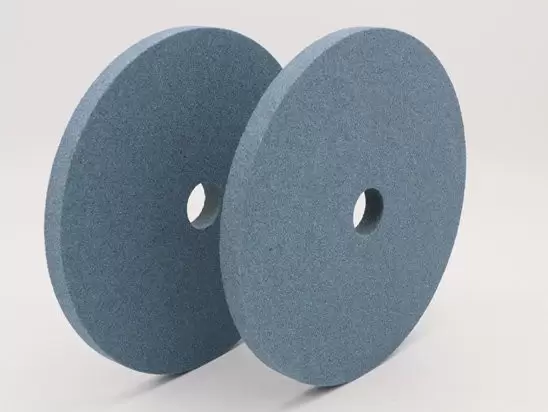

abrasive cylindrical grinding wheel

Drawing&Specification
