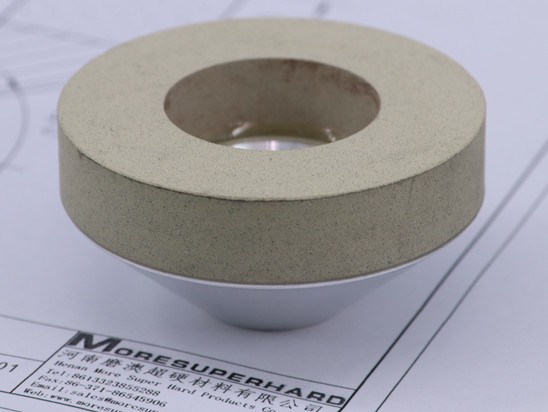

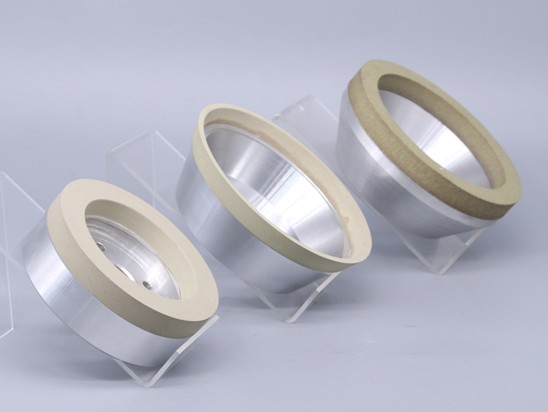

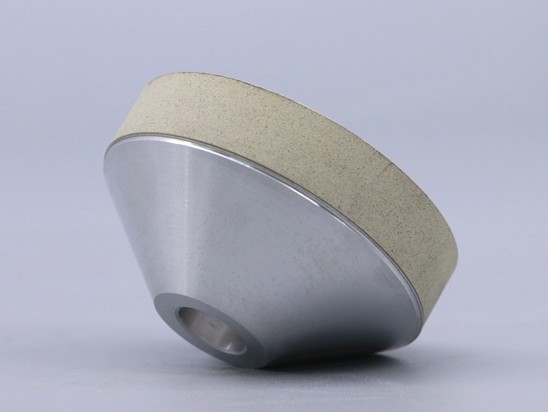

11A2 Vitrified Diamond Grinding Wheel for PCD/PCBN Tools
Especially for PCD/PCBN tools’ rough, medium, semi-finish and finish grinding
Precision control of geometric tolerance
Extremely long lifetime through high adhesion strength of the diamond grain
Good self-sharpening
Superior insert edge quality
High cutting ability with profile retention
Cutting Tool Industry
Diamond Jewelry Industry
Automotive Industry
Bearing Industry
Woodworking Industry
Thermal Spray Coating Industry
Glass Industry
Oil&GAS Industry
LED & Semiconductor Industry
Medical Industry
Aviation and Turbine Industry
Dressing Tools
Diamond & CBN Grinding Wheels
Honing Tools
End Surface Grinding
Application of 11a2 vitrified diamond grinding wheel
Especially for PCD/PCBN tools’ rough, medium, semi-finish and finish grinding.
Advantages of diamond grinding wheel for pcd tools
Precision control of geometric tolerance
Extremely long lifetime through high adhesion strength of the diamond grain
Good self-sharpening
Superior insert edge quality
High cutting ability with profile retention

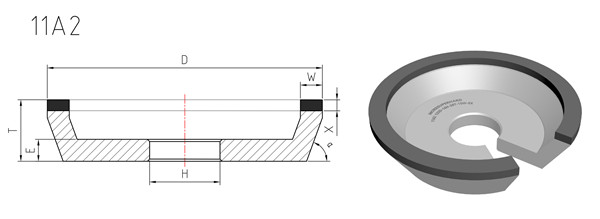

Type |
D(mm) |
T(mm) |
H(mm) |
W(mm) |
X(mm) |
11A2 |
100 |
40 |
32,40 |
3,5,10,20 |
10 |
125 |
40 |
32,40 |
3,5,10 |
10 |
|
150 |
40 |
32,40 |
3,5,10,15,20 |
10 |
|
Grit: 325/400, W40(500#), W28(600#), W20(800#), W10(1500#), W7(2000),W5(3000#), W3.5(4000#),6000#... |
Grain Size Selection:
Grain Size |
Machining Type |
Application |
W40(400-500#,D35)W28(600-700#,D20) |
rough |
Regrinding a blade edge profile and sharpening of much worn inserts |
W20(800-1000#,D20) |
universal |
Standard grain size also can get a high sharpening efficiency, good quality surfaces |
W10 (1500#, D15A)
W7(2000#,D15B) |
finish |
Finishing grinding - getting a very good quality of machined surfaces |
W5 (3000#, D7)
W3.5 (4000#,D3) |
super finish |
Super finish grinding - getting a brilliant quality of machined surfaces |
