Vacuum Brazed Diamond Cutting Disc, Cast Iron Cutting

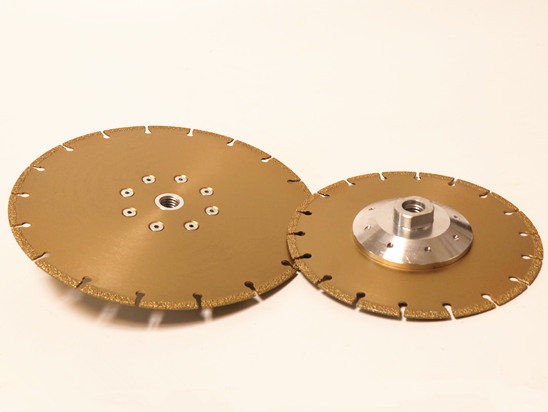

Vacuum brazed saw blades with continuous type and segment type

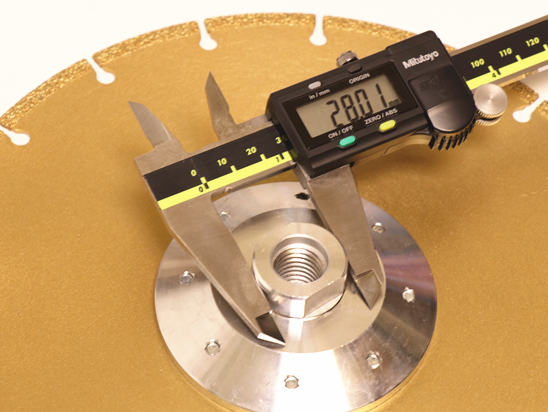

Vacuum brazed diamond disc with flange

Cutting Marble , cast iron , Ceramics tiles ,hard composite materials such as concrete with rebar , Metal processing, Fiber Glass and PVC pipe, etc

Product Details

Vacuum brazed saw blades have continuous type and segment type. They are used for cutting Marble, cast iron, Ceramics tiles, hard composite materials such as concrete with rebar, Metal processing, Fiber Glass and PVC pipe, etc

Advantages Of Vacuum Brazed Diamond Saw Blades

* Single Layer Of Fully Exposed Diamond Fused With Nickel At High Temperatures And Sharp Cutting

* Small cutting gap and less chipping

* Up To 40 Times Longer Life Time Than Resin Grinding Disc. the efficiency is improved by 100% for cutting FRP slab

* Higher Quality Process Than Sintered or Laser Welded Diamond Wheel. The efficiency is improved by 35% for cutting marble slab

* No Pollution, Low Noise ,Never Need Dressing

Drawing&Specification
Model D (mm) H (mm) T (mm)
Vacuum Brazed Diamond Saw Blade 100 22.23 1.2
115 22.23 1.2
125 22.23 1.2
150 22.23 25.4 1.2 2.4
180 22.23 1.6
230 22.23 1.8
350 25.40 32 2.0
400 25.40 32 2.2 2.6

Grain Size: Rough 25/30, 30/35, 35/40, Finish 50/60. Others Size And Grit Can Be Customized According To Customers' Requirement.
