Diamond Cutting Disc for Tile Marble, Electroplated Diamond Cutting WheelDiamond Cutting Disc for Tile Marble, Electroplated Diamond Cutting WheelDiamond Cutting Disc for Tile Marble, Electroplated Diamond Cutting Wheel
Diamond Cutting Disc for Tile Marble, Electroplated Diamond Cutting WheelDiamond Cutting Disc for Tile Marble, Electroplated Diamond Cutting WheelDiamond Cutting Disc for Tile Marble, Electroplated Diamond Cutting Wheel

Diamond Cutting Disc for Tile Marble, Electroplated Diamond Cutting Wheel

Diamond cutting disc for cutting and grinding marble, granite, thermosetting plastics, GRP, pre-sintered and pre-fired (green) materials, fiber glass, electro carbons, graphite, soft ferrites, PVC and pc boards, etc

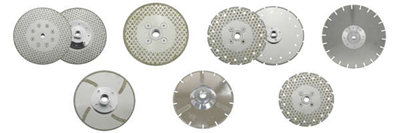

Single coated side with flange

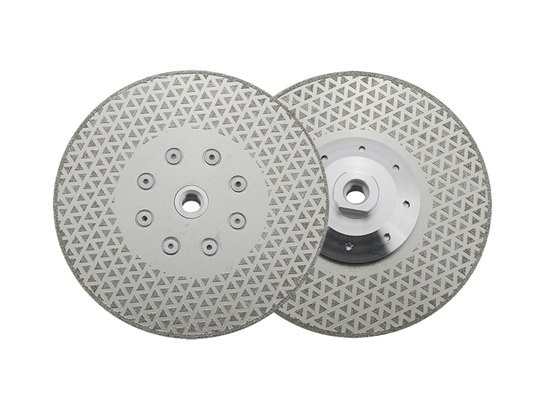

Double coated side with flange

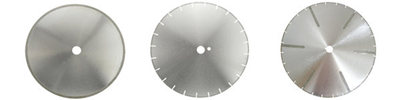

Diamond cutting disc Without flange

Product Details

Applications Of Electroplated Diamond Cutting Wheel, Cutting Disc

Cutting and grinding marble, granite, thermosetting plastics, GRP, pre-sintered and pre-fired (green) materials, fiber glass, electro carbons, graphite, soft ferrites, PVC and pc boards, etc

More SuperHard electroplated diamond saw baldes are usually be fixed on angle grinders, circular saws and handheld saws for cutting granite or marble, etc

Advantages Of Electroplated Diamond Cutting Disc

* The cutting effect is better than sintered small diamond saw blade and won't cause broken edge

* Very sharp cutting performance and generate minimum heat

*Continuous rim cutting discs provide smoother cutting on fiberglass, plastic, ceramic tiles

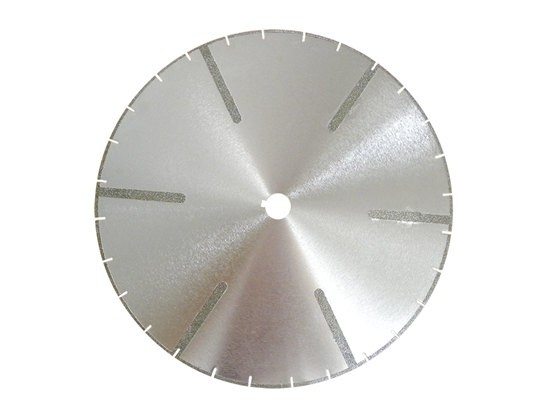

*Segmented rim cutting discs are more suitable for cutting marble, granite and abrasive materials

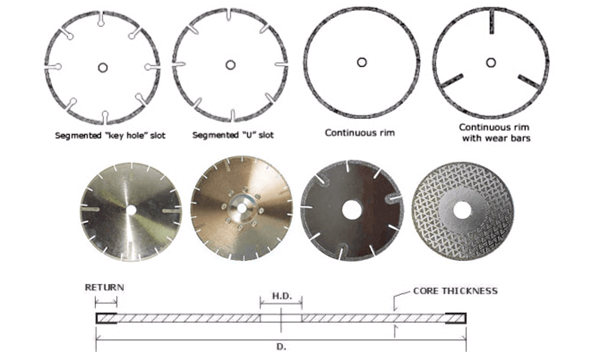

* Key hole” and “U” shape slots are common slot types of segmented rim

electroplated diamond cutting disc, diamond cut off wheel

Drawing&Specification

OD Diameter Diamond Cutting Disc


Outer Diameter

Arbor hole (mm)

Thickness of steel core

Rim

12"

300 mm

25.4 30 50

1.8mm 2mm

Continuous Segment

14"

350 mm

25.4 30 50

1.8mm 2mm

Continuous Segment

16"

400 mm

25.4 30 50

1.8mm 2mm

Continuous Segment

18"

450 mm

25.4 30 50

1.8mm 3mm

Continuous Segment

20"

500 mm

25.4 30 50

3.0mm

Continuous Segment

electroplated diamond cutting disc, diamond cut off wheel


Outer Diameter

Arbor hole (mm)

Thickness of steel core

Rim

4"

100 mm

5/8"-11 Flange

1.4mm

Continuous Segment

4.5"

115 mm

5/8"-11 Flange

1.4mm

Continuous Segment

5"

125 mm

5/8"-11 Flange

1.4mm

Continuous Segment

6"

150 mm

5/8"-11 Flange

1.4mm

Continuous Segment

7" 180mm 5/8"-11 Flange 1.6mm Continuous Segment

9"

230 mm

5/8"-11 Flange

1.6mm

Continuous Segment

electroplated diamond cutting blade, diamond cut off wheel


Outer Diameter

Arbor hole (mm)

Thickness of steel core

Rim

4"

100 mm

22.23

1.4mm

Continuous Segment

4.5"

115 mm

22.23

1.4mm

Continuous Segment

5"

125 mm

22.23

1.4mm

Continuous Segment

6"

150 mm

22.23

1.4mm

Continuous Segment

7" 180mm 22.23 1.6mm Continuous Segment

9"

230 mm

22.23

1.6mm

Continuous Segment

Other size and type of diamond cutting disc can be made according to customers' requirement. Email: info@moresuperhard.com
