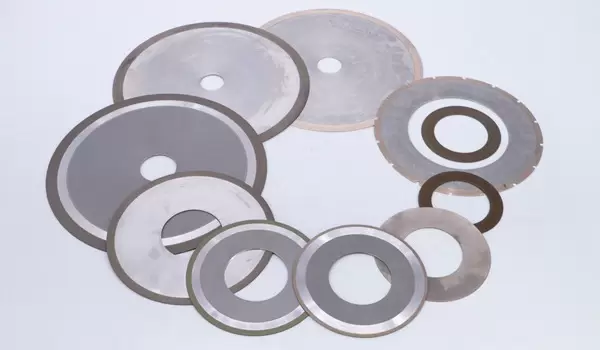

Ultra Thin Diamond CBN Cutting Wheels

Bond: Resin bond, Metal bond, Electroplated bond

Types: 1A1R, 1A1

Application: cutting & grooving carbide, glass, ceramic, magnetic materials and HSS

Diameter : from 5" (125mm)  to 16" (400mm).

Thickness : 0.3mm - 2.8mm

Tolerance: +-0.005mm

Product Details

Diamond cut off wheels, diamond cutting wheels are used for cutting and grooving glass,ceramic,cermet,carbide, graphite, quartz, ferrite, semiconductor materials,carbon, and other non-iron metal materials.

CBN cutting wheels, cbn blades are used for cuttiing high-efficiency cutting wheels are suitable for high-quality cutting of ceramics,glass, high- alloy steels, iron-based alloys, HSS, chrome steel and magnetic materials,etc

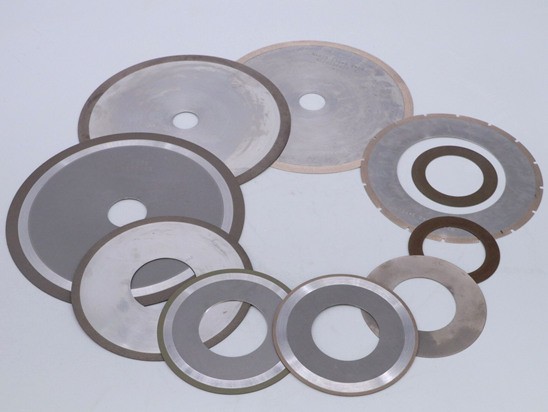

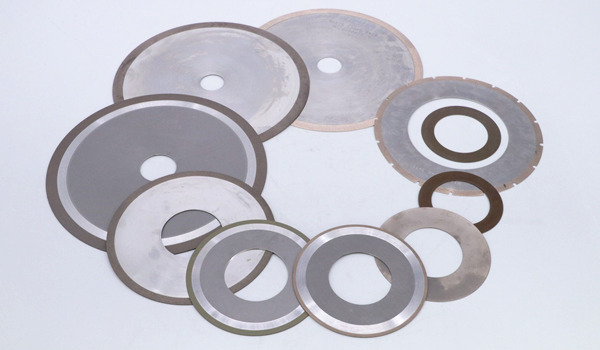

diamond cut off wheels

Bonded of Diamond and CBN cutting wheels, include

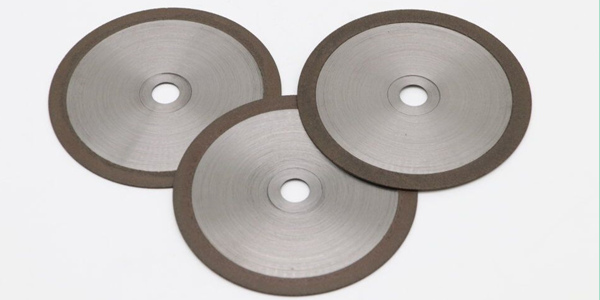

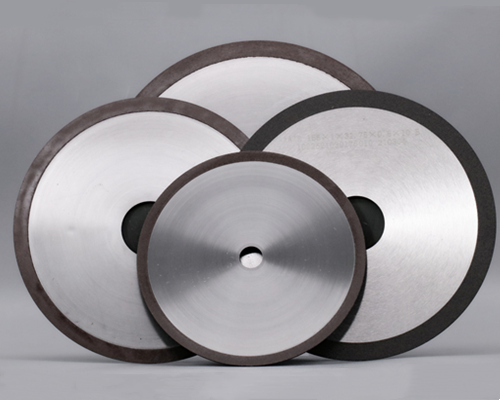

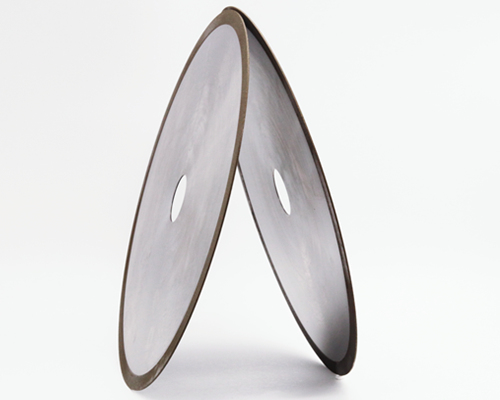

Resin diamond cutoff wheels for cutting tungsten carbide

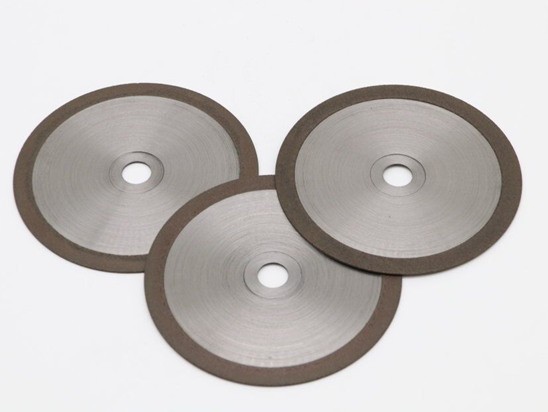

resin diamond cutting wheels for carbide

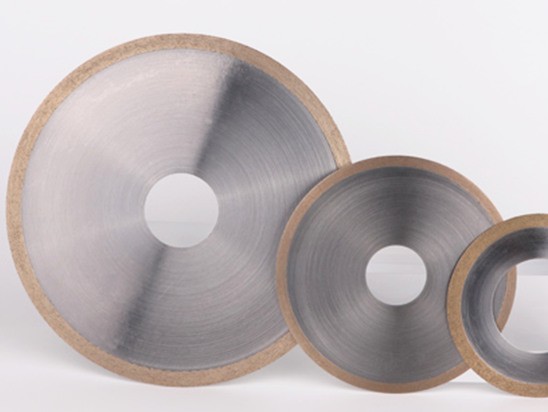

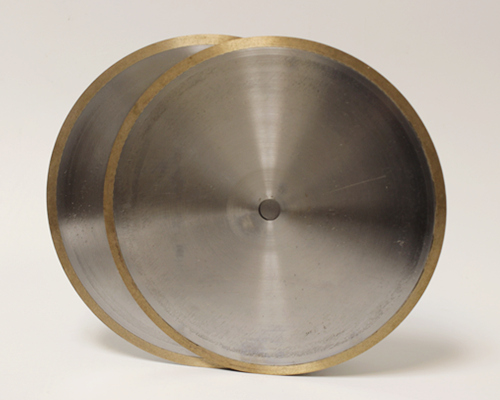

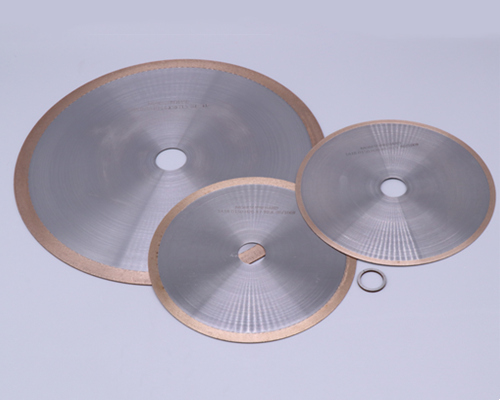

Metal diamond cutting wheels for glass cutting

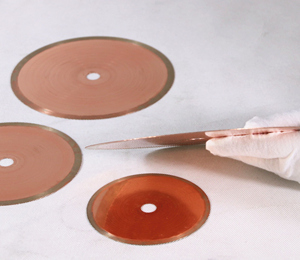

metal diamond cutting wheels for glass copper plated diamond glass cutting disc

Electroplated diamond cutting disc for marble, stone cutting

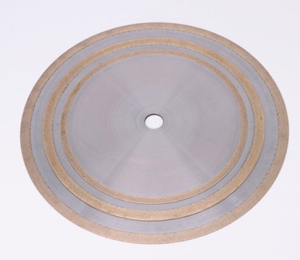

electroplated diamond cutting disc

Vacuum brazed diamond cutting disc for cast iron cutting

vacuum brazed diamond cutting disc



Drawing&Specification

1a1r diamond cutting wheels

D(mm)

T(mm)

U(mm)

H(mm)

X(mm)

4” /100

1

0.8

31.75

10

5”/ 125

1

0.8

31.75

10

6”/ 150

0.8 / 1

0.6 / 0.8

31.75

10

8”/ 200

1

0.8

31.75

10

12”/ 300

1 / 1.5

1.3

31.75

10

16”/ 400

2

1.8

31.75

10

* Other size can be design according to your requirement.
