Centerless Grinding Wheel, diamond & cbn centerless wheels

Application of centerless grinding wheel: grinding external of workpieces. Such as bearing, auto and auto ancillaries, cutting tools, stainless steel bar, alnico, High Speed Steel, Iron

Materials: Brown Aluminum Oxide, White Aluminum Oxide, Black Silicon Carbide, Green Silicon Carbide, diamond & cbn

Bond Type: Vitrified bond, Resin bond, Rubber bond

Diameter: 250mm - 750mm

For information about Diamond Centerless Grinding Wheel, please click herediamond centerless grinding wheel

Product Details

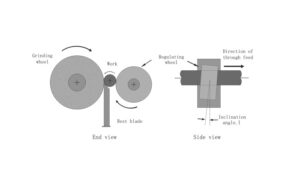

Centreless (centerless) grinding can perform excellent roundness of the work piece. The workpiece is supported by a work rest blade and set between a rubber regulating wheel that rotates the workpiece and a rotating grinding wheel. In centerless grinding, regulating wheel control and drive the workpiece, grinding wheel do the grinding effects on the workpiece.

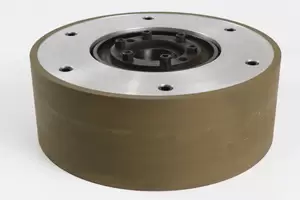

centerless grinding wheel



Applications of centerless grinding wheel, diamond cbn centerless wheel

Mainly used for grinding tungsten carbide, ceramics, magnetic material, stainless steel bar, PCD and PCBN compositives

Drawing&Specification

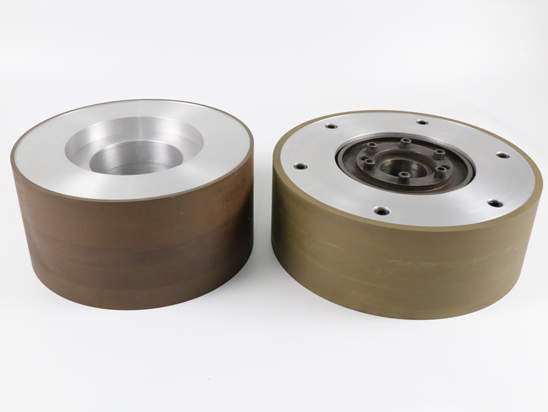

Diamond & CBN Grinding Wheels

Mainly used for grinding tungsten carbide, ceramics, magnetic material, stainless steel bar, PCD and PCBN compositives

centerless grinding wheel centerless grinding wheel

Model

Profile Sketches

Universally Spec.

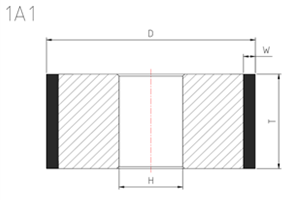

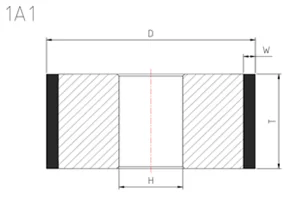

1A1

1A1 centerless grinding

1A1 D*T*H*X

D

125~600

T

50~350

H

75, 127, 203

X

5, 10

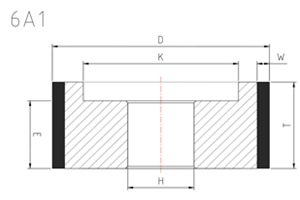

6A1

6A1 centerless grinding

6A1 D*T*H*X

D

125~600

T

50~350

H

75,127,203

X

5, 10

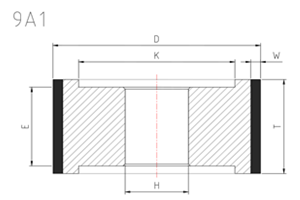

9A1

9A1 centerless grinding wheel

9A1 D*T*H*X

D

125~600

T

50~350

H

75,127,203

X

5, 10

Note:We can design and produce according to customers’ requirement.

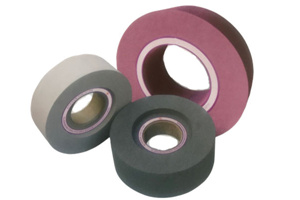

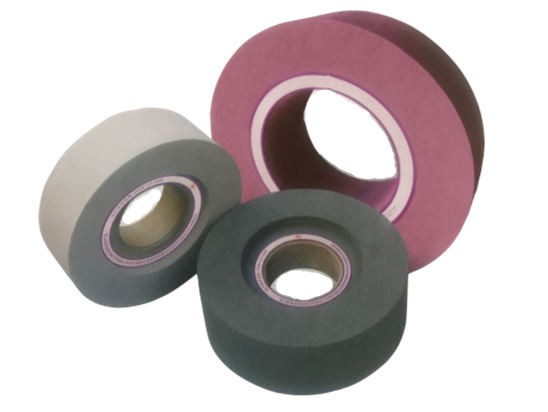

Conventional Centerless Grinding Wheel

centerless grinding wheel

D (mm)

T (mm)

H (mm)

250

100

321

300

100, 125

127

350

125, 150

127

400

100, 125, 150, 200

203

450

150, 200

203

500

100, 125, 150, 200, 300, 400

305

600

150, 200, 300, 400

305

750

100, 125, 150, 200, 300, 400

305

Other size can be design, according to customers’ drawing
