The Ultimate Solution for Grinding Crankshaft Post End Journals Using Ceramic CBN Grinding Wheels

In the manufacturing process of automotive engines, the crankshaft is hailed as the “heart” of the engine. Among all the machined features of the crankshaft, the rear end journal—situated near the flange end—is characterized by its relatively large diameter and typically serves as the seating for the oil seal; consequently, its machining precision directly determines the engine’s sealing performance and the stability of its power transmission.

Crankshaft Post End Journal Grinding: Important parts in Crankshaft Machining

In the grinding process for automotive engine crankshafts, the machining of the post end journal (also known as the gear journal) often presents the greatest technical challenge. As this section is situated immediately adjacent to the flange, features a large diameter, and typically serves as the seating surface for an oil seal, manufacturing operations frequently encounter the following technical hurdles:

Surface Roughness Consistency: Even the slightest vibration marks or spiral patterns can create potential risks of oil leakage.
Thermal Stress Control: Materials such as gray cast iron are highly susceptible to thermal damage when subjected to high-speed grinding.
Excessive Non-Productive Time: Traditional grinding wheels experience rapid wear; consequently, the frequent need for wheel dressing results in high machine downtime rates.

Core Advantages of Ceramic CBN Grinding Wheels for Machining Rear Crankshaft Journals

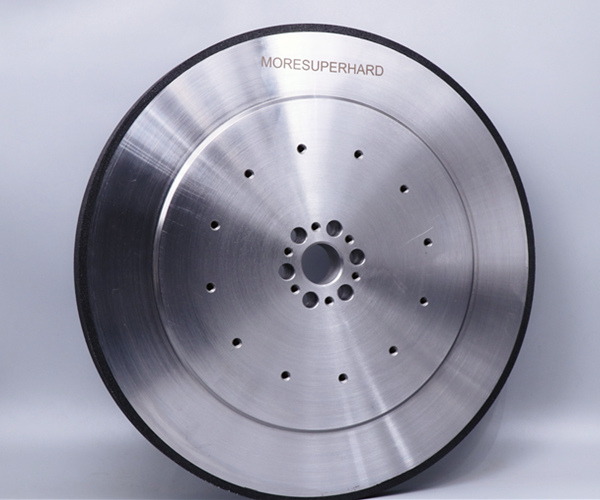

To address the aforementioned pain points, ceramic-bonded CBN grinding wheels (Vitrified CBN Wheels) have emerged as the industry-recognized optimal solution. The core rationale lies in the following factors:

Exceptional Self-Sharpening Capability and Porosity: These properties ensure that—even at high peripheral speeds of 90 m/s—the grinding wheel maintains ample chip clearance. When combined with pure oil cooling, this effectively minimizes grinding forces and reduces thermal impact.

Hardness and Form Retention: The high hardness of the CBN abrasive ensures the stability of the fillet radius (R-angle)—a critical factor for maintaining precise geometric tolerances on the rear crankshaft journal.

Junker JUCRANK Production Line Application Solution

To provide you with a more intuitive understanding of the actual performance of vitrified CBN grinding wheels, we have compiled real-world mass production data obtained from a Junker JUCRANK (35kW) grinding machine. This solution utilizes a ceramic bond formulation specifically designed for high-hardness gray cast iron.
