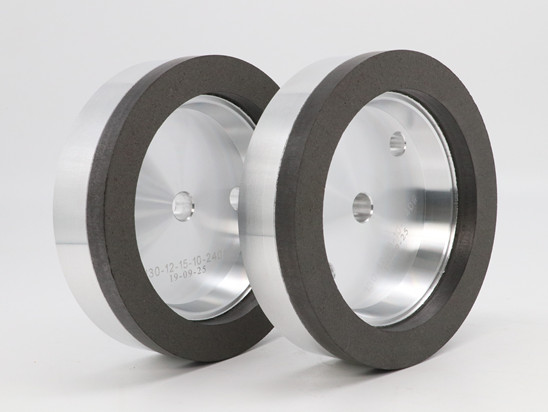

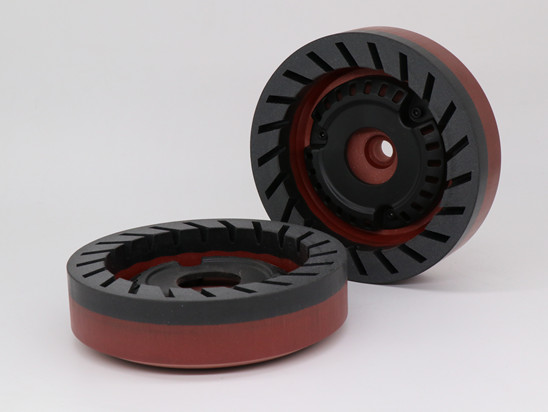

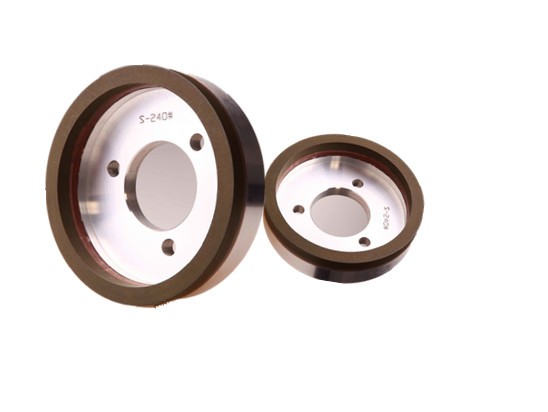

Resin Diamond Cup Grinding Wheel for Glass

Diamond cup wheel is suite for Flat glass, safety glass, tempered glass, architectural glass, frosted glass, patterned glass, Insulated glass, laminated glass, glass brick, optical glass, Auto Glass, solar glass etc

For Glass grinding edging, for coarse grinding, middle grinding and fine grinding etc

Used for Straight edge machine, beveling machine, bilateral machine,Numerical control machine, such as Bavelloni, Bottero, Glassline, Schiatti, etc

Send E-mail Inquiry

Product Details

Resin diamond cup grinding wheel is suit for Flat glass, safety glass, tempered glass, architectural glass, frosted glass, patterned glass, Insulated glass, laminated glass, glass brick, optical glass, Auto Glass, solar glass etc
For Glass grinding&edging, for coarse grinding, middle grinding&fine grinding etc
Used for Straight edge machine, beveling machine, bilateral machine,Numerical control machine, such as Bavelloni, Bottero, Glassline, Schiatti, etc

Advantages of resin bond diamon cup wheel
1. Little mold consumption
2. Good abrasion resistance
3. Long working life

Case of resin diamond cup wheel for architecture glass edge grinding

Diamond grinding wheel	Resin diamond cup wheel
Size of diamond grinding wheel	160D80T22H
Grit	#600 – #1500	Rough grinding (if there are deep scratches)： recommended to start from #600 to remove scratches and ensure flatness quickly.
		Finishing (main process) : recommended to use #800 or #1000. for removing fine scratches and achieving a “normal glass surface state”, combining efficiency and effectiveness.
		Ultra-fine finishing (optional): higher requirements are needed; #1500 can be used for polishing transition at the end to achieve a more delicate surface.
Grinding parameters	Single cutting depth	0.005 – 0.01 mm
	Total removal	0.02 – 0.05 mm
	Feed speed	500 – 1500 mm/min
	coolant	Water-based coolant

Drawing&Specification

Name	D (mm)	W (mm)	T (mm)	H (mm)	Grit (#)
Diamond Giringing Wheel – Full Segment	175	15	10	12/22/50/ Other	80#/100#/180#/200#/240#/300#/400#
	150	15	10
	130	10	10
Diamond Giringing Wheel – Internal Segment	175	8	10
	175	15	10
	150	10	10
Diamond Giringing Wheel – Continuous	150	8	8
	150	6	10
	130	10	10
	130	8	8
Diamond Giringing Wheel – Outer Segment	150	8	10
Diamond Giringing Wheel – Resin	150	15	12
	150	15	10
	130	10	10
