Glass wheel for double straight line edger
– Metal bonded cup wheels

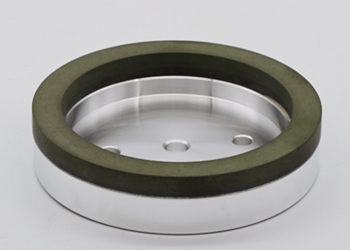

– Resin-bonded cup wheels
– 10S40 10S60 chamfer wheel
– CE-3 polishing wheel
Product Details

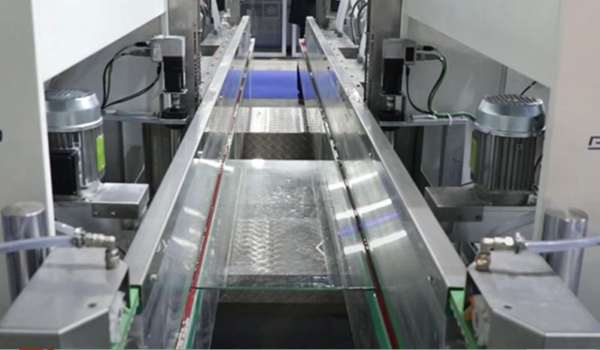

Double straight line edger is processing double straight flat edge of flat glass,Laminated glass edge, the glass transfer speed up to max 30 meters/min.
Match Machine:
Moresuperhard diamond wheel is suitable Straight line edging machines from Italy, Germany, UK, USA, China, Such as: Bavelloni, Neptun, Glaston, Besana, Bottero, ADA, FMF, CAU, Zafferani, Busetti, CMS, Schiatti, Bovone, Lattuada, Busetti, Lovati, Vitrododi, Somaca/Crl, Enkong, Suntech, Fushan, Baudin, Bodo Gerhard, CMS Brembana, Zanetti, GME, Covesa, Golive, Champion, Ivaco, Linshi, Beijiang, Deway, New Mainland, Folga, Hiseng, Leiyang, Juncai, YG, YH, ZXM, Ritong, Grateful, Sunrising, Deman.
Processing:
Rough grinding – grinding – fine grinding – chamfering – film polishing – safety chamfering. It is more advantageous in processing large size and thick glass.
Diamond wheels:

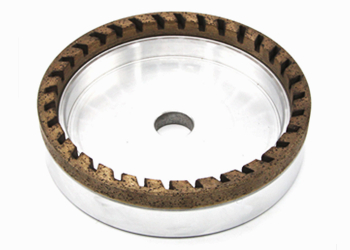

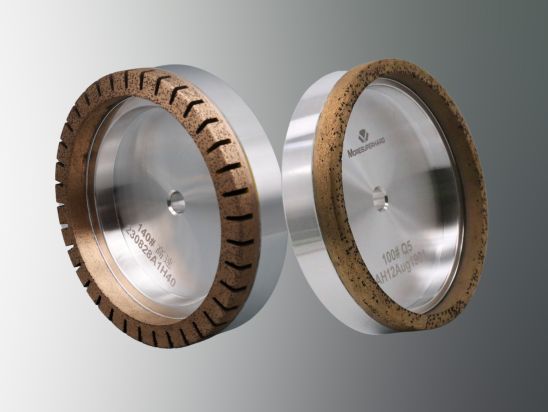

– metal bonded cup wheels

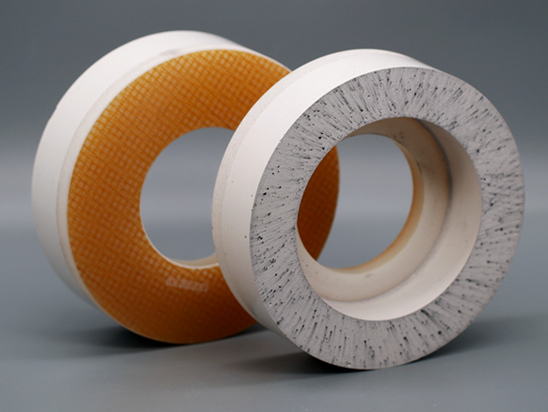

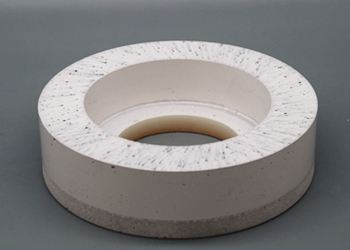

– resin-bonded cup wheels
– 10S40 10S60 chamfer wheel
– CE-3 polishing wheel
Grinding recommendation:
* The maximum remove amount of one side can reach 10mm, and the thickness of the processed glass is up to 50mm(multi-layer laminated safety glass), which can meet running speed of 5-20 meters/minute in all glass deep processing .
* Adjust the position of the three diamond wheels can obtain the appropriate grinding amount, if the single side of the glass grinding amount of 1.5mm, Pos1#, 2#, and 3# diamond wheel bear 0.6mm, 0.6mm, 0.3mm grinding amount respectively.
* Pos. 1 and No. 2 diamond wheels for more remove amount, because they use bronze bonding, with high grinding force and durable.
* Pos. 3 grinding wheel uses resin binder, with finer grain size, so the remove amount less.
* If the remove amount is not distributed reasonably will make the diamond wheel consume faster, even cause the glass breaking.
Glass thickness:
| Glass thickness | Maximum grinding allowance
|
Fine grinding max speed | MORESUPERHARD Grinding wheel Standard |
| 4-6mm | 1.5mm | 15m/min | Glass edge brightness is uniform, no falling edge, no falling corner |
| 8-10mm | 1.5mm | 14m/min | |
| 12mm | 2mm | 12m/min |
Glass Diamond Grinding Polishing Wheels for Double Edging Machine
| Product | Size(mm) | Hole | Grit(#) |

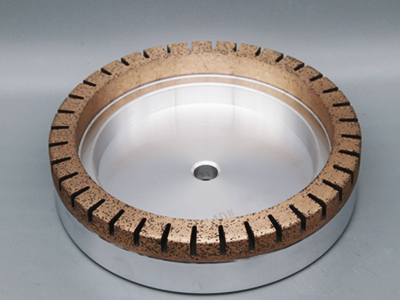

| Full segmented
|
130*10*10 | 12/50 | 80, 100, 140, 180, 200 |
| 150*10*10 | 12/50 | 80, 100, 140, 180, 200 | |
| 150*15*10 | 12/50 | 80, 100, 140, 180, 200 | |
| 175*12*10 | 12/50 | 80, 100, 140, 180,, 200, | |
| 175*15*10 | 12/50 | 80, 100, 140, 180, 200 | |
| Out segmented
|
130*10*10 | 12/50 | 100, 140, 180, 230 |
| 150*10*10 | 12/50 | 100, 140, 180, 230 | |
| 150*8*10 | 12/50 | 100, 140, 180, 230 | |
| 150*6*12 | 12/50 | 100, 140, 180, 230 | |
| 175*8*10 | 12/50 | 100, 140, 180, 230 | |
| Inner segmented
|
130*10*10 | 12/50 | 140, 170 |
| 150*10*10 | 12/50 | 140, 170 | |
| 150*8*10 | 12/50 | 140, 170 | |
| 150*6*12 | 12/50 | 140, 170 | |
| 175*8*10 | 12/50 | 140, 170 | |

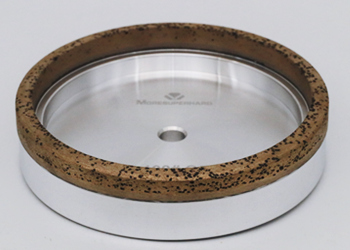

| Full rim Metal bond Cup wheel
|
130*8*8 | 12/50 | 80, 100, 140, 180, 240 |
| 130*8*10 | 12/50 | 80, 100, 140, 180, 240 | |
| 150*8*8 | 12/50 | 80, 100, 140, 180, 240 | |
| 150*8*10 | 12/50 | 80, 100, 140, 180, 240 | |
| 100*10*10 | 12/50 | 80, 100, 140, 180, 240 | |
| 130*10*10 | 12/50 | 80, 100, 140, 180, 240 | |
| 150*10*10 | 12/50 | 80, 100, 140, 180, 240 | |
| 150*10*12 | 12/50 | 80, 100, 140, 180, 240 | |
| 175*10*10 | 12/50 | 80, 100, 140, 180, 240 | |
| 175*10*12 | 12/50 | 80, 100, 140, 180, 240 | |
| Full rim Resin bond Cup wheel bottom chamfer
|
130*10*10 | 12/50 | 180, 240, 320 |
| 150*10*10 | 12/50 | 180, 240, 320 | |
| 130*15*10 | 12/50 | 180, 240, 320 | |
| 130*15*15 | 12/50 | 180, 240, 320 | |
| 150*15*10 | 12/50 | 180, 240, 320 | |
| 150*15*15 | 12/50 | 180, 240, 320 | |
| 175*15*10 | 12/50 | 180, 240, 320 | |
| 175*15*15 | 12/50 | 180, 240, 320 | |
| 175*15*15 | 12/50 | 180, 240, 320 | |
| BK polishing wheel
|
130*60*35 | 40, 60, 120, 180 | |
| 150*70*40 | 40, 60, 120, 180 | ||
| CE3 polishing wheel
|
150*70*40 | ||
| 10S glass polishing wheel
|
130*60*35 | 46, 60, 80 | |
| 150*70*30 | 46, 60, 80 | ||
| 150*70*40 | 46, 60, 80 | ||
| X5000 wheel for glass polishing
|
150*70*40 |

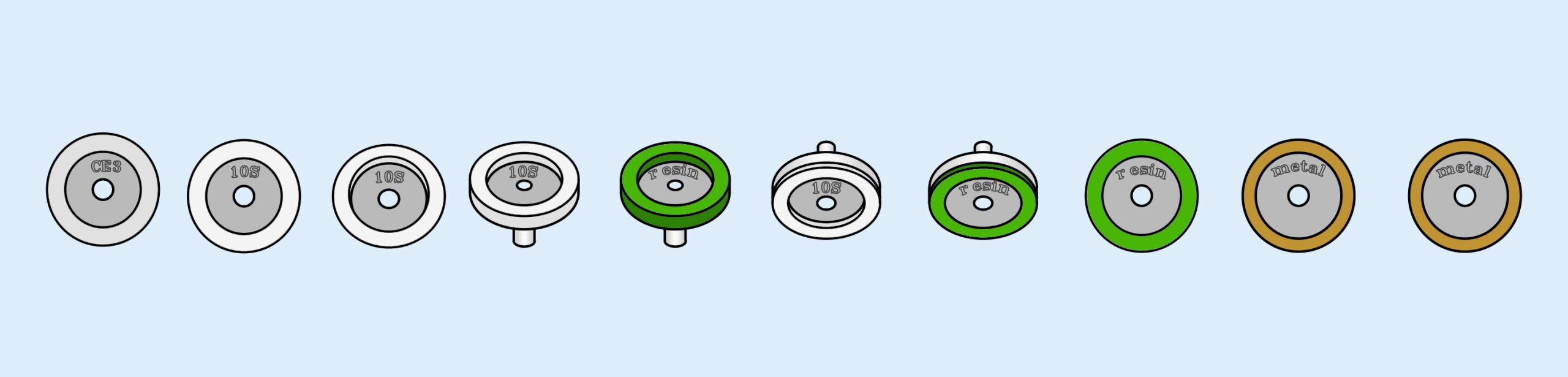

Drawing&Specification
| Machine |
Position |
Wheel type |
Size |
Hole(mm) |
Grit(#) |
Application |
|
Double straight line edge machine
|
1 | Intensive full segmented diamond wheel | 175x15x10 | 12 | 100 | Rough |
| 2 | Intensive full segmented diamond wheel | 175x15x10 | 12 | 140 | Rough | |
| 3 | Resin cup wheel | 150x15x10 | 12 | 240 | Fine | |
| 4,6 | Resin cup wheel | 130x15x10 | 12 | 240 | Chamfer | |
| 5,7 | 10S40 | 130x35x60 | 40 | Bottom Chamfer | ||
| 8 | 10S40 | 150x40x70 | 40 | Rough polishing | ||
| 9 | 10S60 | 150x40x70 | 60 | Rough polishing | ||
| 10 | CE-3 | 150x40x70 | Fine polishing |
