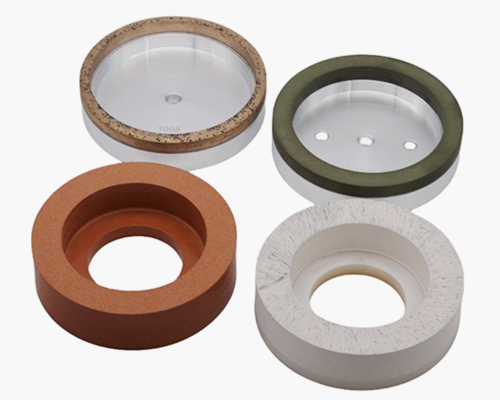

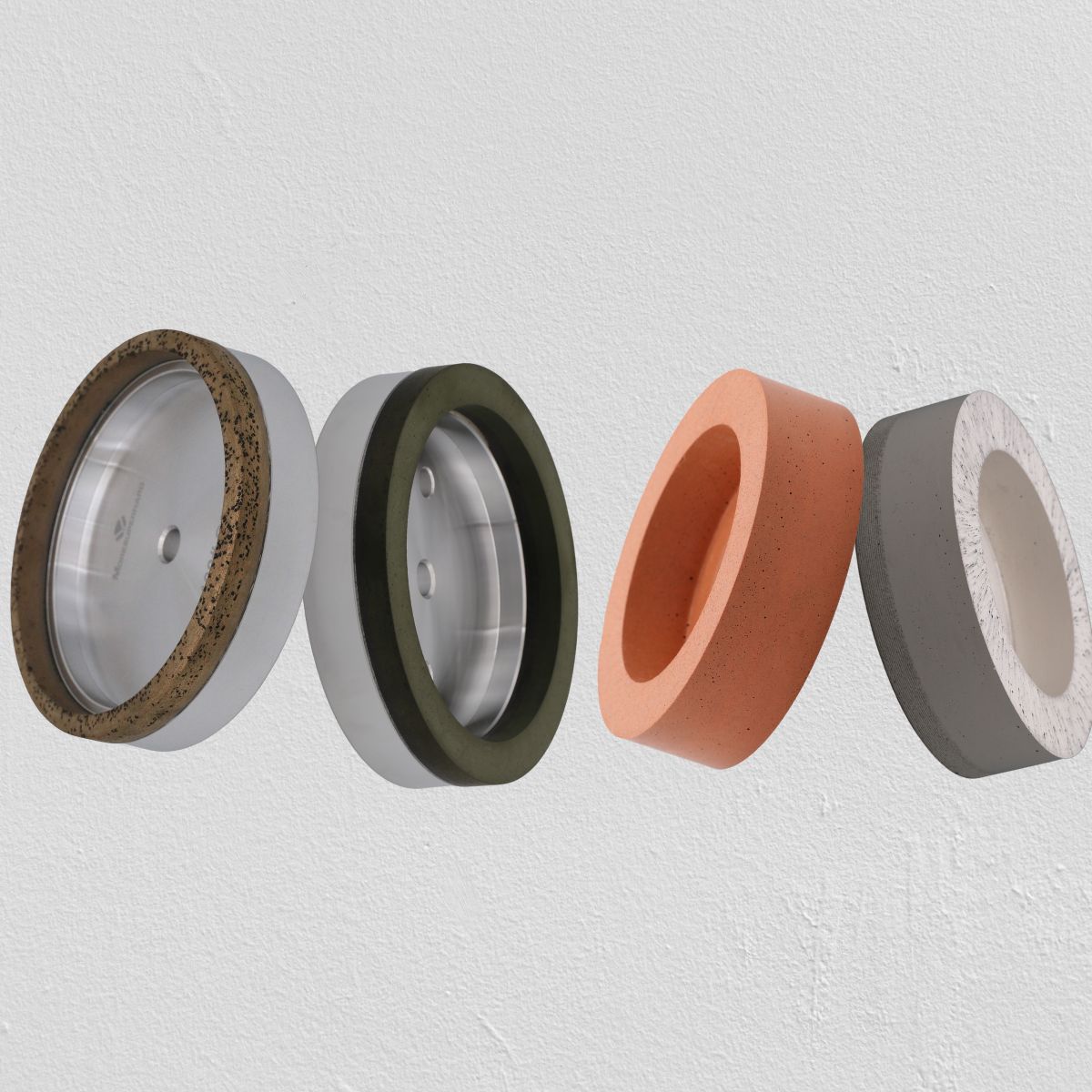

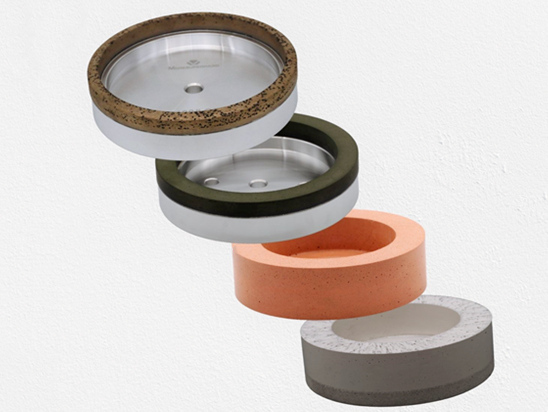

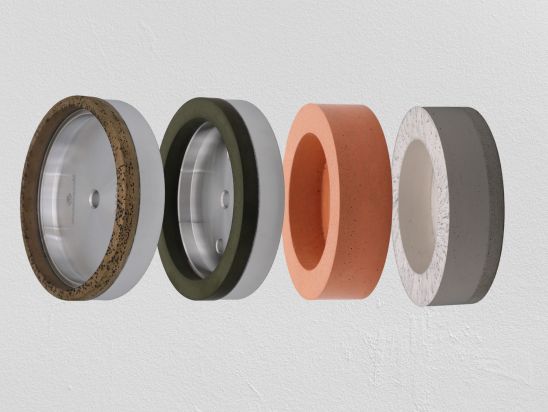

Glass cup wheels for Straight line edger

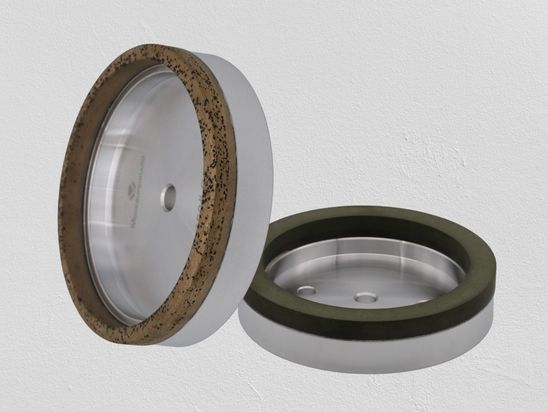

Metal diamond cup grinding wheel for rough grinding
Resin diamond cup grinding wheel for semi-fine grinding
BD, BK, CE3, 10S wheel for polishing
Match different brands Straight line edger
Glass edging refers to grinding the glass cutting edge with coarse, medium and fine processing, polishing and cleaning, so that the broken edge of the glass is smooth and does not sting, and the glass cutting surface is bright like a mirror. Edge grinding is the most important production link to improve the tempered product rate, the quality of edge grinding directly affects the damage rate of tempered glass and the beauty of glass products.
MORESUPERHARD is professional manufacture of metal diamond cupwheels, resin diamond cup wheel, 10S40 60 80 wheels, CE-3 wheels for grinding glass, straight edge, chamfer, polishing and a series of processing all types of architecture glass, float glass, safe laminated glass, which is suitable for almost all existing Straight line edging machines from Italy, Germany to China of sophiscated automatic machines to manual operation machines.

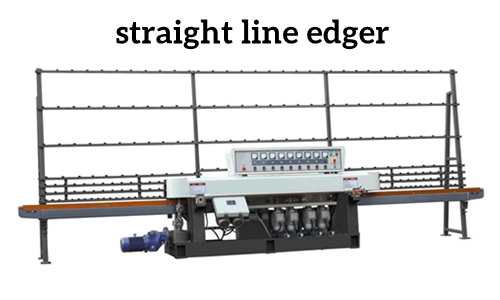

Machine:
Glass Straight-line edging Machine is suitable for grinding straight edges and 45° edges of flat glass of different sizes and thicknesses.

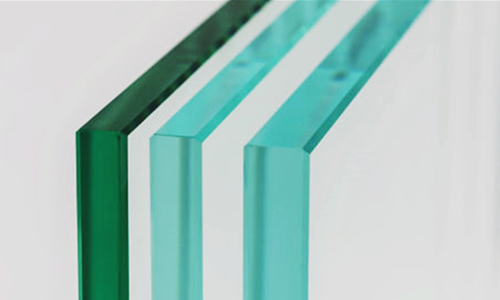

Glass:
According to the different processing requirements of the glasses, customers can choose different grits. Workable glass thickness:3-19mm, maximum grinding size for bottom edge: 3mm, maximum grinding size for chamfering: 3mm.
Grinding wheel combination:
* Continuous grinding, high production efficiency
* Large flat glass without Non-chipping edge finish

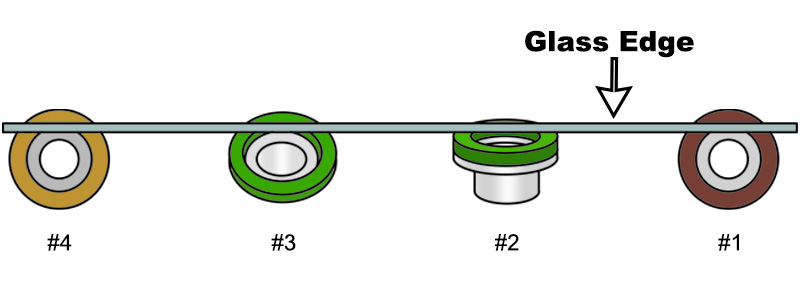

Below share is installation sequence is the general glass edging equipment, different machine according to their specific circumstances.
Machine |
Position |
Grinding wheel |
Size |
Hole |
Grit |
Straight edge machine
|
1 | Metal Diamond cup wheel | 150*12*8*10 | 12 | 100 |
2 | Metal Diamond cup wheel | 150*12*8*10 | 12 | 240 | |
3,5 | Chamfer resin cup wheel
|
130*10*10 | 12 | 240 | |
4,6 | Chamfer 10S40 wheel | 130*35*60 | 40 | ||
7 | Resin cup wheel | 150*10*10 | 12 | 240 | |
8 | 10S40 | 150*70*40 | 40 | ||
9 | CE-3 | 150*70*40 |
