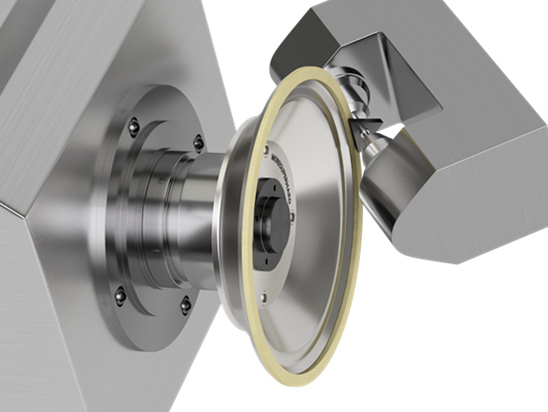

Peripheral Diamond Wheel for Indexable Inserts especially CBN inserts

Peripheral Diamond Grinding wheels are used for indexable inserts grinding (tungsten carbide inserts, ceramic inserts, Cermet, CBN inserts)

Model: 6A2T, 6A2M, 11A2B, 12A2T

Grinding Machine: WENDT, WAIDA, AGATHON, EWAG, COBORN, etc.

Product Details

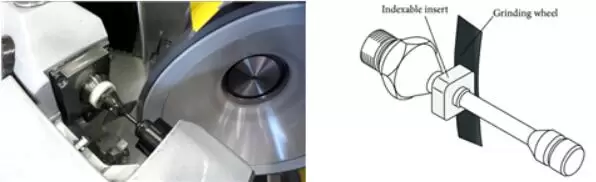

Application Of Peripheral Diamond Grinding Wheels
Mainly used for precise edge grinding of indexable inserts, tungsten carbide inserts, ceramic inserts, CBN inserts.
Materials of workpiece: tungsten carbide, ceramics, metal ceramic  PCD/ PCBN inserts, etc.

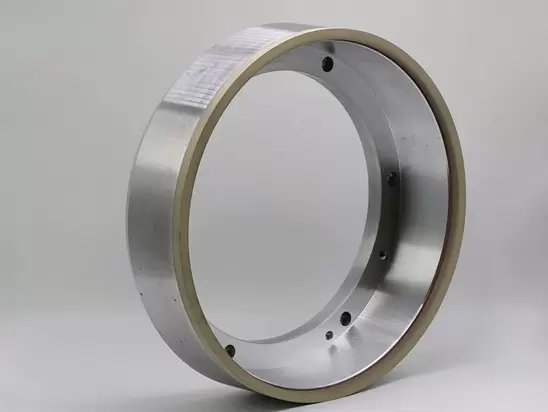

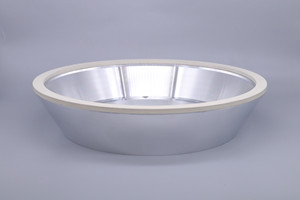

vitrified diamond grinding wheel for peripheral inserts

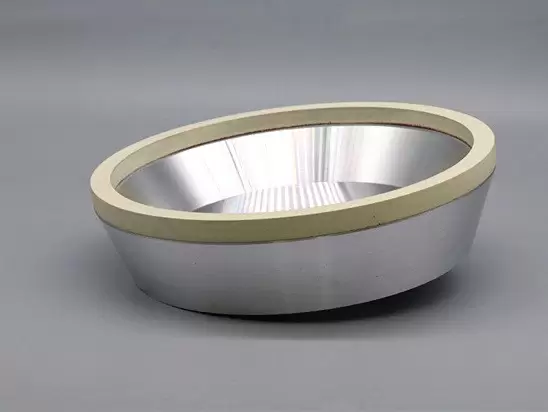

vitrified diamond peripheral wheels

Peripheral Diamond Grinding wheels for indexable inserts, must be of a high level of geometrical accuracy, with ability of significant material removal. We are able to produce various types wheels to suit all popular machines, such as WENDT, WAIDA, AGATHON, EWAG, COBORN, etc.

Applicable Machines Of Peripheral Diamond Wheels

AGATHON
400 Series: 400 PENTA, 400COMBI, 400SEMI, 400PERI.
350 Series: 350T B, 350COMBI
250 Series: PA250
AGATHON 400 PENTA 5-axis insert grinder is a fully automatic grinding center of the latest generation providing increased efficiency for insert production, the wheels used on AGATON are up to 400mm diameter. Which can grind most tool geometries with flexible clamping system. AGATHON laser machine can reduce the PCD processing time when make tool insert rough cutting, which can take place the rough grinding sometimes.

WENDT
400 Series: WAC715, WAC735
350 Series: WAM336

WAIDA
AP460E

EWAG EWAMATIC LINEAR
The grinding wheel used on EWAG, diameters of up to 500mm, can reduce 50% produce than their traditional grinding machine which use 250mm diameter wheels. The EWAMATIC LINEAR is a high-precision grinding machine which manufacture tools, indexable inserts and rotationally-symmetrical tools in PCD,PCBN and other hard metal. Year 2018, UNITED GRINDING offers it’s EWAG PROFILE LINE, The machine integrates both EWAG ProGrindg and WALTER HELITRONIC TOOL STUDIO into it’s FANUC control unit to further expand the range of applications and improve insert geometries.


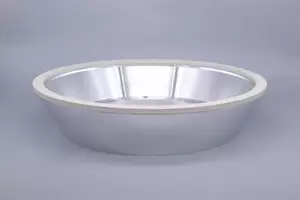

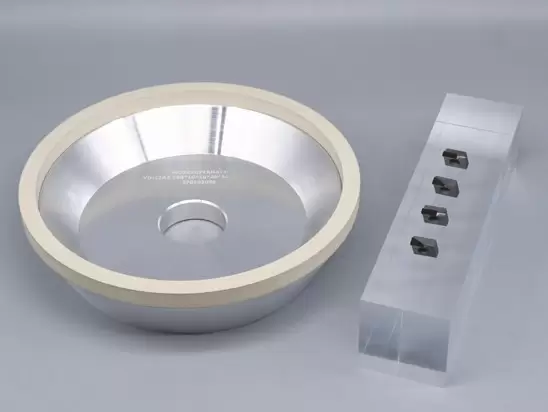

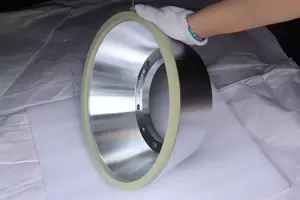

vitrified diamond peripheral wheel peripheral diamond grinding wheel

Drawing&Specification

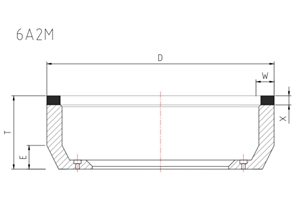

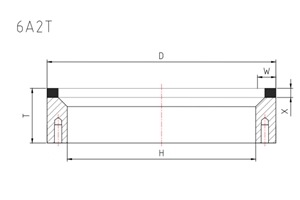

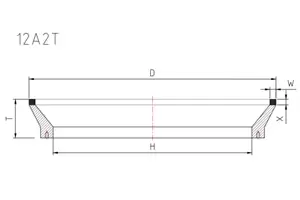

Models And Profile Drawings Of Peripheral Diamond Wheels

6a2 diamond wheel6a2 diamond wheel

11a2 diamond wheel12a2 diamond wheel

Model

Suitable Machine

D(mm)

H(mm)

W(mm)

T(mm)

X(mm)



WAIDA:AP460E

200

60

6,8,10,12

45

6



Wendt:400 Series

400

336

6,8,10,12,15

39

6



Agathon:350 Series

350

200

6,8,10,12,15

27

6



Agathon:400 Series

400

340

6,8,10,12,15

28

6

6A2H

EWAG WS Series

Coborn

150

40

4 6 10 15 20

40

5 6 8 10

2A2T

WENDT WCD

350

310

5 10 17.5

45

6

Other size can be produced according to customers’ requirement

Case of peripheral grinding wheel

Vitrified bond Diamond Wheel for PCD Peripheral Grinding

Wheel size

11A2-Ø200-W10-X10-H40

Wheel grit

D16 C125

Wheel speed

12M/S

Coolant

Oil

Machine

EWAG Compact line

Press

feed on pressure at 130-140 Nm

Work life

0.007mm/plate
