Diamond Wheel for Single Crystal Diamond ( Coborn PG3 grinder)Diamond Wheel for Single Crystal Diamond ( Coborn PG3 grinder)Diamond Wheel for Single Crystal Diamond ( Coborn PG3 grinder)
Diamond Wheel for Single Crystal Diamond ( Coborn PG3 grinder)Diamond Wheel for Single Crystal Diamond ( Coborn PG3 grinder)Diamond Wheel for Single Crystal Diamond ( Coborn PG3 grinder)

Diamond Wheel for Single Crystal Diamond ( Coborn PG3 grinder)

Customized PCD & CBN & CVD cutting, grinding, sharpening, brazing, regrind and retipped solution and service

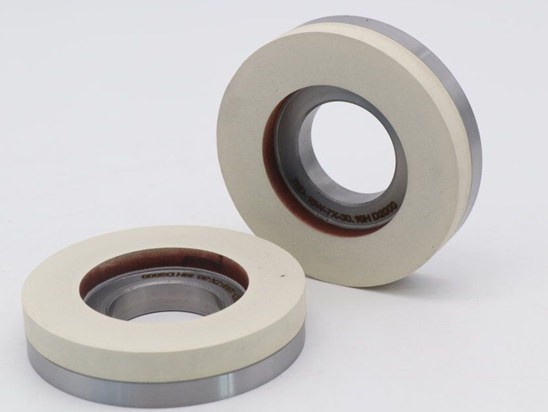

1A2 diamond wheel for finish grinding single crystal diamond

Product Details

PCD and CBN cutting tools are widely used in metal cutting and processing nowadays. Single crystal diamond Coborn PG3 planet grinder, it is suitable for manufacturing Low or controlled ripple mark, radius tool, and multi-faceted cutting tools, circular cutting tools.“More Super Hard Products” devotes to offer an efficiency and economic solution in PCD and CBN cutting tools grinding.

Suitable PCD Grinding Machines: COBORN,EWAG, ANCA, FARMAN, MYTECH...

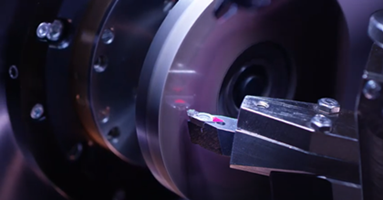

diamond wheels for single crystal cutting tools  diamond wheels for single crystal cutting tools

Application Of Diamond Wheel for Single Crystal Diamond

Diamond grinding wheels are used for grinding PCD cutting tools, PCBN cutting tools, CVD tools, MCD tools, milling cutter, reamer, drill and regrinding, etc .It can be used for making facetted and convex radius tools using : natural diamond , HPHT, synthetic diamond, CVD synthetic diamond. It is mainly used for grinding high precision natural diamond tool, micro milling cutter, micro nano pressure head and micro nano probe, etc.

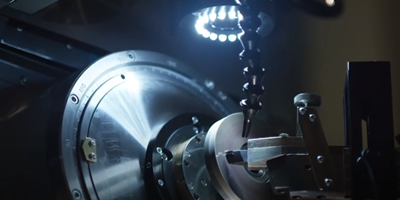

diamond wheels for single crystal



Vitrified Bond Diamond Grinding Wheel

For natural diamond (MCD) or synthetic single crystal diamond (SCD)cutting tools.

cutting tools cutting tools

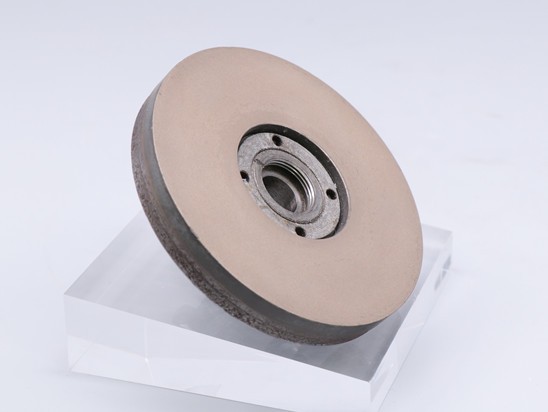

Metal Bond Diamond Grinding wheel

Natural (MCD) or synthetic single crystal diamond (SCD), manufactured by either high pressure high temperature (HPHT) or chemical vapour deposition (CVD). Metal bond diamond wheel can used for single crystal diamond tool manufacture with ultra-high precision.

cutting tools cutting tools

Resin bond diamond wheel

For Sapphire or Rubin polishing with super small grain size.



Drawing&Specification

Model

D(mm)

T (mm)

H (mm)

W (mm)

X (mm)

1A2

86

12

30.16

25 5.5

75

16

30.16 15 7.5

85

12

30.16

20

5.5

Grit: 325/400, W10 (1500#), W5 (3000#), W3 (5000#) 2000# 3000# 10000# 15000# 20000#

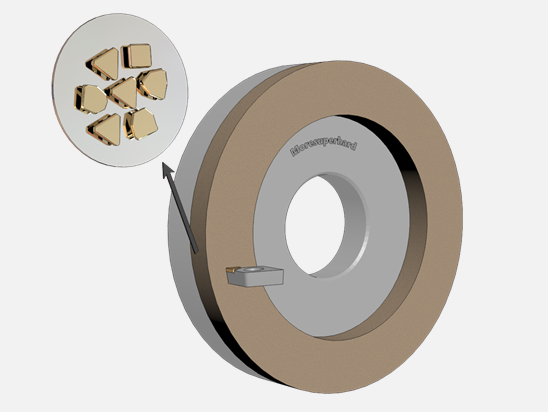

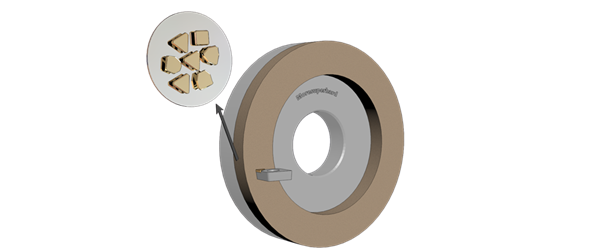

Application Example: PCD Inserts Grinding Vitrified Bond Diamond Grinding Wheel

Grinding machine

EWAG EasyGrind

Coolant

Emulsion

Workpiece

PCD insert (brazed, include carbide )

Grinding Parameters

Feed Rate

Vf = 2mm/min

Stock

0.3mm

Cutting Speed

Vc=15m/s

Advantage

1, 35%-time savings
2, 20% working life time increase
3, Chipping < 10μm
