Bevel Grinding Wheel for gear

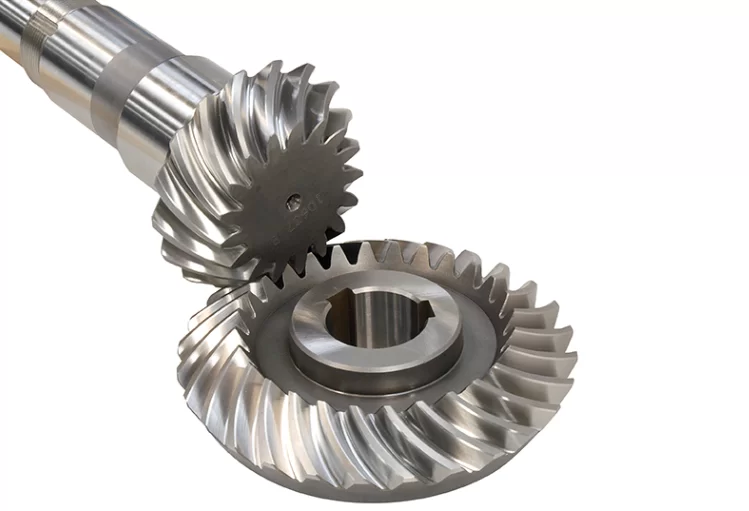

What is bevel gear?

Bevel gear is generally defined as a gear with a conical appearance and teeth engraved on the conical surface. Two axes intersecting at a point are called cross-axes. Bevel gears are commonly used in devices such as automotive differentials, industrial machinery, and printing equipment. Furthermore, bevel gears have a power transmission efficiency of approximately 98-99%. Bevel gears are categorized by tooth line type into spur bevel gears, spiral bevel gears, zero-degree bevel gears, and hypoid bevel gears.

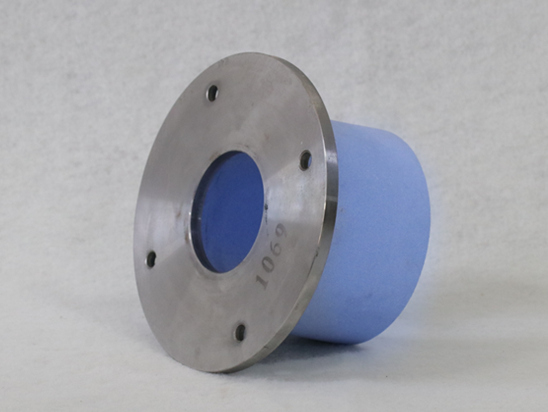

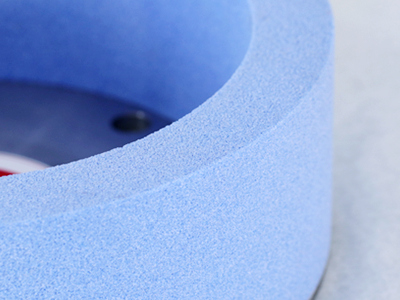

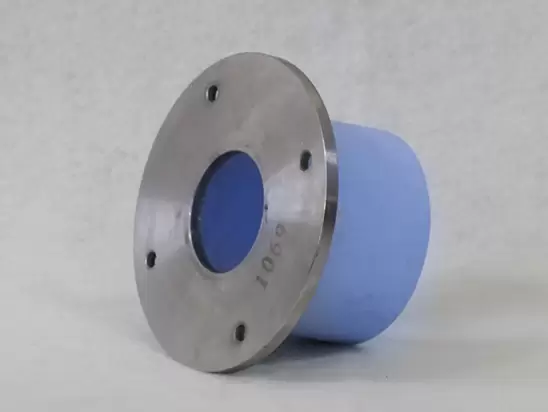

SG grinding wheels for grinding bevel gears

High production bevel gear grinding wheel， can effectively reduce gear surface roughness, correct tooth surface curvature, correct contact area, so as to improve meshing transmission.

The profile modification of grinding wheel before grinding directly determines the profile of tooth surface after grinding.

Match Machines：Klingelnberg, Gleason, Dr. Wiener,…

Features of Moresuperhard SG grinding wheel:

* MORESUPERHARD grinding wheels can perform high-precision grinding on the tooth surfaces of gears, enhancing their accuracy and surface quality

* Improve the surface finish of gears, reduce surface roughness, improve the utilization of gears.

* SG grining wheel with good shape retention, long dressing cycle, it can improved processing efficiency

* Compare with HERMES, 3M and Gleason, MORESUPERHARD grinding wheelswith higher cost performance.

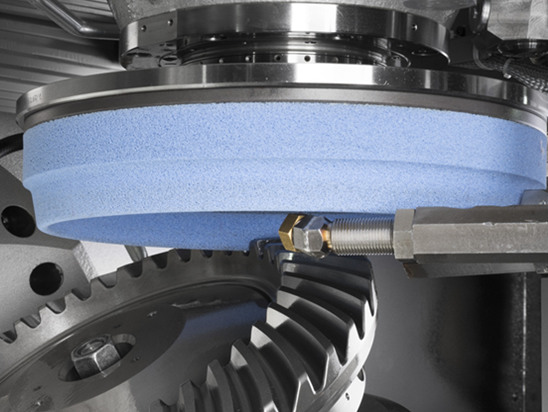

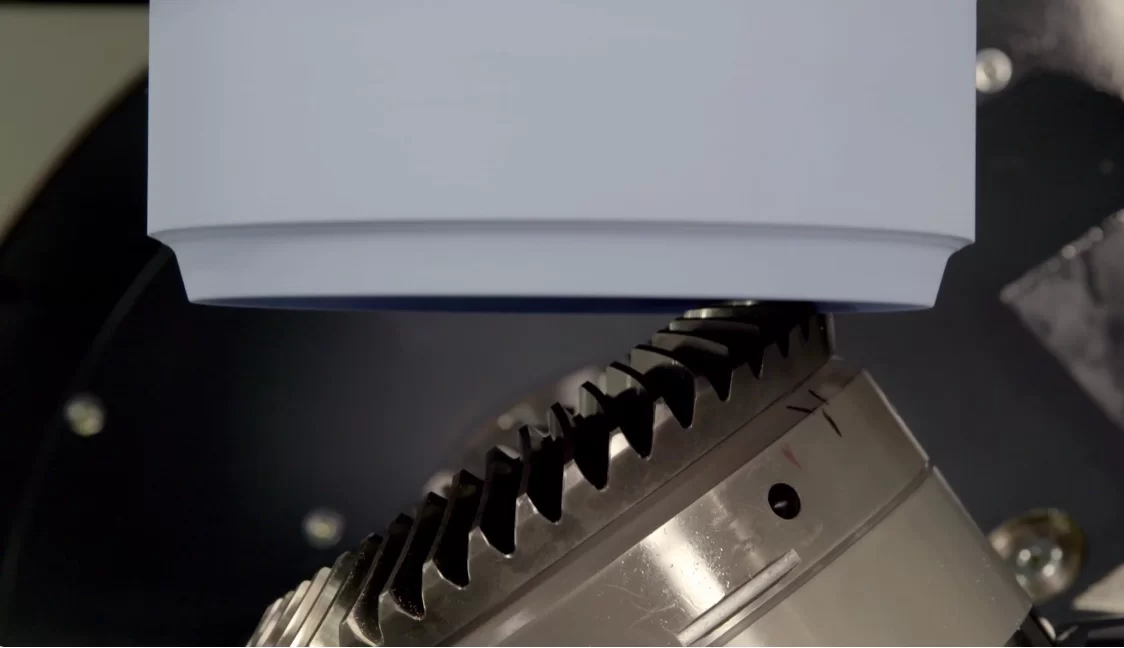

Case of SG grinding wheel for bevel gear

Specification of SG grinding wheel for bevel gear
