Metal Diamond Cup Grinding Wheel for Architectural And Furniture Glass
High strength, high precision
Good abrasion resistance
Little mould consumption
Can match various Double Eding Grinding Machine and Straight Line Beveling Machine, such as INTERMAC, CMS Glass Machine, Bavelloni,etc
Product Details

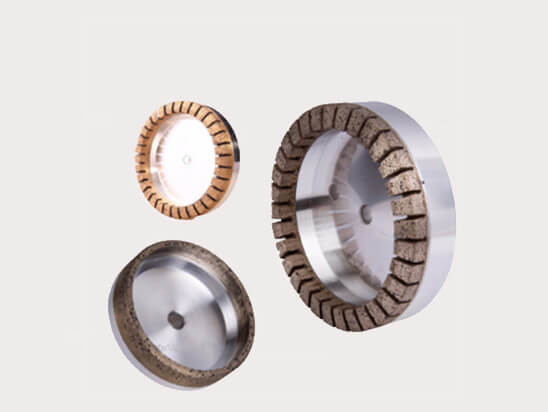

Metal cup wheels, with continuous, segmented and semi segmented rim, for flat edge grinders and beveling machines.
Application of metal bond diamond cup wheels
For edging, coarse grinding, middle grinding and fine grinding of architectural and furniture glass.

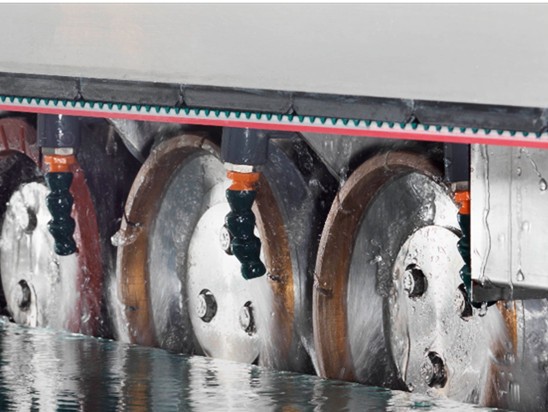

Applicable Glass Grinding Machine
Straight edge machine, beveling machine, bilateral machine, numerical control machine,such as Bavelloni, Bottero, Glassline, Schiatti,etc.
Advantages of diamond cup wheel
1. High strength, high precision
2. Good abrasion resistance
3. Little mould consumption
Drawing&Specification
| Full segment diamond wheels | |||||
 |
Diameter(mm) | Width (mm) | Height
(mm) |
Inner Hole (mm) | Grit # |
| 150 | 10 | 10 | 12,22 ,50 | 80,100,150 200,240 300, 400 | |
| 150 | 15 | 10 | 12,22,50 | ||
| 175 | 15 | 10 | 12,22,50 | ||
| Internal segment diamond wheels | |||||
 |
Diameter (mm) | Width (mm) | Height
(mm) |
Inner Hole (mm) | Grit # |
| 150 | 10 | 10 | 12 22 50 | 80,100,150 200,240 300, 400 | |
| 175 | 15 | 10 | 12 22 50 | ||
| Continuous diamond wheels | |||||
 |
Diameter (mm) | Width (mm) | Height
(mm) |
Inner Hole (mm) | Grit # |
| 130 | 8 | 8 | 12 22 50 | 80,100,150 200,240 300, 400 | |
| 130 | 10 | 10 | 12 22 50 | ||
| 150 | 8 | 8 | 12 22 50 | ||
| 150 | 10 | 10 | 12 22 50 | ||
