Dressing Solutions for SG Bevel Grinding Wheels

In the high-precision world of aerospace, automotive (especially EV drivetrains), and industrial machinery, bevel gear grinding demands extreme accuracy and surface integrity. To meet these demands, SG (Seeded Gel) abrasive wheels—also known as ceramic micro-crystalline abrasives—have become the industry benchmark.

However, the very properties that make SG wheels superior—their extreme hardness and self-sharpening micro-fracturing mechanism—present significant dressing challenges. This technical guide explores why CVD (Chemical Vapor Deposition) diamond rollers are the essential solution for optimizing SG wheel performance.

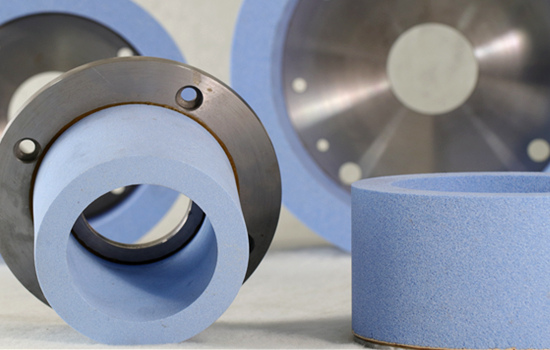

Applications of Bevel Grinding Wheels

In the precision machining industry, a Bevel Grinding Wheel (also known as a Tapered Grinding Wheel or Conical Grinding Wheel) is the critical cutting tool used on CNC gear grinding machines to shape spiral bevel and hypoid gears.

When formulated with SG (Seeded Gel) ceramic abrasives, these wheels offer unparalleled performance in high-stakes industrial applications, especially when paired with top-tier machinery such as Gleason Phoenix or Klingelnberg Oerlikon series.

1. Precision Finishing of Spiral Bevel & Hypoid Gears

This is the primary application for bevel grinding wheels.

• The Process: After gears undergo carburizing and quenching (heat treatment), they often suffer from micro-distortions. Bevel grinding wheels are used for “Hard Finish Grinding” to remove these distortions and achieve extreme geometric tolerances.

• Key Requirement: The wheel must maintain profile stability. Because the contact area of a bevel gear is a complex enveloped surface, the wheel must wear uniformly. SG abrasives, dressed by CVD rollers, ensure consistent tooth geometry from the first work-piece to the last.

2. “Zero-Defect” Aerospace Gear Manufacturing

In helicopter main gearboxes and aero-engine accessory drives, bevel gears are life-critical components.

• Focus on HAZ: A major priority is strictly controlling the Heat Affected Zone (HAZ) during grinding.

• The SG Advantage: The extreme self-sharpening property of SG ceramic grains allows for lower grinding forces. This prevents “grinding burns,” ensuring the fatigue life and metallurgical integrity of high-strength aerospace alloys.

3. NVH Optimization for Electric Vehicle (EV) Drivetrains

With the shift toward electric mobility, the demand for noise-free (NVH – Noise, Vibration, Harshness) performance has entered the “micron era.”

• Focus on Surface Topography: Eliminating “gear whine” caused by microscopic grinding textures.

• The Logic: Using an SG bevel wheel precision-dressed by a CVD roller creates a highly uniform surface finish. This optimizes the tooth meshing contact, significantly improving the acoustic characteristics of the EV drivetrain.

4. Large-Module Gearing for Marine & Heavy Machinery

In marine propulsion systems and mining equipment, bevel grinding wheels are tasked with processing large-module, heavy-duty gears.

Focus on MRR: Achieving a high Material Removal Rate (MRR) without compromising tool life.

The SG Advantage: SG abrasives can withstand massive grinding pressures without premature grain shedding. When combined with an optimized dressing cycle, they drastically reduce the machining time for large-scale tapered gears.

Why the Dressing Solution is Critical for Bevel Grinding Wheels

The performance of a bevel grinding wheel is 80% dependent on its post-dressed surface condition.

* Complex Geometry: Bevel wheels often have a cup or dish shape with a complex conical cutting face. If the dressing tool (such as a CVD roller) lacks precision, it will result in a Pressure Angle Error on the final gear.

* SG Grain Hardness: SG abrasives are exceptionally hard. Using a standard electroplated diamond tool will cause the dresser to wear out rapidly, leading to a “glazed” (dull) wheel. This generates excessive heat, risking the loss of expensive gear work-pieces.

* CNC Compensation: On high-end CNC grinders, the stability of the CVD roller determines the accuracy of the dressing compensation values, which is vital for automated, high-volume production.

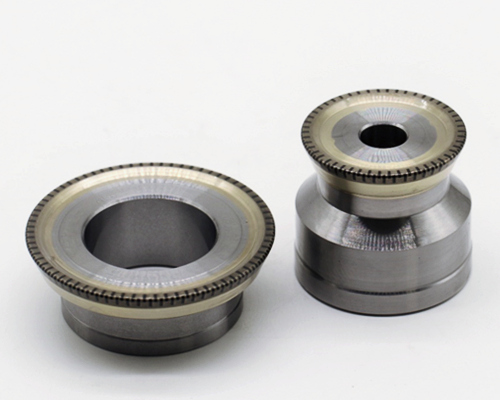

CVD Diamond Rollers for SG Wheels

For complex bevel gear profiles, CVD diamond rollers have surpassed natural diamond and electroplated tools as the gold standard for dressing SG wheels.

Why CVD Diamond?

* Superior Wear Resistance: CVD diamond is a binder-free, synthetic material with a hardness close to natural monocrystalline diamond but with better uniformity. It maintains the critical bevel gear profile (Profile Total Error) much longer than other materials.

* Thermal Stability: CVD has exceptional thermal conductivity. During the high-speed dressing of SG wheels, it dissipates heat rapidly, preventing thermal degradation of the diamond edge.

* Edge Sharpness: Unlike natural diamonds that have cleavage planes, CVD is isotropic, allowing for the creation of extremely sharp and durable dressing edges that can effectively “cut” the SG grains.

Preventing Grinding Defects in Bevel Gears

Using the combination of CVD rollers and SG wheels significantly reduces the two most common gear manufacturing failures:

-Grinding Burn: An “open” dressed wheel via CVD rollers ensures cool grinding, which is vital for the metallurgical integrity of carburized gear steels.

-Tooth Geometry Errors: CVD rollers exhibit near-zero wear over hundreds of dressing cycles, ensuring that the pressure angle and spiral lead of the bevel gear remain within AGMA or ISO Class 12+ standards.
