Why Hybrid Bond Wheels are Essential for CNC Tool Fluting?

As a professional superabrasive grinding wheel manufacturer deeply rooted in the cutting tool industry, we specialize in the R&D and production of premium Diamond and CBN (Cubic Boron Nitride) grinding wheels. In the modern CNC tool manufacturing sector, the fluting process is arguably the most challenging and time-consuming stage. To address this, we have developed our flagship product: the High-Performance Fluting Hybrid Bond Diamond Grinding Wheel.

The Complete Grinding Process of Rotary Carbide Tools

To fully understand the critical nature of the fluting process, it is essential to look at the entire lifecycle of high-quality rotary CNC cutting tools (such as solid carbide end mills, drills, and reamers). Modern precision tool making relies heavily on 5-axis CNC tool grinding machines and high-performance superabrasive wheels. The core manufacturing workflow typically consists of the following key stages:

1. Blank Preparation & OD Grinding (Cylindrical / Step Grinding)

Tool production begins with standard solid carbide or High-Speed Steel (HSS) blanks:

• Cut-off and Chamfering: A diamond cut-off wheel is used to cut the rod to the specified length, followed by end-face squaring and chamfering.

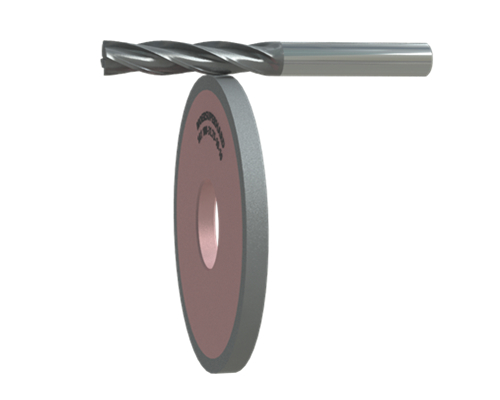

• OD Grinding (Step Grinding): Using a centerless grinder or cylindrical grinder, the front end of the blank is ground down to the precise outer diameter (OD) required for the tool design. This step usually utilizes resin or metal bond diamond/CBN wheels, demanding high cutting efficiency and superior surface finish to lay a solid foundation for subsequent operations.

2. Fluting (Creep Feed Grinding) — The Core Stock Removal Stage

This is the most time-consuming step with the highest Material Removal Rate (MRR).

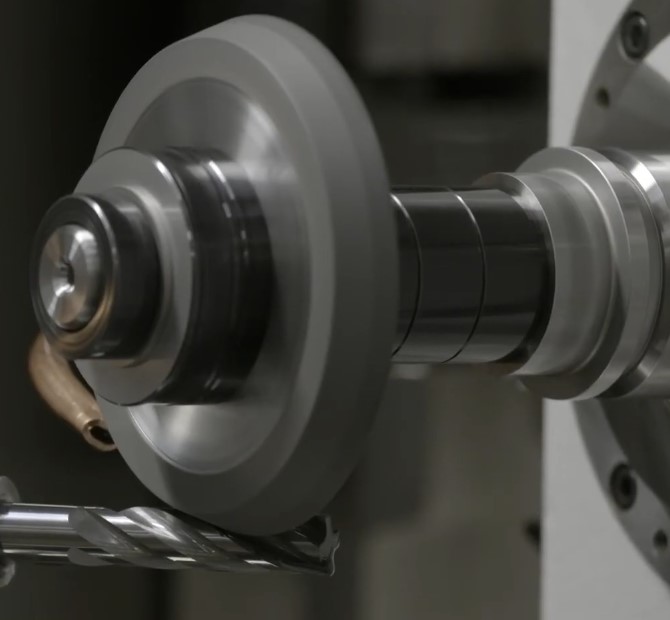

Driven by the high-speed spindle of the CNC machine, the grinding wheel grinds the chip flutes (spiral or straight) directly into the cylindrical blank using a “deep-cut, slow-feed” method. Because this stage generates immense heat and extreme mechanical loads, the Hybrid Bond Diamond Fluting Wheel plays a decisive role here, directly impacting tool chip evacuation performance and overall cycle time.

3. End Face Grinding & Gashing

Once the flutes are formed, the tip of the tool is machined:

• Gashing: Grinding out the chip pocket at the tool tip. This requires a wheel with an extremely thin edge and excellent profile retention to prevent corner wear.

• End Teeth Grinding: Machining the end-face cutting edges of an end mill or the point angle of a drill. The geometric precision here dictates the tool’s plunging capabilities.

4. Clearance / Relief Angle Grinding

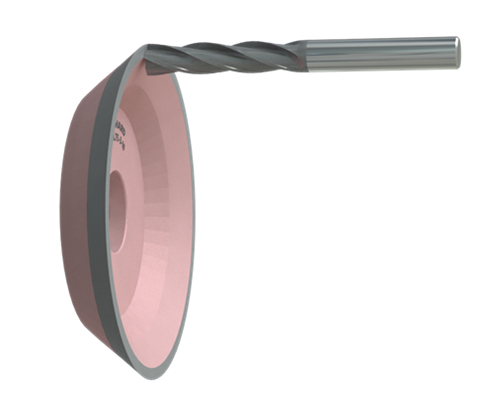

To prevent the tool from rubbing against the workpiece during machining, primary and secondary clearance angles (relief angles) are ground behind the cutting edge.
This process has extremely high requirements for the final cutting edge sharpness and surface roughness. Toolmakers typically use fine-grit resin bond diamond wheels (for carbide) or resin bond CBN wheels (for HSS) for precision finishing to ensure a flawless, chip-free cutting edge, thereby extending tool life.

What is the “Creep Feed Fluting” Process?

As highlighted in the workflow above, Creep Feed Fluting (or deep grinding) is the most critical stock-removal operation.
Creep Feed Fluting utilizes a “deep-cut, slow-feed” kinematic approach to grind the flutes in one or very few passes. Due to the extreme MRR, the grinding wheel must withstand massive mechanical stress while managing intense heat in the contact zone. Substandard wheels can easily lead to thermal damage (grinding burn) on the carbide surface, or rapid wheel wear that compromises the precision of the flute profile. Therefore, fluting demands exceptionally high form holding, heat resistance, and chip clearance capabilities.

Why is a “Hybrid Bond Diamond Wheel” Essential for High-Performance Fluting?

In the early days of 5-axis CNC tool grinding, manufacturers used single-bond wheels for fluting, which often struggled to meet all machining demands:

• Resin Bond: Offers excellent self-sharpening and free-cutting capabilities, generating lower heat. However, during heavy stock removal, its wear resistance and profile retention are poor, leading to rapid loss of the tool’s precision contour.

• Metal Bond: Extremely wear-resistant with superb profile retention. Its drawback is a poor self-sharpening ability; it easily glazes and clogs when grinding deep flutes, causing grinding forces to spike and generating extreme heat that can severely burn carbide workpieces.

The Hybrid Bond is cutting-edge technology engineered to perfectly solve this industry pain point. Hybrid diamond grinding wheel involves the mixed sintering of metal bond formulas with resin (or vitrified) components. Through this unique matrix structure, hybrid bond diamond wheels combine the extreme grip strength, high wear resistance, and superior profile retention of a metal bond with the free-cutting, self-sharpening, and excellent chip evacuation properties of a resin bond. Today, hybrid bond wheels are the absolute standard for creep feed fluting applications.

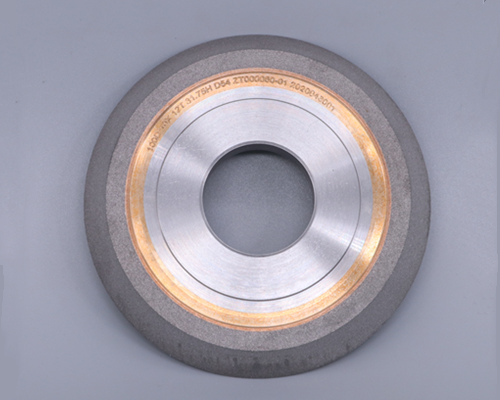

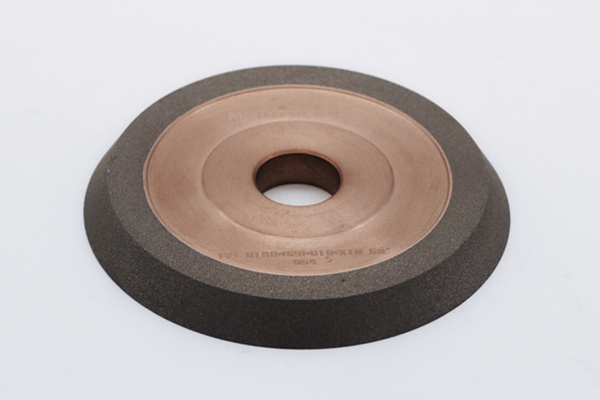

Advantages of Moresuperhard Hybrid Bond Diamond Fluting Wheels

As a direct superabrasives manufacturer, our hybrid bond fluting wheels are specifically engineered for CNC grinding of solid carbide tools (compatible with leading 5-axis machines like ANCA, WALTER, SCHÜTTE, and ROLLOMATIC). They offer the following core advantages:

-High Profile Retention (Form Holding)

-Unsurpassed Material Removal Rates (MRR)

-Extremely Low Spindle Load & Superior Coolant Delivery(The unique hybrid matrix grants the wheel exceptional self-sharpening properties)

-Significantly Extended Wheel Life

Conclusion

In the highly competitive CNC cutting tool manufacturing market, machining efficiency and geometric precision are your core competitive advantages. Choosing a premium High-Performance Fluting Hybrid Bond Diamond Grinding Wheel will not only elevate the quality of your cutting edges but also significantly reduce your overall manufacturing costs.

We welcome tool manufacturers and CNC precision grinding facilities to contact us. We are ready to provide professional superabrasive grinding solutions and dedicated technical support!
