OG Glass diamond wheel
OG Glass diamond wheel
OG Glass diamond wheel

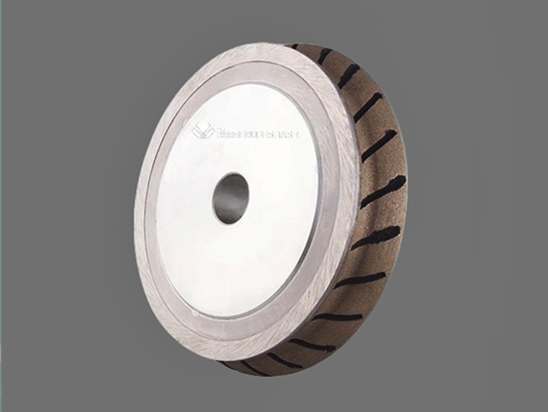

OG Glass diamond wheel for shape edger

AC-OG shape glass

Glass Diamond Peripheral wheel

Glass Thickness: 19mm

Application: For shape edging machine or CNC machine


Standard OG Diamond Wheel

3-OG Diamond Wheel

2-OG Diamond Wheel

Long OG Diamond Wheel

Product Details

Moresuperhard can manufacture single OG, double OG, three OG diamond wheels, which mainly used in the furniture industry’s special shape glass on special-shaped grinder, single round edger, double round edger, bevel machine, chamfer machine.

Features of

Diamond wheel working layer with coarse-grained and has grooving/slot segment position available for better cooling and very sharper, when processing thick glass, Quickly grind out shape glass, doesn’t break the edge, without spark and does not burn the glass side.

Grinding wheel collocation:

two wheels, one coarse and one fine wheels (1#80 mesh +2#240 mesh), polishing with BK and BD wheels,achieve very ideal the brightness effect.

Note: 1#, 2# diamond wheel must be the same manufacture, otherwise it will cause the problem of inconsistent beak shape and falling edge.

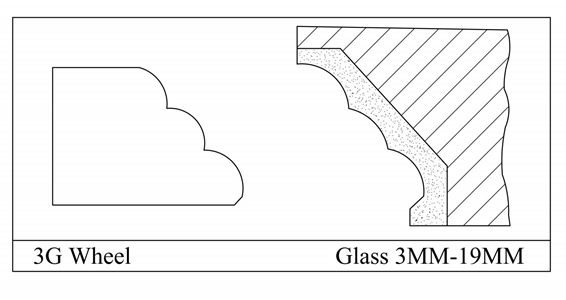

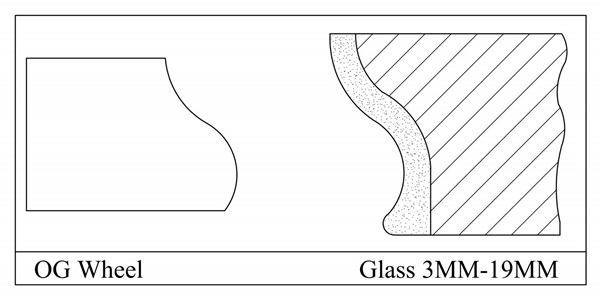

2G wheel3G wheelOG wheel



OG Diamond Wheels For shape edger
D(mm) H(mm) G.T Grit(#)
100 22
150 22 8×10
175 22 8×10
