Diamond Turbo Grinder for Dental

For pre-polishing, mirror polishing and final polishing

RPM: 8000-15000rpm, maximum 2500rpm

Ceramic bonded grinder with diamond

Used for zirconia inner crown, porcelain tooth surface, and crown


Product Details

Diamond turbo grinder grinding head is used for grinding hard and brittle materials such as zirconia and alumina. It generates less heat and does not require water cooling. High-quality emery and unique formula design make the product sharper and will not cause tiny cracks or vibration-induced lines on the surface of the workpiece.

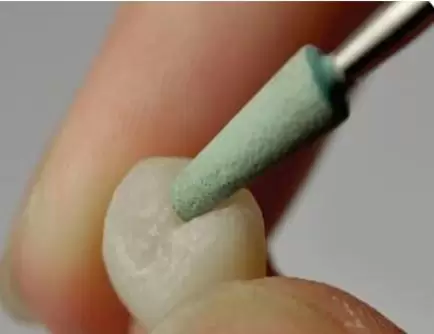

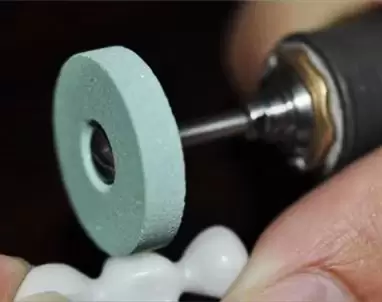

Application of diamond  turbo grinder

Diamond turbo grinders can achieve  three processes: pre-polishing, mirror polishing and final polishing. And can get high-gloss polishing involves fine grinding. After polishing with diamond turbo grinder,  which makes the tooth surface even and uniform and the surface texture smoother.

diamond turbo grinder diamond turbo grinder

Advantages of diamond turbo

* Reduce the formation of microfractures

* Excellent surface smooth

* Good grinding properties

* Excellent durability



Drawing&Specification

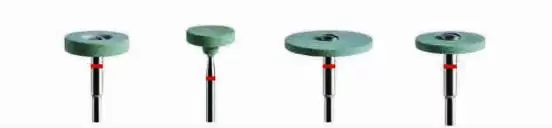

diamond turbo grinder

Size ∅1/10mm 065 050 045 060
Length (mm) 13.0 13.0 13.0 8.0
Order No. TG01 TG02 TG03 TG04

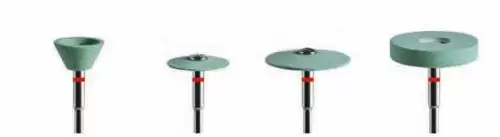

diamond turbo grinder

Size ∅1/10mm 180 160 220 220
Length (mm) 1.0 1.5 2.0 4.5
Order No. TG05 TG06 TG07 TG08

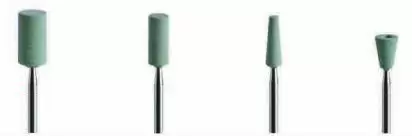

diamond turbo grinder

Size ∅1/10mm 150 130 220 150
Length (mm) 3.5 2.0 2.0 2.0
Order No. TG09 TG10 TG11 TG12
