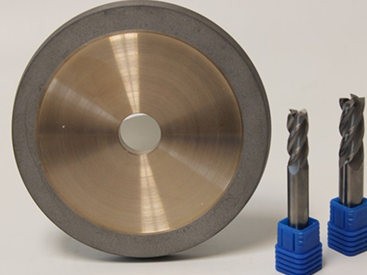

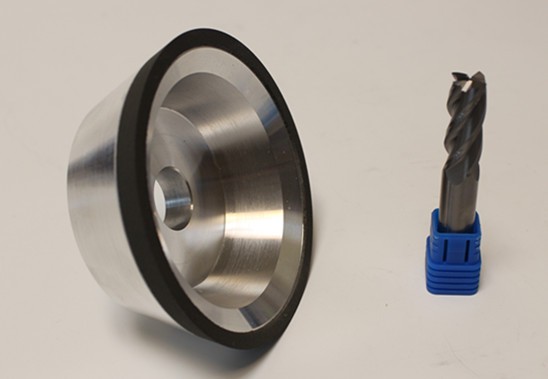

Diamond Grinding Wheel for Rotating Cutting Tools

Excellent surface quality

High stock removal

Low grinding forces

Smooth surface finish

Product Details

Application:
Widely used for grinding tungsten carbide, high speed steel (HSS), stainless drill ,end mill and reamer.
We provide a complete solution for CNC tools manufacturing process, including fluting, gashing and Clear edge, relief angle grinding.

Advantages:
1.Excellent surface quality
2.High stock removal
3.Low grinding forces

4.Smooth surface finish

Drawing&Specification

cnc wheelgrinding wheel for round tools

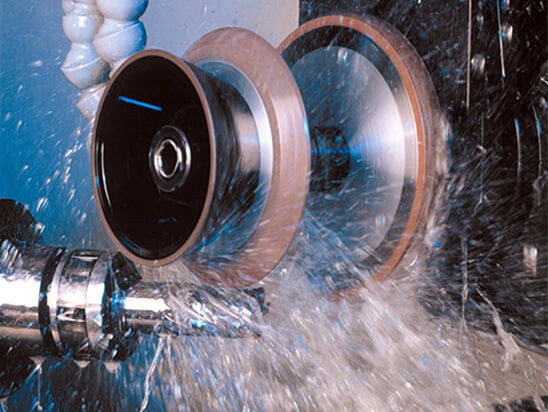

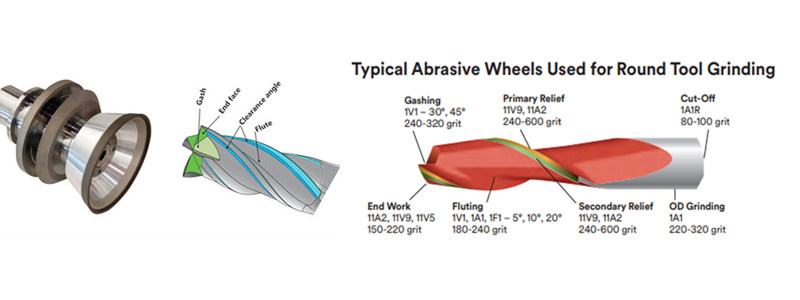

Carbide Round tools on CNC machines: Flute Grinding, Gash Grinding, end facing, Clearance angle Cylindrical grinding.

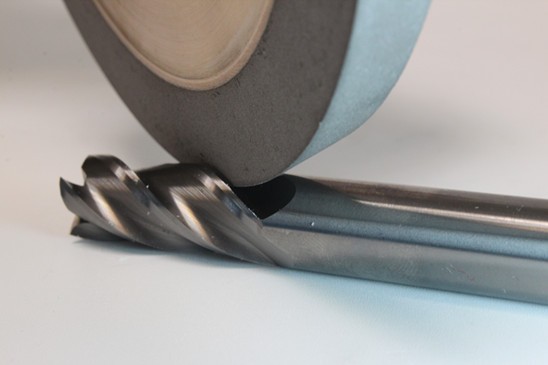

Fluting : Perfect flute surface quality, Extremely high stock removal, Very low energy consumption.

Type

D (mm)

T (mm)

X (mm)

H (mm)

grit

Diamond Grinding Wheel

1A1

75

10

5

20

D64

100

6, 10, 12

5, 10

20

D46, D64

125

10, 12, 16

10

20

D46, D64

150

12

10

20

D64

Diamond Grinding Wheel

1V1

D (mm)

T (mm)

X (mm)

H (mm)

75

10

5

20

45

100

10, 15

5

20

45

125

6, 10, 15

5

20

45

150

12

5

20

45

Rotating Cutting Tools

14F1 ( flute for drill )

D (mm)

U (mm)

X (mm)

H (mm)

R

100

4

6

20

2

125

3

5

20

1.5

150

1,5

5, 7

20

0.5 , 2.5

Gashing and Clear edge:The production of superior tool edge quality , High stock removal, Maintaining wheel profile.

Type

D (mm)

T (mm)

X (mm)

H (mm)

Rotating Cutting Tools

1V1

100

10, 15

5, 10

20

45

125

4, 10, 15

5, 6, 10

20

45

Rotating Cutting Tools

12V9

D (mm)

W (mm)

X (mm)

H (mm)



75

3

10

20



100

3

10

20



125

3

10

20



150

3

10

20



Relief angle grinding: Excellent surface finish and the best profile consistency, Excellent edge quality, High stock removal at second relief.

Rotating Cutting Tools

11V9

D (mm)

W (mm)

X (mm)

H (mm)



75

3

10

20



100

2, 3

10

20



125

3

10

20



* Other specification can be made according to customers requirements.

Suitable CNC Grinding Machine:

Walter, ANCA, EWAG, Farman, Schutte, Schneeberger, Rollomatic, HAUSER, TSCHUDIN, Makino, Stuer, Strausak, Cininnati, Griffo, Huffmann, Jungner, CUOGHI, Fehlmann, TTB and so on.
