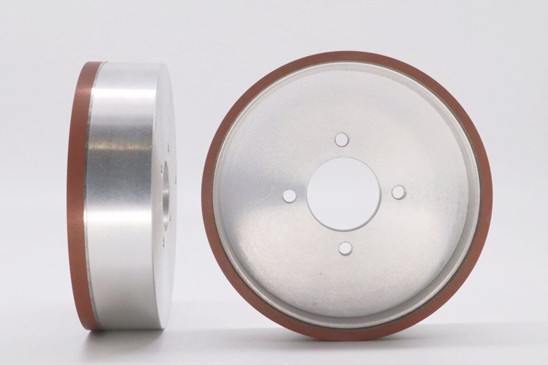

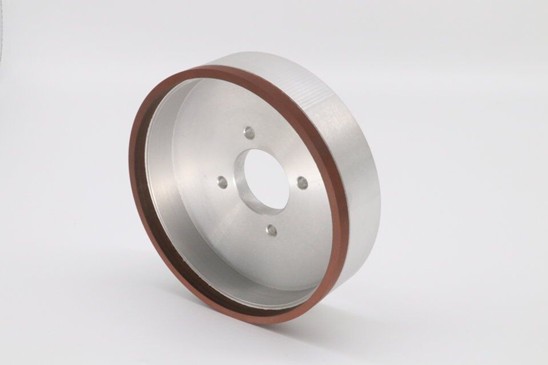

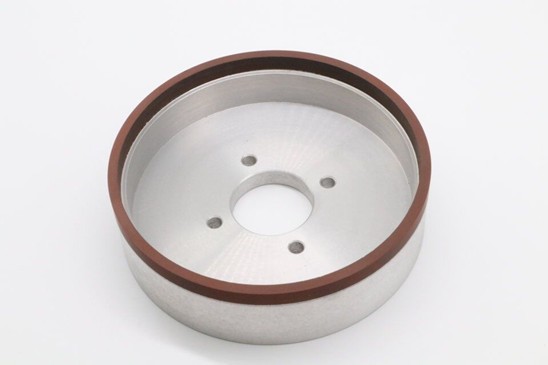

6A2 Resin Diamond Cup Grinding Wheel for CBN Tools
6A2 diamond cup grinding wheels
Good Self-sharpening
High Working Efficiency
Good Elastic&Good Polishing Performance
Product Details
When grinding CBN tools, resin bond diamond grinding wheel is mostly used. If the machining tolerance is big, you can use 140/170 for rough grinding,then use230/270,W35,W28 for fine grinding. If you want to save cost & time you can choose W35 for whole grinding.
Application of resin diamond cup wheels
Especially for face and peripheral grinding of carbide and CBN tools.
Advantages of 6a2 resin diamond wheel for cbn inserts grinding
1.Precision control of geometric tolerance
2.Good Self-sharpening
3.High Working Efficiency
4.Good Elastic&Good Polishing Performance
5.Superior insert edge quality

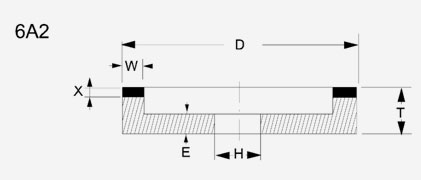

Drawing&Specification
|
Type |
D(mm) | T(mm) | H(mm) | W(mm) | X(mm) |
|
6A2 |
100 |
40 | 32,40 | 5,10,20 | 10 |
| 125 | 40 | 32,40 | 5,10 |
10 |
|
| 150 | 40 | 32,40 | 5,10,15,20 |
8,10 |
|
| Grit: 230/270,325/400, W40(500#), W35,W28(600#), W20(800#), W10(1500#), W7(2000),W5(3000#) | |||||
