Case of Ceramic CBN grinding wheels process quenched tool steel

Quenched tool steels are the backbone of modern manufacturing. Known for their exceptional hardness, wear resistance, and strength after heat treatment, these materials are indispensable in tooling applications such as cutting dies, molds, punches, and precision mechanical components. However, their superior hardness also makes them extremely challenging to machine using conventional abrasive tools.

In recent years, the vitrified CBN (Cubic Boron Nitride) grinding wheel has become one of the most effective and reliable solutions for processing quenched tool steel. Compared to traditional aluminum oxide (Al₂O₃) or silicon carbide (SiC) abrasives, CBN offers superior hardness, thermal conductivity, and chemical stability—allowing for efficient, precise, and long-lasting grinding performance.

What Is Quenched Tool Steel?

Definition and Characteristics

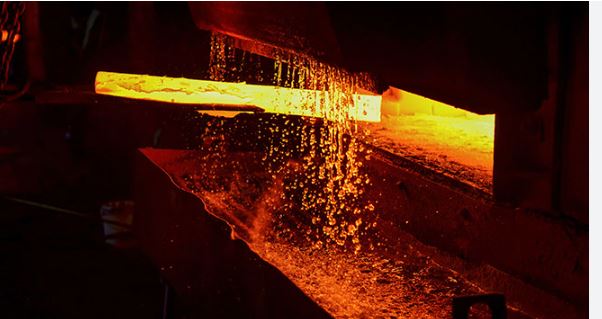

Tool steel refers to a family of high-carbon and alloy steels designed for high hardness, wear resistance, and toughness. Quenched tool steel specifically refers to tool steel that has undergone quenching, a heat treatment process that rapidly cools the steel after being heated to its austenitizing temperature.

The quenching process transforms the microstructure of the steel into martensite, a very hard and brittle phase, significantly improving hardness (typically HRC 58–65). To reduce brittleness and improve toughness, the steel is usually tempered after quenching.

Classification of Tool Steels

Common types of quenched tool steels include:

* Cold Work Tool Steels (e.g., D2, SKD11, Cr12MoV) – used for cutting and stamping tools, dies, and cold forming.

* Hot Work Tool Steels (e.g., H13, SKD61) – suitable for hot forging, extrusion, and die casting molds.

* High-Speed Steels (e.g., M2, M42, SKH51) – used for drills, taps, and milling cutters due to excellent red-hardness.

* Plastic Mold Steels (e.g., P20, S136) – used in mold bases and cavities for plastic injection molds.

Challenges in Grinding Quenched Tool Steel

Grinding quenched tool steels is a complex process due to:

* High hardness (HRC > 60) – causes rapid wear of conventional abrasives.

* High heat generation – leading to thermal damage (grinding burn, microcracks).

* Tough microstructure – increases grinding forces and makes material removal more difficult.

* Surface finish requirements – mold and die components require mirror-like surfaces.

These challenges necessitate the use of advanced abrasives like CBN (Cubic Boron Nitride), especially when processing hardened or quenched steels.

Grinding of Quenched Tool Steel

Grinding Mechanism

Grinding is a precision machining process where abrasive grains act as cutting edges, removing material from the workpiece surface. When grinding quenched tool steel, the hardness of the workpiece requires abrasives that can maintain sharpness and resist wear under high pressure and temperature conditions.

CBN, second only to diamond in hardness, is particularly suitable because it maintains cutting performance even under elevated temperatures up to 1200°C and is chemically stable with ferrous materials (unlike diamond, which reacts with iron).

Grinding Methods

Different grinding processes are used for quenched tool steels depending on geometry and application:

* Surface Grinding – for flat surfaces (e.g., dies, molds, plates).

* Cylindrical Grinding – for shafts, punches, and round tools.

* Internal Grinding – for holes and internal surfaces.

* Profile Grinding – for complex geometries and molds.

* Creep Feed Grinding – for deep cutting at slow feed rates.

Each process requires careful control of parameters such as wheel speed, feed rate, depth of cut, and coolant flow to achieve desired surface quality and tool life.

How to Choose a Grinding Wheel for Processing Quenched Tool Steel

Choosing the right grinding wheel involves balancing abrasive type, bond, grit size, concentration, hardness, and structure to match specific machining conditions.

 Abrasive Type

For quenched tool steels, CBN is the optimal abrasive due to its superior hardness, chemical stability, and thermal resistance. Diamond is unsuitable because it reacts with iron at high temperatures.

 Bond Type

Among CBN wheel bonds—resin, metal, and vitrified—each has unique characteristics:

* Resin bond: good for fine finishing and light cuts; lower thermal resistance.

* Metal bond: very strong, long life, but lower cutting ability.

* Vitrified bond: best balance between cutting efficiency, form-holding, and cooling.

→ Recommended for quenched tool steels.

Vitrified bonds provide open pores that allow coolant to reach the cutting zone, dissipating heat effectively.

Grit Size Selection

Grit size affects surface finish and removal rate:
