Case of CBN Honing Stone for Honing Water Pump Bearing Shaft and Sleeve

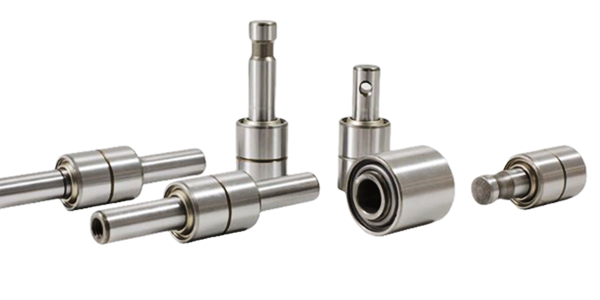

Water Pump Bearing

A water pump bearing is a key component in automotive cooling systems, especially in internal combustion engines. Its main function is to support the impeller shaft of the water pump, ensuring smooth rotation under high speed and load conditions. Since the water pump circulates coolant through the engine block, radiator, and hoses, the durability and precision of the bearing directly affect engine cooling efficiency and overall service life.

Structure of a Water Pump Bearing

Water pump bearings typically adopt an integrated design combining shaft, rolling elements, and races. Unlike standard bearings, they are customized to withstand axial and radial loads simultaneously. A common water pump bearing includes:

* Shaft – connects directly to the impeller and pulley.

* Outer sleeve (or outer race) – provides housing and stability.

* Rolling elements (balls or rollers) – reduce friction during rotation.

* Seals – protect against coolant leakage and contamination.

* Grease or lubrication system – ensures long service life without frequent maintenance.

This integrated design allows compact size, high stiffness, and long operating reliability.

Parts of Water Pump Bearing that Need Honing

During the manufacturing process of water pump bearings, honing is a critical finishing step. The main parts that require honing include:

Bearing shaft: The journal surfaces must have high roundness, low surface roughness, and precise dimensional tolerance to ensure smooth rotation and tight fit with seals and impeller.

Outer sleeve bore: The inner bore of the sleeve requires honing to achieve correct clearance fit with rolling elements and ensure uniform load distribution.

Both the shaft and sleeve demand micro-level surface finishing to achieve the necessary wear resistance, noise reduction, and operational stability.

How to Hone Water Pump Bearings

Honing is performed after pre-machining such as turning and grinding. The process involves:

* Clamping the shaft or sleeve in a honing fixture.

* Honing stone expansion – the abrasive stick (diamond or CBN) expands radially to contact the surface.

* Rotating and reciprocating motion – the honing tool rotates while reciprocating axially, generating a controlled crosshatch pattern.

Material removal – honing corrects geometric errors, removes minor surface defects, and improves surface quality.

The typical surface roughness requirement for water pump bearing shafts is Ra 0.2–0.4 μm, while sleeves may require Ra 0.4–0.6 μm depending on design.

How to Choose Diamond or CBN Honing Stone for Water Pump Bearing Shaft and Sleeve

The selection of honing stone depends on the workpiece material and performance requirement:

For Shaft (hardened steel or alloy steel):

CBN (Cubic Boron Nitride) honing stones are the best choice.

CBN provides excellent grinding efficiency, thermal stability, and long life when machining hardened steels (HRC 50–65).

Advantages: high stock removal rate, superior roundness, long service life, and cost-effectiveness for mass production.

For Sleeve (cast iron or softer alloys): Diamond honing stones are more suitable.

Diamond has superior wear resistance and maintains sharp cutting edges, ideal for cast iron or powder metallurgy sleeves. Produces a consistent surface finish and extends tool life.

Key Considerations in Choosing Honing Stones:

Workpiece material – CBN for hardened steel shafts, Diamond for cast iron sleeves.

Bond type – Resin bond for fine finishing, metal bond for durability, vitrified bond for high precision and efficient cutting.

Grit size – Coarse grit (#80–150) for stock removal, fine grit (#200–600) for finishing.

Machine compatibility – Ensure honing stone dimensions and bond type match honing machine requirements.

Case Example: CBN Honing Stone for Water Pump Bearing Shaft and Sleeve
