Why Choose Metal-Bonded Diamond Blades for Micro-Bead Cutting?

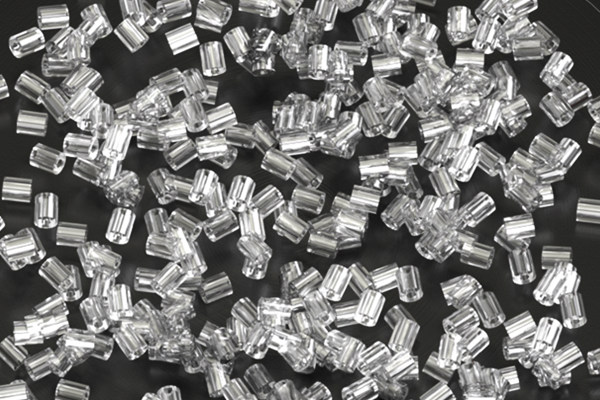

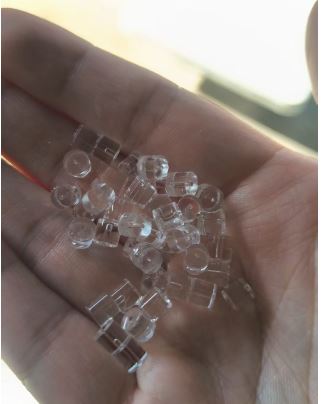

In today’s high-end precision machining sector, the cutting and shaping of micro-beads (miniature spheres typically one millimeter or less in diameter) has always been a highly challenging process. Driven by the miniaturization of industrial and medical devices, the machining quality of these micro-beads directly determines the performance and value of the final core products.

Their applications have long surpassed traditional high-end jewelry settings, deeply penetrating cutting-edge technological fields:

• Miniature Bearings for Precision Instruments: Ceramic micro-beads, made of silicon nitride (Si3N4) or zirconia, are widely used in aerospace applications and high-speed dental drill bearings to achieve ultra-low friction coefficients and extreme rotational speeds.

• Specialized Carriers in Biomedicine: In targeted radiation therapy, glass microspheres containing isotopes (such as radioactive Yttrium-90) or bioabsorbable embolization microspheres are used as carriers injected directly into tumor blood vessels.

Under these demanding application environments, even micron-level dimensional deviations or invisible micro-cracks can lead to product failure. In recent years, a technical consensus has emerged within the precision manufacturing industry: using metal-bonded diamond blades for micro-bead cutting is the optimal solution.  The application of this micro-scale cutting tool has brought a revolutionary breakthrough to the manufacturing of miniature components.

The Bottleneck of Traditional Machining: The Dilemma of “Heat” and “Force”

Before the widespread use of sintered metal-bonded diamond blades, the cutting of micro-beads relied primarily on high-precision abrasive grinding wheels or laser equipment. However, when dealing with ceramics, cemented carbides, gemstones, and special engineering plastics, the limitations of traditional processes became increasingly apparent:

Rapid Wear and Loss of Precision in Grinding Wheels

While traditional grinding wheels are cost-effective, they wear out extremely quickly when cutting ultra-hard materials. This rapid wear not only causes the kerf (cutting width) to expand rapidly—making batch consistency impossible to maintain—but more critically, the micro-chipping of the abrasive grains can easily cause invisible mechanical damage to the micro-beads, severely compromising the structural integrity of miniature bearings.

The Fatal Flaw of Laser Cutting: The Heat-Affected Zone (HAZ)

Although laser cutting is a non-contact process, it relies on high energy to vaporize the material. When machining materials with poor thermal conductivity, such as alumina ceramics or sapphires, heat rapidly accumulates at the incision. This generates a significant Heat-Affected Zone (HAZ) and a recast layer that can be several microns thick. The massive temperature gradient induces thermal stress on the bead’s surface, leading to radial or annular micro-cracks (craze cracking) or phase transformations. This is fatal for mechanically or thermally sensitive micro-bead materials. Furthermore, the high capital investment and operational costs of laser equipment are often prohibitive for small-to-medium-sized machining facilities.

In short, the core requirements for micro-bead cutting are: an ultra-thin kerf, a high-quality cutting surface (low roughness, crack-free), excellent batch stability, and broad material adaptability.

Advantages of Metal-Bonded Diamond Saw Blades for cutting micro beeds

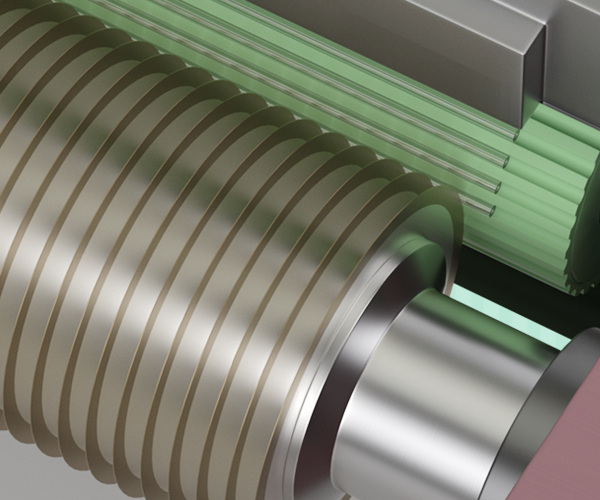

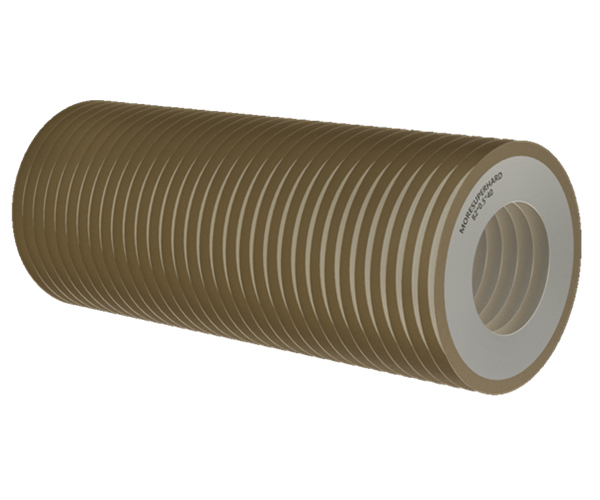

A sintered metal-bonded diamond dicing blade is an ultra-thin cutting tool manufactured by compounding synthetic diamond micro-powder with a metal binder (usually cobalt, nickel, copper, iron, or spring steel alloys) through hot-press sintering at temperatures exceeding 800°C and pressures of tens of tons. Its unique structure gives it unparalleled advantages in micro-bead cutting:

1. Exceptional Hardness and Ultra-Thin Kerfs

As the hardest known substance in nature, diamond easily cuts through various ultra-hard materials. Advanced precision manufacturing can reduce the thickness of these metal-matrix blades to the tens of micrometers (microns) level. Even during prolonged machining, the blade’s diameter and cutting edge profile remain highly stable, ensuring consistent kerf widths. For high-value materials priced by the gram or carat (such as diamond micro-beads or radioactive medical microspheres), an ultra-thin kerf minimizes material waste, resulting in massive cost savings.

2. Precision Micro-Cutting for a Ra0.2μm Mirror Finish

Rotating at high speeds, the sharp edges of the diamond grits perform pure physical “micro-cutting” rather than the melting action seen in lasers. This “cold machining” mode produces almost no thermal damage layer. The surface roughness of the cut can reach Ra0.2μm or even lower. For many high-standard applications, the cut surface achieves a mirror-like finish that can be used directly without secondary polishing.

3. The Secret of Strong Retention and “Self-Sharpening”

This is the core secret behind the long lifespan and chip-free performance of metal-bonded diamond blades. During the cutting process, as the exposed, sharp diamond grits gradually wear down and become blunt, the metal binder (matrix) surrounding them undergoes synchronous micro-wear. This precise material formulation allows the blunted grits to shed at exactly the right time, automatically exposing a fresh layer of sharp diamond edges underneath.

This phenomenon is known in the industry as the “self-sharpening” mechanism. It ensures that the blade maintains consistent cutting power throughout its entire lifespan, completely eliminating the sudden spikes in cutting force that cause micro-beads to chip or break.

4. Cross-Material Versatility (“One Blade, Multiple Uses”)

From alumina and zirconia ceramics to tungsten carbide; from rubies and sapphires to various quartz glasses and high-strength engineering plastics—the high rigidity and adaptability of sintered metal-bonded diamond blades allow them to handle almost all common and specialized micro-bead materials, significantly enhancing production line flexibility.

Industrial CNC Application: Reshaping the Machining Workflow

To maximize the potential of these dicing blades in a real-world CNC production line, the following processing parameters must be strictly controlled:

• Spindle Precision: The dicing saw or CNC machine must possess extreme rotational accuracy and rigidity, with radial spindle runout strictly kept below 1μm.

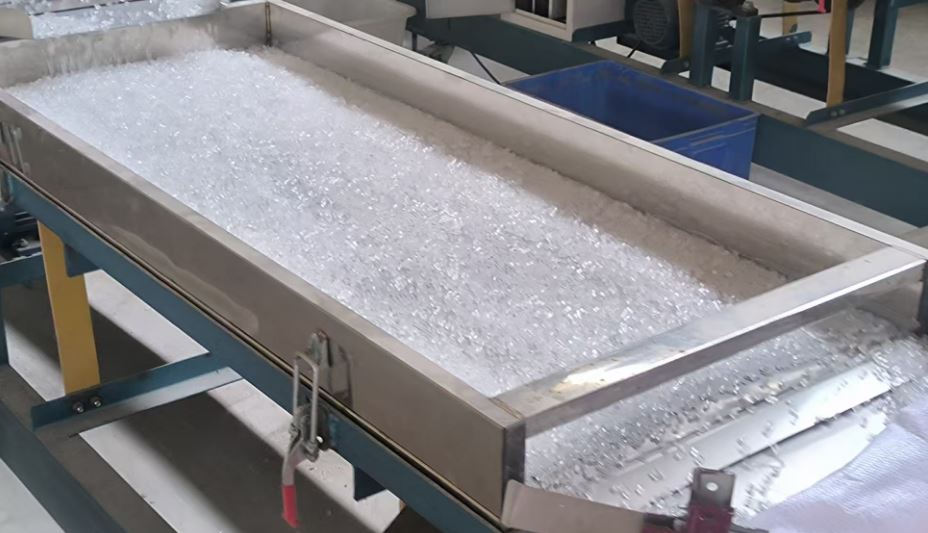

• High-Speed Milling-Style Feed: During machining, rows of micro-beads are secured by precision fixtures, and the blade performs high-speed cutting at tens of thousands of RPM.

• Precise Coolant Delivery: Because diamonds can carbonize at high temperatures, specialized cutting oil or emulsion must be supplied accurately. This not only dissipates cutting heat instantly but also flushes away fine swarf, preventing it from re-adhering to the pristine surface of the micro-beads.

Thanks to these optimized processes, a deeper single-pass cut and significantly faster feed rates can be achieved. The product yield rate surges to nearly 100%, drastically reducing the pressure and costs associated with subsequent polishing stages.
