Hybrid fluting test

August 20, 2021

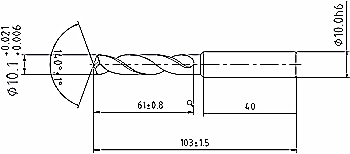

1. Test tool specifications:  integral HM twist drill D10.1*61*103*SD10.

twist drill

  hole

2: Test grinding wheel specifications: strength slotted grinding wheel 1A1-125-10-10-D64

3: Test machine: ANCA TX7+

4. Test data:

Grinding wheel speed: 2800RPM(18M/S)

First cut

Second cut

Grinding depth

3.5mm

0.03mm

Feed

80mm/min

200mm/min

First groove processing time

1min12s

30 sec

Second groove processing time

1min12 s

30 s

Grooving Processing time

3min 24 s

Number of processing

Load

Processing time

1

8%











3min 24 s

Change is very small

2

9%

3

12%

4

10%

5

15%

6

20%

7

25%



Oil stone



8

7%

9

9%

10

13%

11

18%

12

23%



Oil stone




Comprehensive analysis:

A total of 100 units were tested. The first 7 units were tested to the limit. The maximum load of the machine was set at 25%.

After the sharpening, the load of the machine tool can be reduced, the grinding force of the grinding wheel can be maintained, and the outer diameter of the grinding wheel does not change much. In conclusion, the hardness of the grinding wheel is hard, the grinding wheel is easy to block holes, and the grinding wheel maintainability is good.

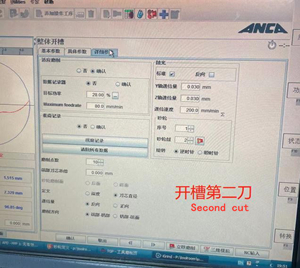

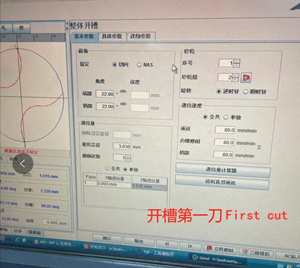

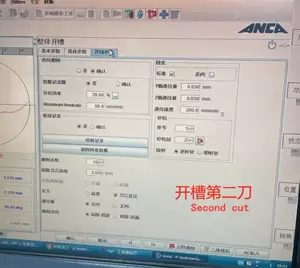

        first cut  second cut

        sate of grinding  finish time
