1A1 resin diamond grinding wheel for cylinderical grinder
| Machine type & make
|
Cylindrical grinding Lathe machine mounted |
| RPM of the machine at which it is run | 3420RMP |
| Surface finish required | Ra0.8 |
| Material removal rate | On each cut 0.05mm total material to grind 6mm |
|
Size
|
Dia 50mm length thickness T 12mm with diamond thickness X 5mm ID H 25.4… Qnt 2 Nos. |
| Dia 50mm length thickness T6mm with diamond thickness X 5mm ID H 25.45… Qnt 2 Nos. | |

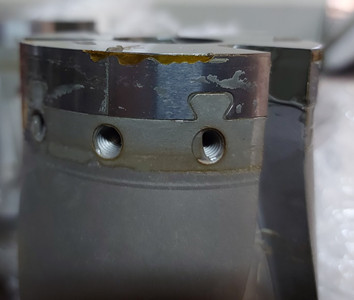

| Another Component to be ground | Data sheet below, and photo attached |
