Single stroke honing tools, single pass honing reamer (Expansion reamers)

Single-pass honing tools: electroplated diamond honing reamer and sintered honing reamer

Vertical single pass honing machines: Sunnen, Engis, Nagel, Belden, etc

Precision bore finishing

Product Details

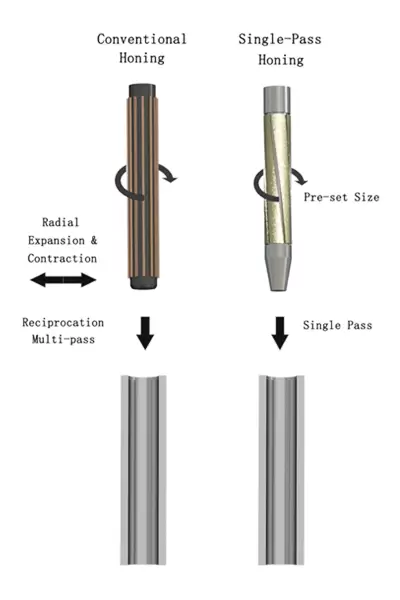

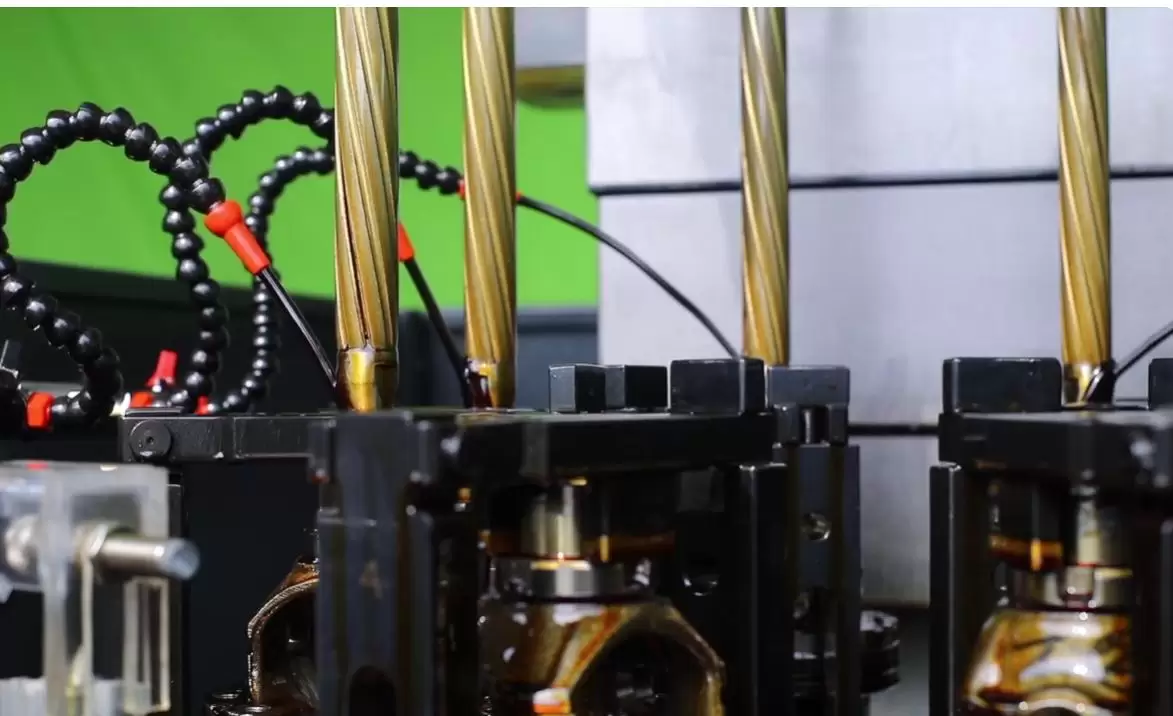

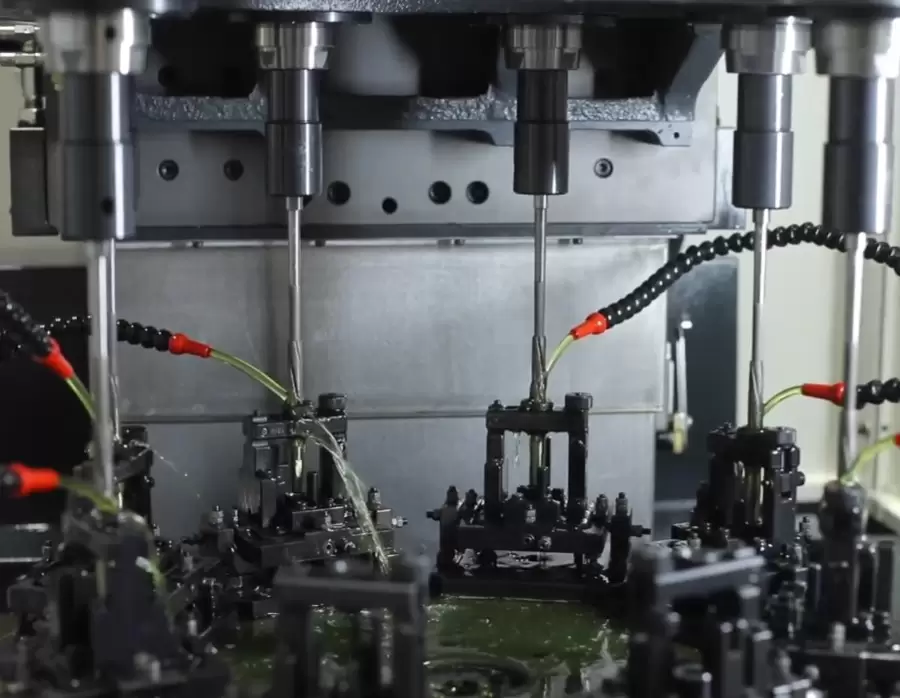

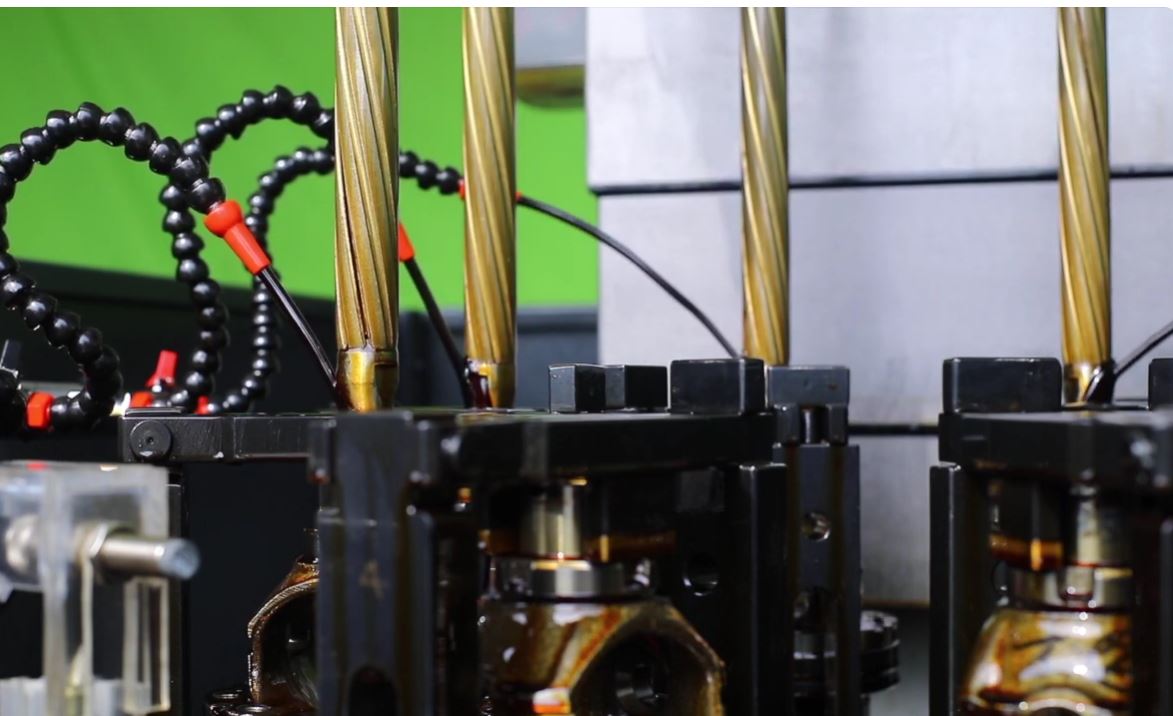

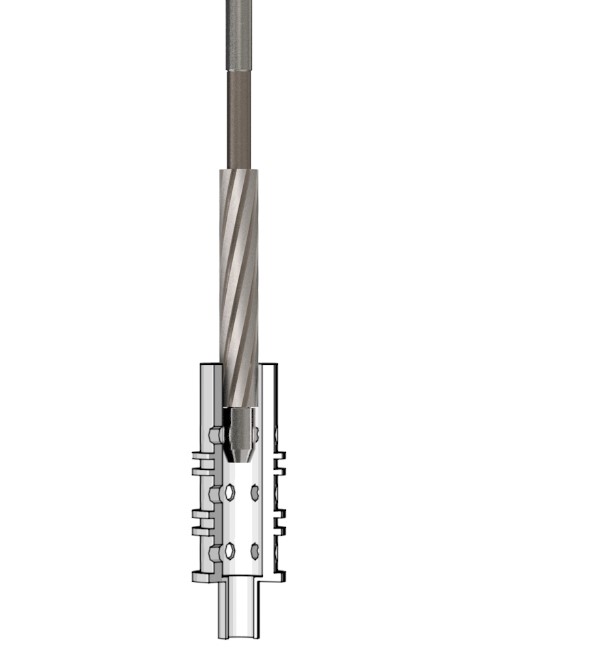

Single stroke honing (Expansion reamers) process means that the honing head slowly enters the hole of the workpiece under high speed rotation, and then slowly exits the hole at the same speed. Through the cycle of "one in", "one out", hole honing is completed. Conventional honing is done by a tool that expands and contracts as the tool reciprocates in the bore during the honing cycle.

Single-pass honing tools: electroplated diamond honing reamer and sintered honing reamer

Vertical single pass honing machines: Sunnen, Engis, Nagel, Belden, etc

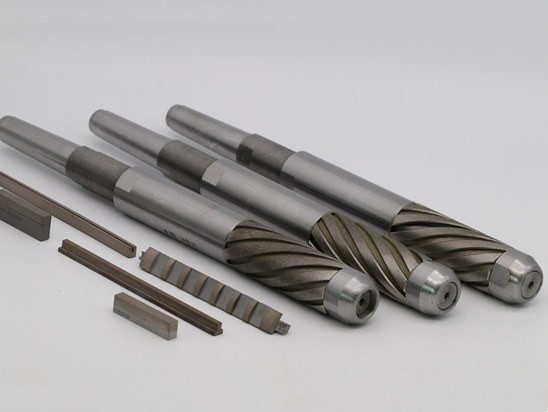

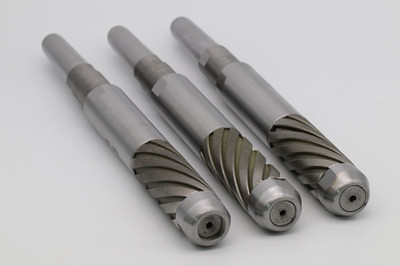

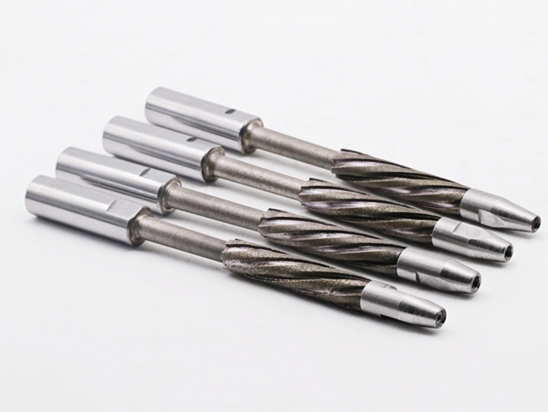

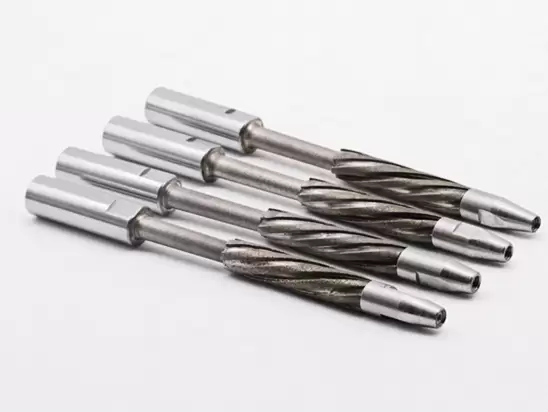

diamond honing reamer single pass diamond honing reamer





Applications of single pass diamond and borazon CBN honing reamer

High-precision internal hole honing, such as engine injection pump, Gears, ABS, brake cylinder, supercharger, rocker arms, connecting rod, fork, hydraulic valve body, valve sleeve, air bearing, precision gear, die guide sleeve, air conditioner compressor main and auxiliary bearings, refrigerator compressor shaft hole (cylinder hole), piston, measurement ring gauge and others.

In recent years, single-stroke honing technology has been adopted in automobile, tractor, power machinery, construction machinery, refrigeration machinery and aerospace industry.



The honing reamer is equipped with reasonable joints, tools and machine tools, which can achieve the ultra-high precision of the inner hole: Cylindricity: ≤1 μm, Roundness: ≤ 1 μm, Roughness: ≤Ra0.1, Tolerance: ≤1μm

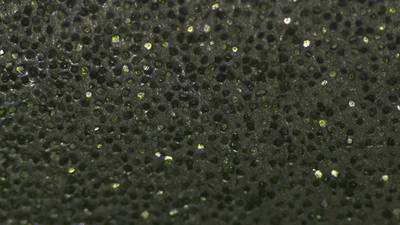

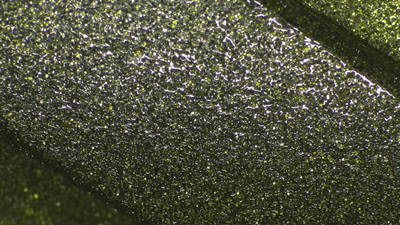

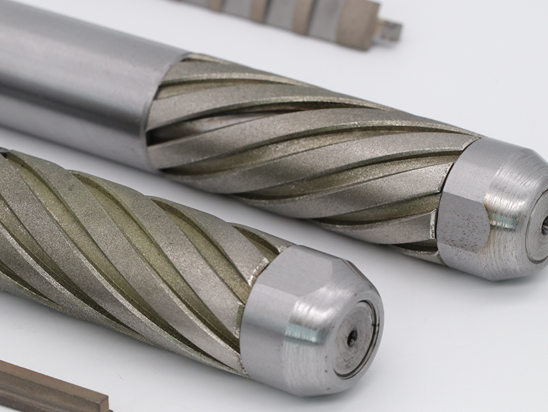

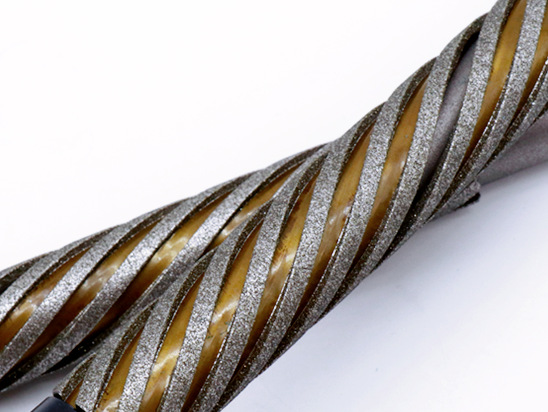

The reamers are electrodeposited abrasive grain reamers with the electrodeposition of diamonds or borazon CBN materials. Single-Pass is possible due to of the extremely high material extraction rates of diamond and CBN materials used as abrasive grains.

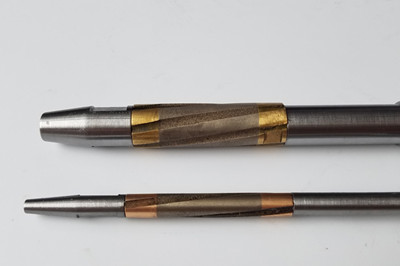

diamond honing reamer diamond reamer

                                                                                  Abrasive Grain

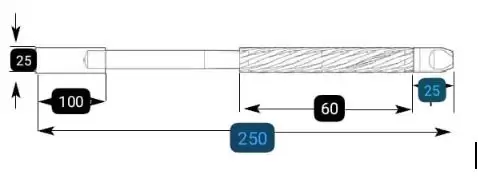

Drawing&Specification

Case 1. Precision honing hydraulic motor

Application: Hydraulic Motor

Material: cast iron

Bore Length:98.43mm

Bore Diameter: 44.468mm

Stock Removal: 0.127mm

Surface Finish: 0.35μm

Size control: 0.0025mm

Roundness: 0.0018mm

Case 2. Gear bore precision finishing

Diameter:20mm

Length:15mm

Material:Alloy Steel

Hardness:HRC58

Stock Removal:0.05mm

Diamond Size:20/30

Bore Quality

Size:0.007mm

Cylindricity: 0.004mm

Surface Finish:0.4/0.6Ra
