Vitrified CBN Grinding Wheel for Rotor Slot

Type: 3A1,14A1 vitrified CBN grinding wheel

For rotary vane compressor, steering pump, vane pump rotor groove grinding, drive shaft grooving and other industries and after grooving molding grinding

Good shape retention, long life, high workpiece precision

Product Details

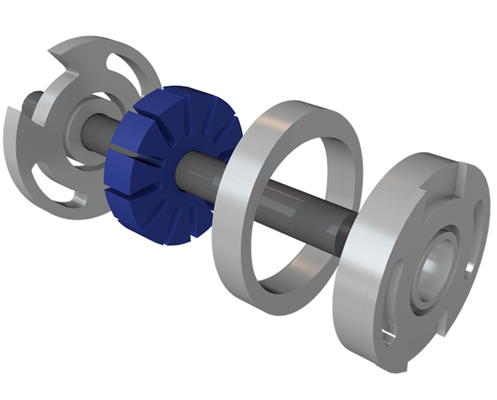

The rotor is a key part of the vane pump/motor. The material is 38CrMoAlA and the surface of the rotor groove is nitrified. Because the rotor groove has high dimensional accuracy, shape and position tolerance and surface roughness requirements, the groove is narrow and deep, so the selection of grinding wheel should consider both chemical inertia and high hardness, so the selection of CBN grinding wheel is more suitable.

Vitrified bond CBN Groove Grinding wheels is suitable for rotary vane compressor, steering pump, vane pump rotor groove grinding, drive shaft grooving and other industries and after grooving molding grinding.

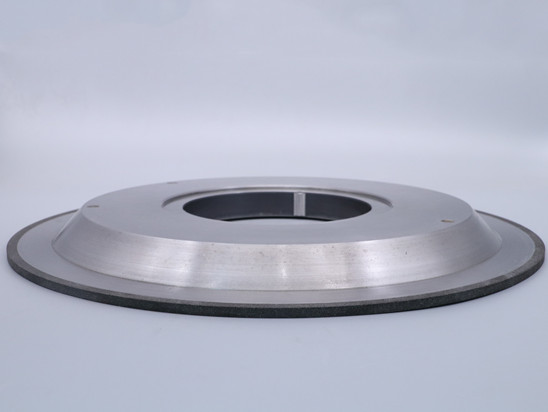

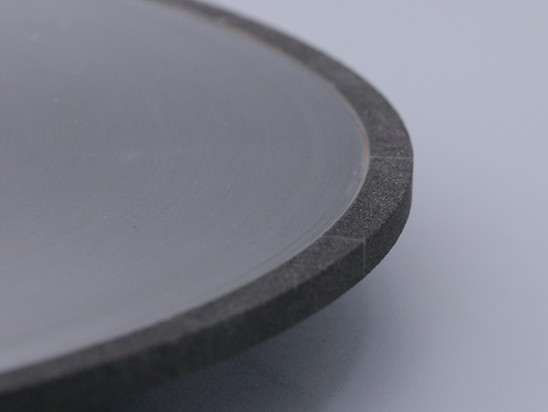

vitrified CBN grinding wheel for rotor  3A1 vitrified CBN grinidng wheel

Application of vitrified CBN grinding wheel:

Rotor slot  CBN grinding wheel is mainly used for grinding grooves of rotary vane compressors, vane pumps, steering pumps, piston grooves, rotors and other industrial parts.

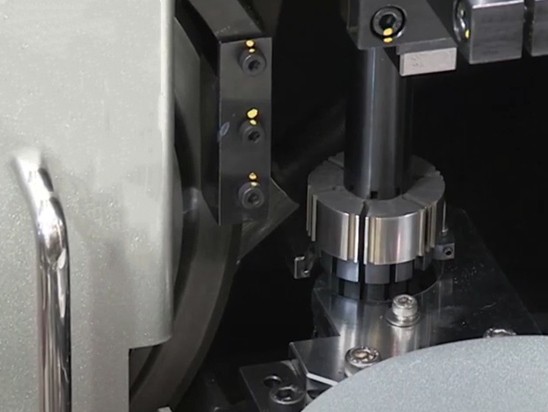

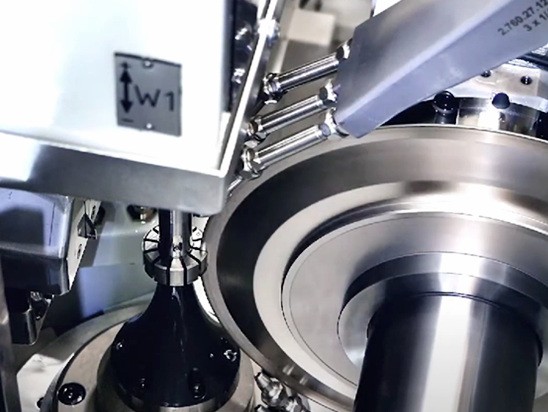

This kind of products are mainly matched with imported and domestic CNC groove grinding machine tools, by the inner hole and machine spindle, flange locking, grinding groove processing.

 Application fileds :

* Steering Pump Rotor Slot Grinding

* Rotary Compressor Rotor Slot Grinding

* Vane Pump Rotor Slot Grinding

rotor rotor slot grinding



Features of vitrified CBN grinding wheel for rotor:

* Good shape retention

* Long service life

* CBN grinding wheel to directly slotting on the rotor, or grinding the slot to the required shape and size

* High precision and efficiency of workpiece processing

* Low dressing frequency

Drawing&Specification

Drawing

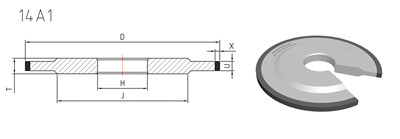

14A1 vitrified CBN grindng wheel

D(mm)

T(mm)

H(mm)

X(mm)

U(mm)

203

0.9

127

3/5/6

1.2

210

12

32

3/5/7

1.4/1.7

250

10

152.4

3/5/10

1.2

300

15

127

5/10

2.4

350

20

127

3/5/10

2.9

357

15

203.2

3/5/10

1.2/1.4/1.7

360

16

203

3/5/10

1.6

400

15

203

3/5/7

1.2/1.6

All size can customize according to your requirements
