CBN grinding wheels for band saw blades
Diameter: 127mm (5 inch), 150mm (6 inch) , 203mm (8 inch)
Inner Hole: 12.7 mm, 20 mm, 25.4 mm or 31.75 mm
Electroplated (galvanic)CBN profile grinding wheels
Cutting Tool Industry
Diamond Jewelry Industry
Automotive Industry
Bearing Industry
Woodworking Industry
Thermal Spray Coating Industry
Glass Industry
Oil&GAS Industry
LED & Semiconductor Industry
Medical Industry
Aviation and Turbine Industry
Dressing Tools
Diamond & CBN Grinding Wheels
Honing Tools
End Surface Grinding

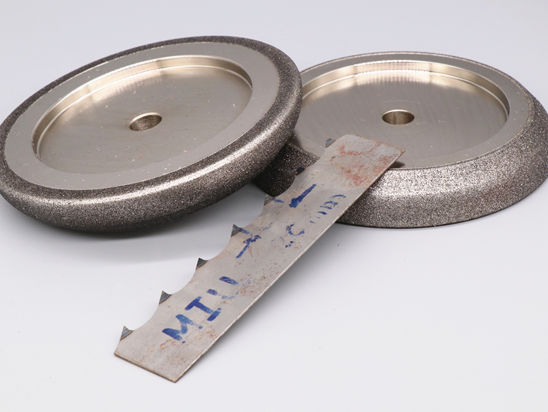

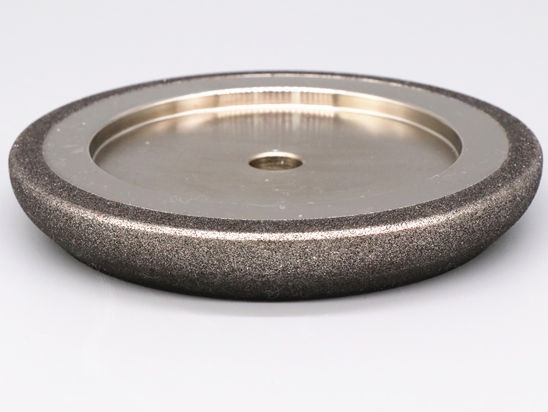

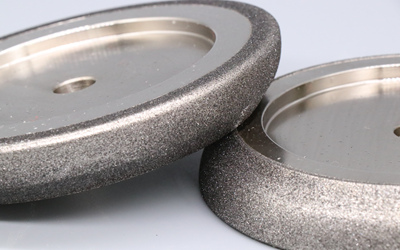

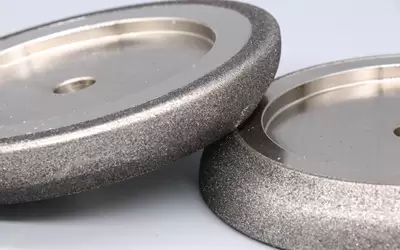

Electroplated (galvanic)CBN profile grinding wheels are used for sharpening high-alloy bandsaw.

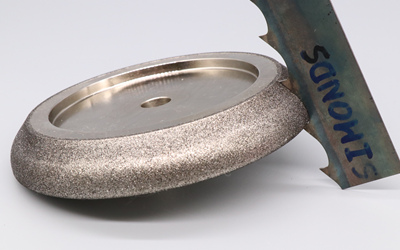

CBN grinding wheels are commonly used to process band saws brands, including Wood-Mizer, Timberwolf, Simonds, Kasco, Morse, Lenox, Dakin Flathers/Ripper 37 and others.
Different wheel profiles for all kind of wood and seasons are available
* 10/30 - mostly used universal grinding wheel profile
* 9/29 - perfectly prepares band saws for winter time cutting, or cutting hard Wood
* 13/29 - wheel profile which prepares band saws for soft wood cutting
* 4/32 - wheel profile which can prepare band saws for very frozen and very hard wood cutting
* 7/34 the CBN wheels profile is recommended for hardwood

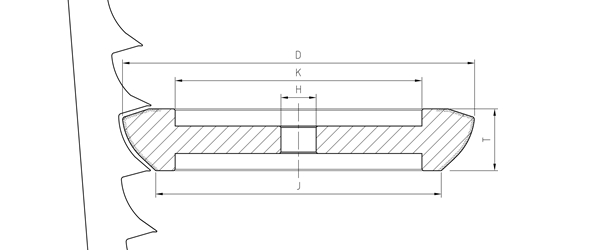

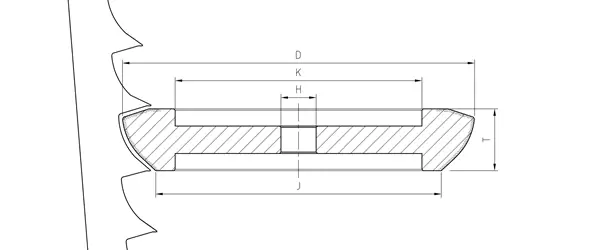

The drawing of CBN grinding wheels (galvanic wheels) for band saw blades
Outside diameter |
Bore diameter |
||
inch |
mm |
inch |
mm |
5 |
127 |
1/ 2 |
12.7 |
6 |
150 |
25/32 |
20 |
8 |
203 |
1, 1 1/4 |
25.4, 32 |
Special size can be produce according to the band saw profile. |
