Grinding Mode

Vitrified Diamond Surface Grinding WheelVitrified Diamond Surface Grinding WheelVitrified Diamond Surface Grinding Wheel
Vitrified Diamond Surface Grinding WheelVitrified Diamond Surface Grinding WheelVitrified Diamond Surface Grinding Wheel

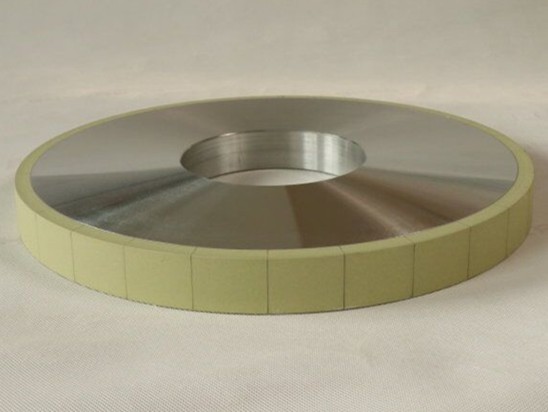

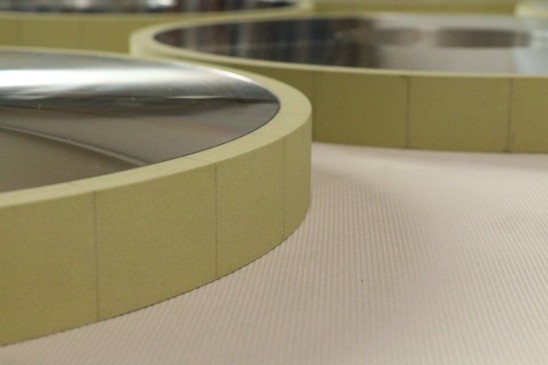

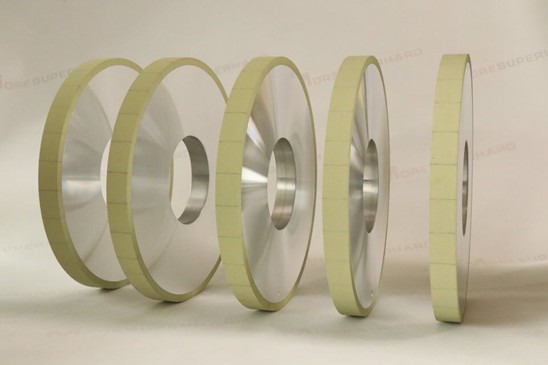

Vitrified Diamond Surface Grinding Wheel

Surface grinding is used to produce a smooth finish on flat surfaces.

Surface grinding Wheel is used on surface grinder, and grinding with the cylindrical plane and the end plane of the grinding wheel.

Product Details

What is Surface Grinding?

Surface Grinding is a manufacturing process which moves or grinding wheel relative a surface in a plane while a grinding wheel contacts the surface and removes a minute amount of material, such that a flat surface is created. The term surface grinding designates any process which accurately processes or grinds a surface. Surface grinding is the most common of the grinding operations. It is a finishing process that uses a rotating abrasive wheel to smooth the flat surface of metallic or nonmetallic materials to give them a more refined look by removing the oxide layer and impurities on work piece surfaces. This will also attain a desired surface for a functional purpose.

More Super Hard Products Co., Ltdsurface grinding

Surface grinding methods include: horizontal-spindle, horizontal spindle single disk,vertical-spindle rotary grinding,vertical-spindle,and vertical swivel head grinding,.

 Horizontal-spindle reciprocating table surface grindingHorizontal-spindle rotary table surface grindingVertical-spindle rotary table surface grinding

Vertical-spindle swivel head surface grindingVertical-spindle reciprocating table surface grinding

The Surface Grinding Wheel is used on surface grinder,  and suitable for grinding hardened parts with parallel planes, high-precision stamping dies, daily high-precision parts, such as rolling bearing rings, piston rings, etc. The degree of flatness that can be achieved by plane  grinding is generally 6~5, and the plane roughness can reach Ra1.0~0.2μm.. In addition to grinding the plane of the workpiece, it is also to grinding more planes such as grooves, slits and dovetail grooves. During the machining process, the workpiece is not rotated, only horizontal movement along the shaft, grinding the excess allowance with grinding wheel.

Process parameters for grinding stainless steel with plane grinding machine

(1) Plane grinding wheel speed.

When grinding stainless steel, a higher grinding wheel speed should be used; it has been proved that the grinding wheel speed of grinding stainless steel is not more than 25m/s.

(2) Workpiece speed.

The workpiece speed uw should change with the grinding wheel speed us. The basic principle is that us is low and uw is also low. When us is increased, uw is also increased. Generally speaking, the ratio of workpiece speed uw to grinding wheel speed us can be selected at 1/60~ Within the 1/100 range.

(3) Grinding depth ap

When grinding stainless steel, if the grinding depth is too small, grinding burns are likely to occur and grinding and scratching occur.

When rough grinding, generally take ap = 0.02 ~ 0.05mm; when fine grinding, generally take ap = 0.01mm.

(4) Feed rate

The lateral feed amount af (mm/str) in plane grinding is generally calculated by the wheel width bs.

(5) Grinding allowance

When surface grinding, if the workpiece with small area with good rigidity and not easy to deform, the single-side grinding allowance can be taken as 0.15~0.20mm; for a workpiece with large area and poor rigidity, the single-side grinding allowance can be taken by 0.20--0.25mm.

Case of Surface grinding

Case 1: Powder metallurgy inner rotor double face grinding

1. Introduction to powder metallurgy inner rotor:

The workpiece is powder inner rotor material of powder metallurgy, the size is Diameter 71.8mm x height 19.2mm.

2, powder metallurgy inner rotor grinding results:

Parallelism/flatness 0.006 mm; verticality 0.02 mm; roughness Ra 0.8 μm; thickness tolerance ± 0.01 mm; stock removal 0.1 mm.

Case 2: Double end grinding of groove grinding base body

1. Introduction to the groove grinding body:

The body material is alloy steel, hardness HRC40, outer diameter size OD93 x ID15 x T2.8mm.

2. Grinding base grinding results:

Parallelism/flatness 0.002 mm; roughness Ra 0.4 μm; grinding amount 0.04 mm.





Drawing&Specification
