Vitrified CBN Grinding Wheels Lapping Plates

November 10, 2019

Double Disc Grinding Wheel for roughing and finishing
Vitrified CBN Grinding Wheels Lapping Plates

CBN Double Side Lapping Disc is designed for both sides to face grinding operation which results in precise surface finish, flatness as well as parallelism in shorter cycle time.
The components are located in cages and rotate in a planetary motion between the two CBN wheels until the desired dimension is achieved. This principle enables a better surface finish and maximum precision with regard to dimensional tolerance.

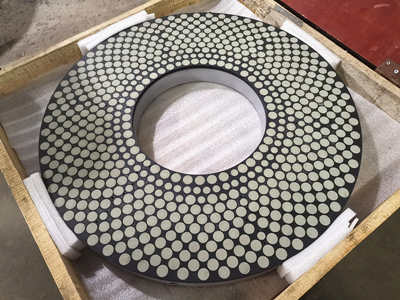

Vitrified CBN Grinding Wheels Lapping Plates are supplied with configurations comprised of round, square or hexagonal pellets applied to steel back up wheels.

Features:
High grinding efficiency
High wear resistance
High grinding force, low grinding temperature
High workpiece accuracy, good surface quality, and flatness.
Application:
Vitrified CBN: HSS, Bearing steel, Tool steel, Stainless steel, Powder Metallurgy, and Cast Iron.
Typical workpieces: Air-conditioner & Refrigerator compressor valve plate, Precision bearing end face, Piston ring, Gasket, Vane pump stator & rotor, vane end face.
Machines: AM, STAHLI, Peter Wolters, Lapmaster, Engis.
