Carbide HVOF coated cylindrical external grinding

December 05, 2019
Carbide HVOF coated cylindrical external grinding
Carbide HVOF coated cylindrical external grinding

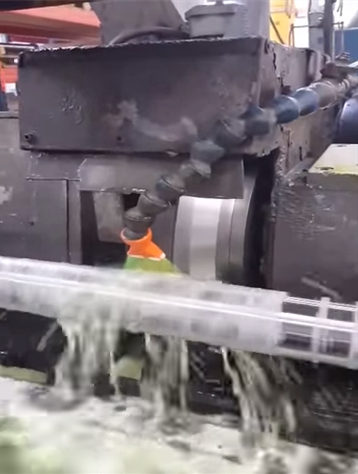

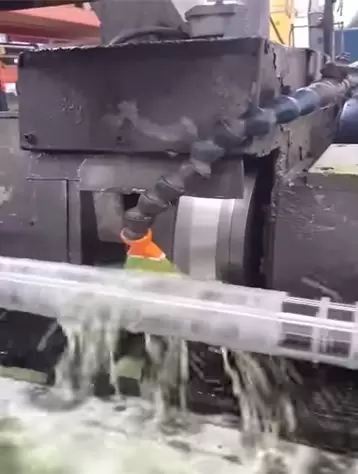

Application : HVOF coated cylindrical external grinding

Wheel sizes: 3A1 Ø500-30T-20U-6X-400J-203 H7

Machine: GER

Coolant: Water

Wheel speed: 30M/S

Work-piece speed: 60 100rpm

Work-piece : Cylinder Ø150 x 800mm

Material: Carbide with ceramic coated

Hardness: 70HRC

Stock removal: 0,05-0.1mm/Ø

Roughness achieved: 0,4 Ra

Specification Diamond wheel used: D126 C100

Results: Time process reduced about 80% compared with usual grinding wheel


TAG:   cylindrical external grinding
